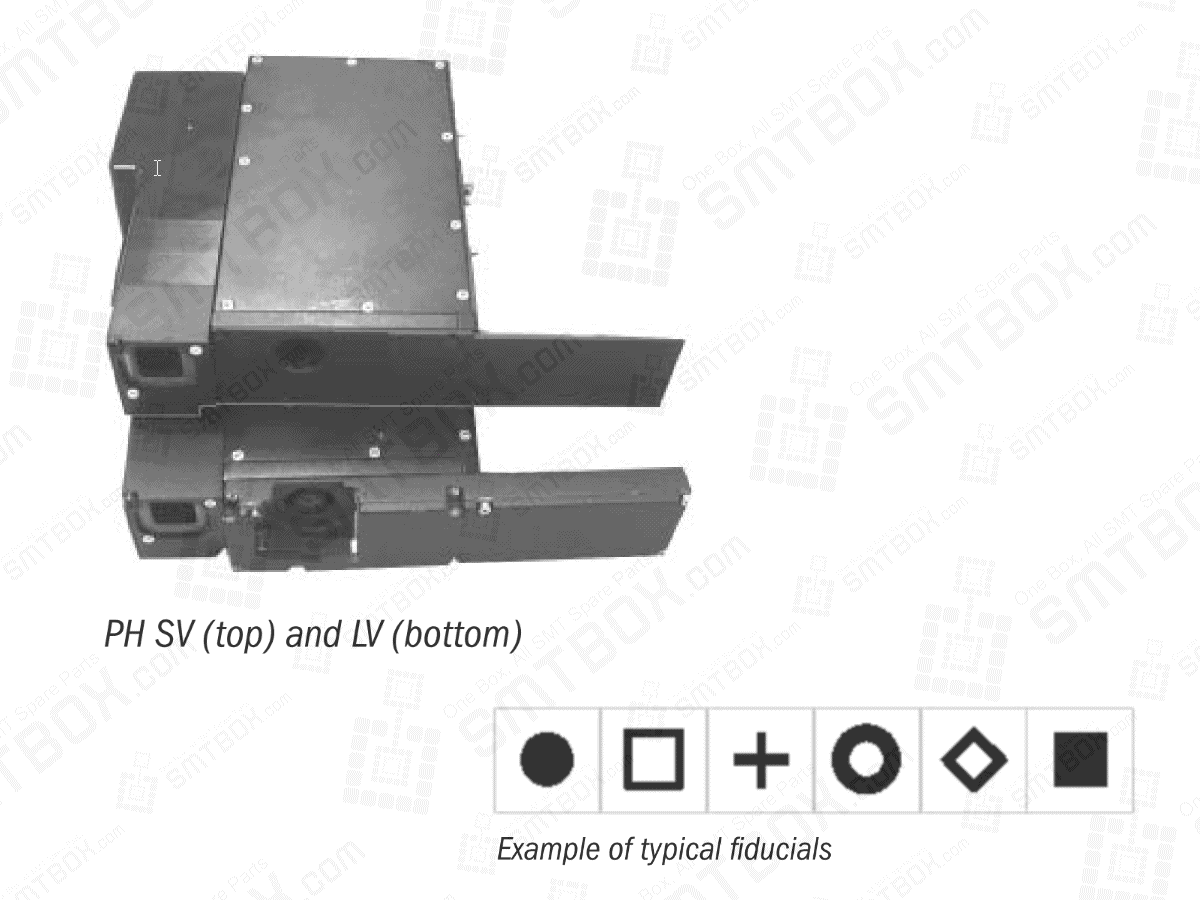

For the CPR only one placement head is available (PH-LV) while the SPR and TPR can be equipped with two different placement heads (PH-LV, PH-SV). The placement heads execute the following tasks: Align component Pick and place components Z-Movement Rz Movement Force sensing control Board and component thickness variation correction Component presence check Board alignment […]
Category Archives: SMT Machines MRO
30
Oct
Oct
There are three types of placement robots. The machine base and the output requirement of the customer determines the amount of robot types that will be configured. The three robot types are the following: 1. Compact Placement Robot (CPR): Each trolley segment holds up to 4 CPR’s. 2. Standard Placement Robot (SPR): This robot is […]
There are several methods for resupplying parts during production. The first uses dynamic alternate feeders to resupply parts for feeder. The second method is to splice the new tape and old tape together before the feeder runs out of parts. The third method available for feeders is simply waiting for the feeder to run out […]
23
Oct
Oct

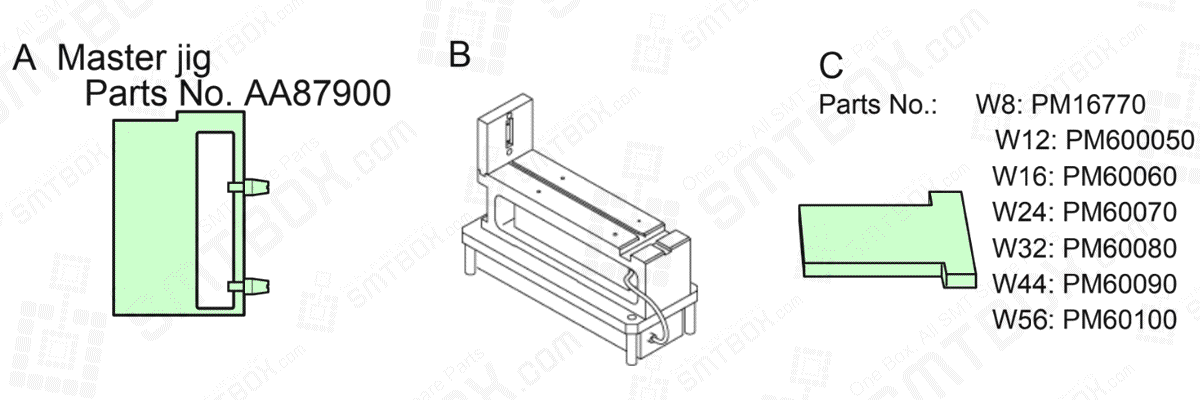

[Inspection Contents] Adjusting the feeder height by the eccentric pin. For a measurement, use following A jig: Master jig Parts No. AA87900, B jig, C jig: Parts No.: W8: PM16770 W12: PM600050 W16: PM60060 W24: PM60070 W32: PM60080 W44: PM60090 W56: PM60100 and a dial gage. [Tolerance] The difference between the Jig A reference surface […]
Alarm Display: A.bF0 A.bF1 A.bF2 A.bF3 A.bF4. Alarm Name: System Alarm 0 1 2 3 4 Situation at Alarm Occurrence: Occurred when the control power supply was turned ON. Cause: A SERVOPACK board fault occurred.Corrective Actions: Replace the SERVOPACK.
21
Oct
Oct
#1. P/N: AM03-020451A | Part Name: Feeder Base Board 1Slot | Standard: 1 Slot Board #2. P/N: GD03-000023A | Part Name: Install Guide #3. P/N: J7066040A | Part Name: Toggle Spring #4. P/N: AM03-018988A | Part Name: Master Tape 8Mm Assy | Standard: SME 8mm Master Tape #5. P/N: EP02-001075 | Part Name: 5Pin2Usb Cable […]
20
Oct
Oct
#1 P/N: FC28-000168 | Part name: Rubber Leg | Qty: 4 #2 P/N: FC15-004764B | Part name: Panel Edge | Qty: 1 #3 P/N: FC14-002137 | Part name: Usb2Usb Holder | Qty: 2 #4 P/N: FC28-000180 | Part name: Knob | Qty: 2 #5 P/N: FC05-001195B | Part name: Base-C | Qty: 1 #6 P/N: […]
19
Oct
Oct
Direction with New Packaging The packaging is changed to a new packaging in which the part is rotated 90 degrees Using the same settings from the previous example, once packaging with the part rotated 90° degrees was used, the machines correctly placed the parts. Direction is used when the part orientation in the packaging is […]
Alarm Display: A.b31 A.b32 A.b33 Alarm Name: Current Detection Error 1/2/3 Situation at Alarm Occurrence: Occurred when the control power supply was turned ON or during operation. Cause: The current detection circuit for the Phase U is faulty. The current detection circuit for the Phase V is faulty. Corrective Actions: Replace the SERVOPACK. Cause: The […]
Alarm Display: A.8A2 Alarm Name: Fully-closed Serial Encoder Sensor Error (Incremental) 1. Situation at Alarm Occurrence: Occurred when the control power supply was turned ON or during operation. Cause: A linear encoder fault occurred.Corrective Actions: Replace the linear encoder.
