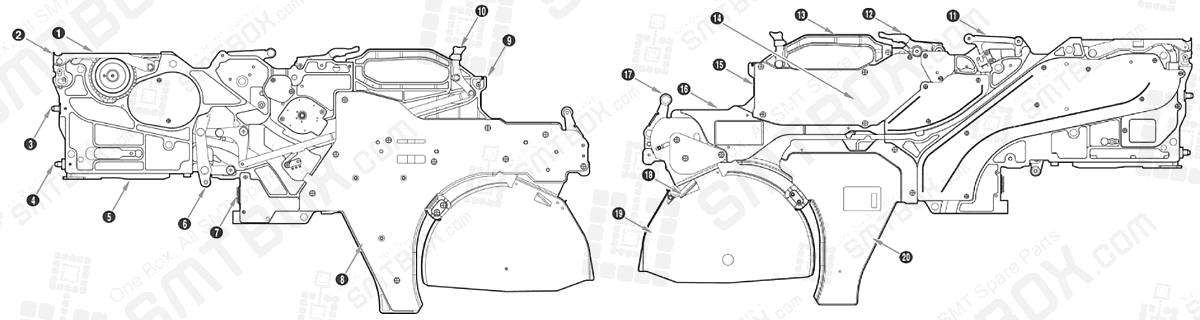

Figure 1.1 Configuration of SME 8mm tape feeder
#1 Part Name: Tape Guide
#2 Part Name: Locker
#3 Part Name: X Eccentric Pin
#4 Part Name: Location Flange
#5 Part Name: Installation Guide
#6 Part Name: Clamping Roller
#7 Part Name: Probe Pin
#8 Part Name: Reel Plate
#9 Part Name: Vinyl Cutter
#10 Part Name: Clamp Lever
#11 Part Name: Drain Tensioner
#12 Part Name: Drain Handle
#13 Part Name: Handle
#14 Part Name: Vinyl Box
#15 Part Name: Vinyl Box Door
#16 Part Name: UI Button
#17 Part Name: Reel Lever
#18 Part Name: Reel Brake
#19 Part Name: Reel Hanger
#20 Part Name: PCB Cover

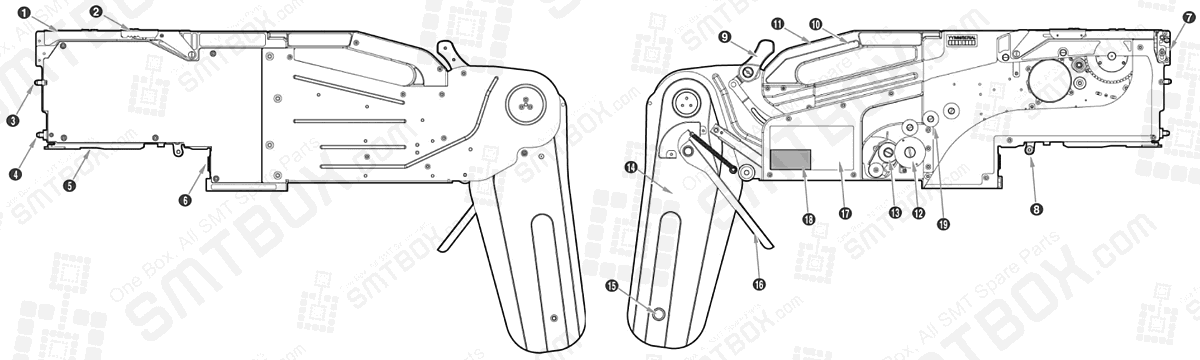

Figure 1.2 Configuration of SME 12/16/24/ 32/44/56mm tape feeder
#1 Part Name: Tape Guide
#2 Part Name: Vinyl Moving Cover
#3 Part Name: Location Pin
#4 Part Name: Location Flange
#5 Part Name: Installation Guide
#6 Part Name: Probe Pin
#7 Part Name: Locker
#8 Part Name: Clamping Roller
#9 Part Name: Clamp Lever
#10 Part Name: Handle
#11 Part Name: Switch
#12 Part Name: Vinyl Discharge Roller
#13 Part Name: Vinyl Gear
#14 Part Name: Reel Arm Plate
#15 Part Name: Reel Arm Post
#16 Part Name: Reel Brake
#17 Part Name: Board Cover
#18 Part Name: Serial Number Sticker
#19 Part Name: Vinyl Guide Roller
