Minor and Major Maintenance for ASM Siplace X Series Machines

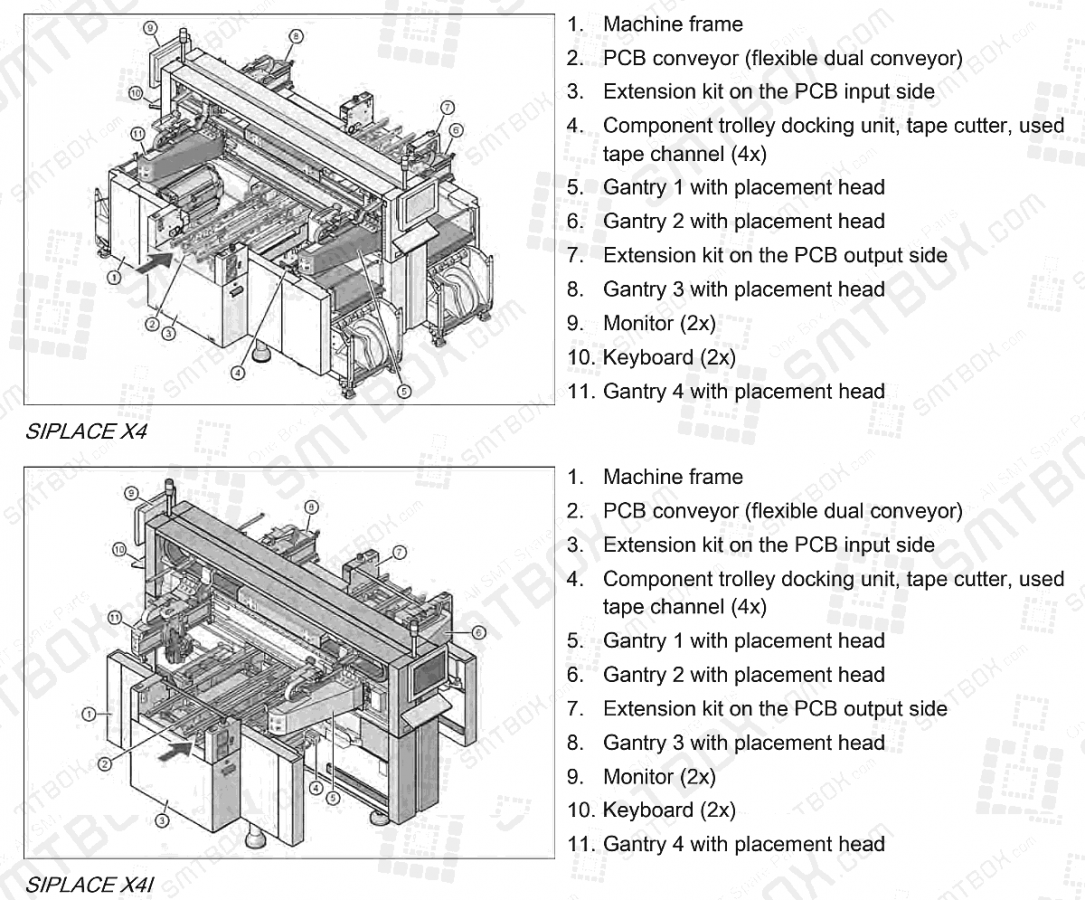

X4: 1. Machine frame 2. PCB conveyor (flexible dual conveyor) 3. Extension kit on the PCB input side 4. Component trolley docking unit, tape cutter, used tape channel (4x) 5. Gantry 1 with placement head 6. Gantry 2 with placement head 7. Extension kit on the PCB output side 8. Gantry 3 with placement head 9. Monitor (2x) 10. Keyboard (2x) 11. Gantry 4 with placement head. X4L: 1. Machine frame 2. PCB conveyor (flexible dual conveyor) 3. Extension kit on the PCB input side 4. Component trolley docking unit, tape cutter, used tape channel (4x) 5. Gantry 1 with placement head 6. Gantry 2 with placement head 7. Extension kit on the PCB output side 8. Gantry 3 with placement head 9. Monitor (2x) 10. Keyboard (2x) 11. Gantry 4 with placement head.
25
Aug

Note: 3 Consumables, Spare and Wear Parts, Tools:
The following lists contain all necessary consumable materials, wear and spare parts plus tools for performing maintenance tasks to the machine and placement heads.

For maintenance work to the SIPLACE X series we recommend using the “Service box for X and SX series [03079042-xx]”.

Consumables:

#1. OIL Interflon Fin Super (Teflon oil) | P/N: 03017760-xx

#2. SIPLACE cleansing tissue | P/N: 00315253-xx

#3. KlĂĽberplex BEM 34-132 grease | P/N: 00374565-xx

#4. Protective latex gloves | P/N: 00372972-xx

#5. Rust prevention spray WD40, 400 ml | P/N: 00325833-xx

#6. Sheet of DIN A4 paper and adhesive tape

#7. Lint-free cloth, KM wipe | P/N: 03082092-xx

#8. Microfiber cloth for cleaning optical assemblies

#9 Ethanol

Wear parts:

#1. Filter element 40 ÎĽm | P/N: 03003717-xx

#2. Filter element 5 ÎĽm | P/N: 03050213-xx | Remarks: HSxx / D1 / D2 / D4 / SX series / X series from March 2008 pneumatic valve [03062274-xx] (for [03060279-xx] pneumatic unit)

#3. Replacement filter for 5 ÎĽm compressed air filter for pneumatic valve | P/N: 03038979-xx X series up to SN B089 [03004680-xx] (for [03004151-xx] pneumatic unit)

#4. Filter element for 5 ÎĽm filter (new) for pneumatic valve | P/N: 03039182-xx | Remarks: X series from SN B090 [03038691-xx] (for [03038058-xx] pneumatic unit)

#5. Fan unit for intake air filter | P/N: 00376006-xx

#6. Felt filter RFF-92-10 (92×92 mm) (for size supplied: 1000x1500x10 mm or air filter for Y axis (120×120 mm) | P/N: 03006574-xx 03053286-xx

#7. Filter unit | P/N: 03003425-xx

#8. SIPLACE X4I only: Y axis air filter for 120 mm fan (for protective cover) | P/N: 03053286-xx

Tools:

#1. ESD wriststrap TYP.OK/WRS | P/N: 00320279-xx

#2. Set of Phillips screwdrivers

#3. SIPLACE OPERATOR KIT | P/N: 00349303-xx

#4. Scissors | P/N: 00378524-xx

#5. Brush | P/N: 00378523-xx

#6. Tweezers | P/N: 00378525-xx

#7. Electronic screwdriver, Phillips | P/N: 00378527-xx

#8. Electronic screwdriver, slotted | P/N: 00378526-xx

#9. Vacuum cleaner

#10. Waste bin

#11. Oil stone / Elasto abrasive cleaning agent

#12. Grease gun with nozzle for X axis (volume applied: approx.0.13 g) | P/N: 00374564-xx X

#13. Grease gun with hose for Y axis (volume applied: approx.0.4 g) | P/N: 00374563-xx X

#14. A high-precision set of scales (recommended minimum measuring accuracy: 1 g)

Spare parts:

#1. Gas spring 560N (for hood over 2 gantries) | P/N: 03036763-xx

#2. Gas spring 510 N (for hood over 1 gantry) | P/N: 03039170-xx
