Tape to be used/reel diameter/feed pitch/number of occupied slots according to feeder types
Table1.1 Types of feeder, width of the tape, and feed pitch

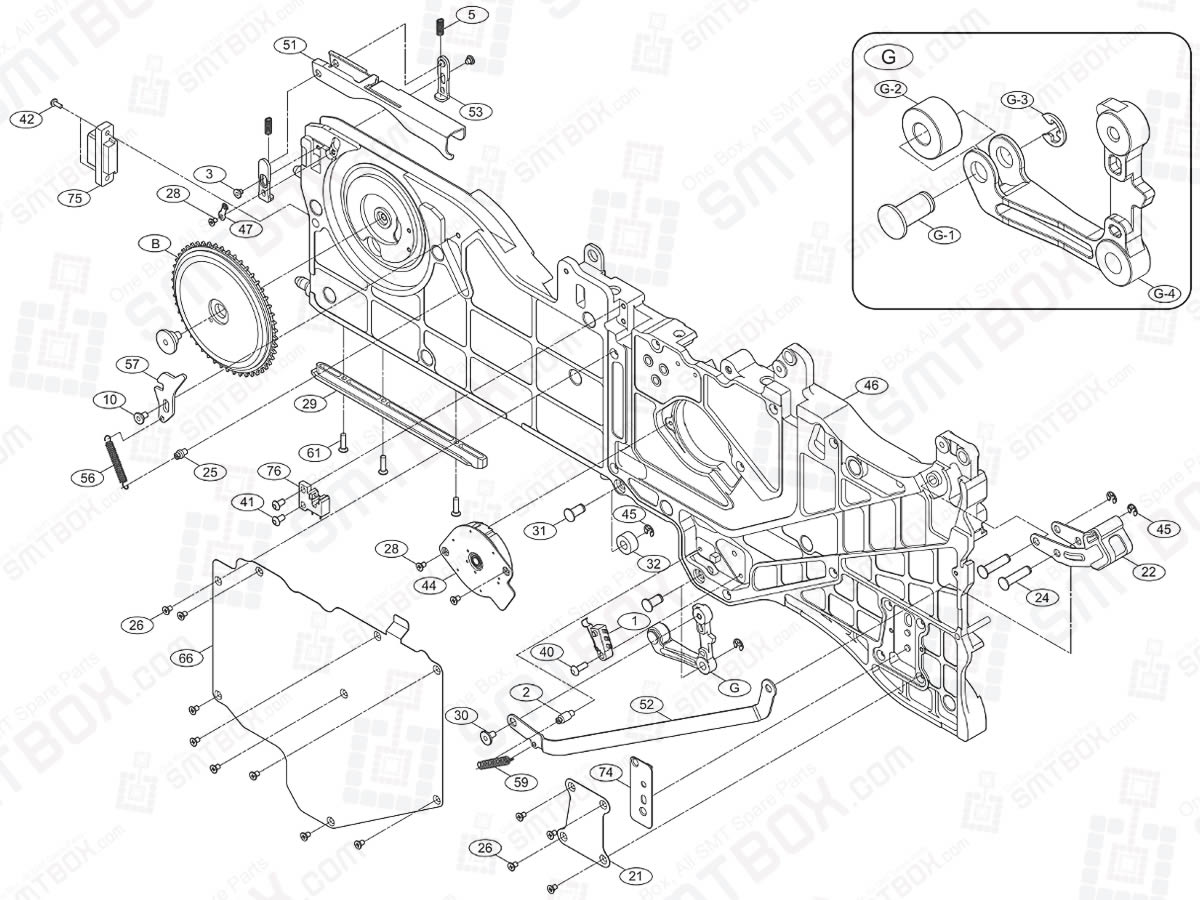

| Type of Feeder [1] | Width of the tape(mm) | Feed Pitch (mm) | Reel Diameter (mm) | Number of occupied Slots |
| SME 8mm Tape Feeder | 8 | 2, 4 | ф178~180 | 1 |
| SME 8mm Tape Feeder (L) | 8 | 2, 4 | ф178~330 | 2 [2] |
| SME 12mm Tape Feeder | 12 | 4, 8, 12,16, 20, 24,28, 32, 36,40, 44 [3] | ф178~380 | 2 |
| SME 16mm Tape Feeder | 16 | 2 | ||
| SME 24mm Tape Feeder | 24 | 3 | ||
| SME 32mm Tape Feeder | 32 | 4 | ||
| SME 44mm Tape Feeder | 44 | 4 | ||
| SME 56mm Tape Feeder | 56 | 5 |
Note:
[1] Addition options including IT function and splicing detection function are available for each feeder type. [2] For the 8mm large reel, it is possible to have the feeder occupy only one slot if its outermost width is less than 13mm. [3] The actual part feed pitch of feeders larger than 12mm may be limited by the length in the part supply direction and reel pocket depth. For further details regarding this, contact our CS company (STS) and local agent after checking the corresponding dimension information.
