3.2 Minor and Major Maintenance for ASM Siplace CPP, C&P6/12, C&P20A and TwinHead

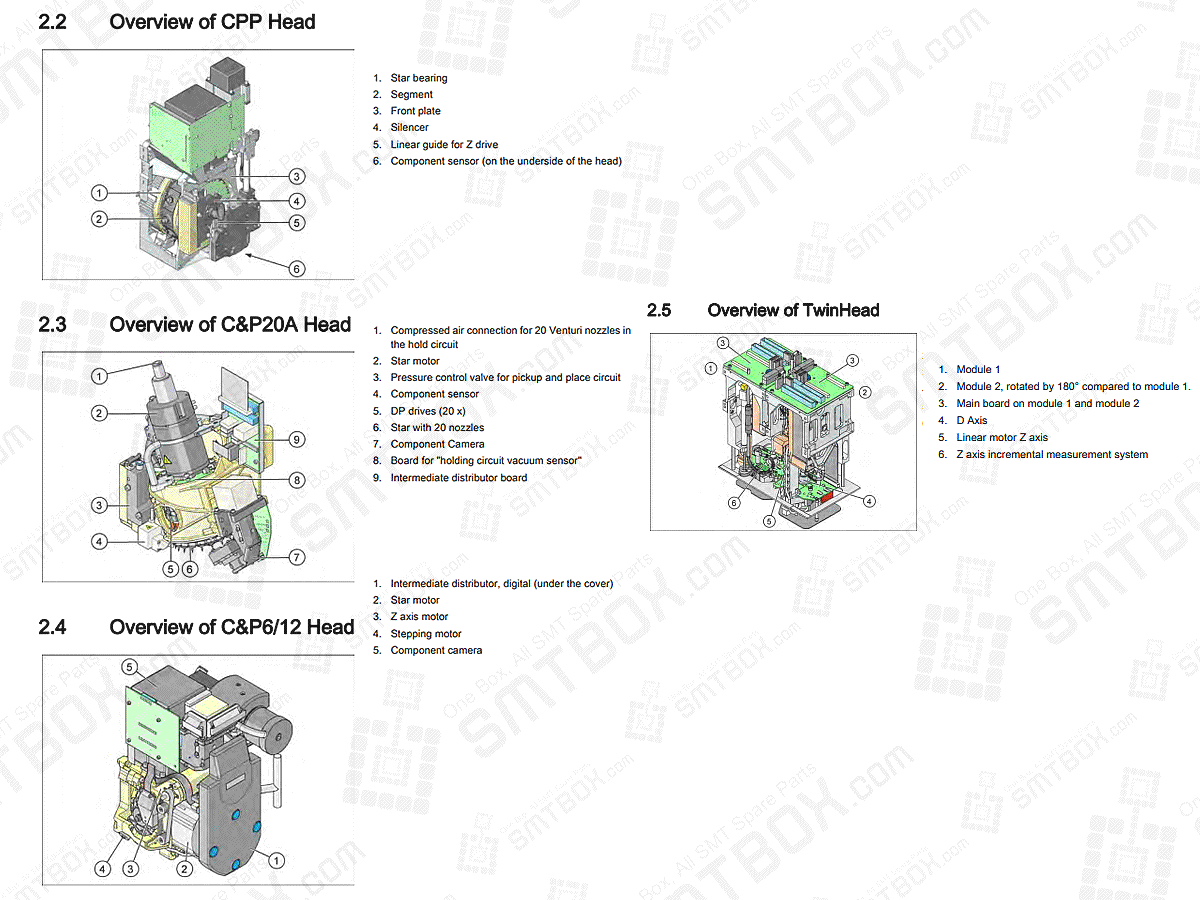

Overview For Asm Siplace Cpp CP6 12 CP20A Twinhead
28
Aug

For maintenance work performed on the TwinHead, CPP and C&P20(A) heads we recommend using the “Starter kit for CPx and TwinHead maintenance” [03071171-03].

We also recommend using additional multipettes [03078989-xx], so that the combitips do not need to be changed when lubricating multiple heads.

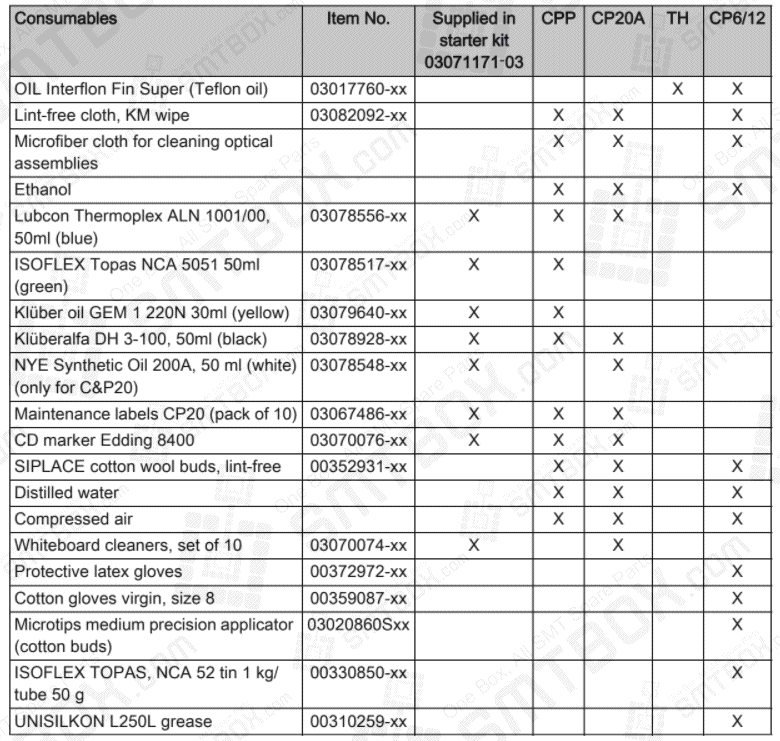

Consumables:

OIL Interflon Fin Super (Teflon oil) 03017760-xx | Lint-free cloth, KM wipe 03082092-xx | Microfiber cloth for cleaning optical assemblies Ethanol Lubcon Thermoplex ALN 1001/00, 50ml (blue) 03078556-xx | ISOFLEX Topas NCA 5051 50ml (green) 03078517-xx | Klüber oil GEM 1 220N 30ml (yellow) 03079640-xx | Klüberalfa DH 3-100, 50ml (black) 03078928-xx | NYE Synthetic Oil 200A, 50 ml (white) (only for C&P20) | CD marker Edding 8400 03070076-xx | SIPLACE cotton wool buds, lint-free 00352931-xx | Distilled water | Compressed air Whiteboard cleaners, set of 10 03070074-xx | Protective latex gloves 00372972-xx | Cotton gloves virgin, size 8 00359087-xx | Microtips medium precision applicator (cotton buds) 03020860Sxx | ISOFLEX TOPAS, NCA 52 tin 1 kg/tube 50 g 00330850-xx | UNISILKON L250L grease 00310259-xx

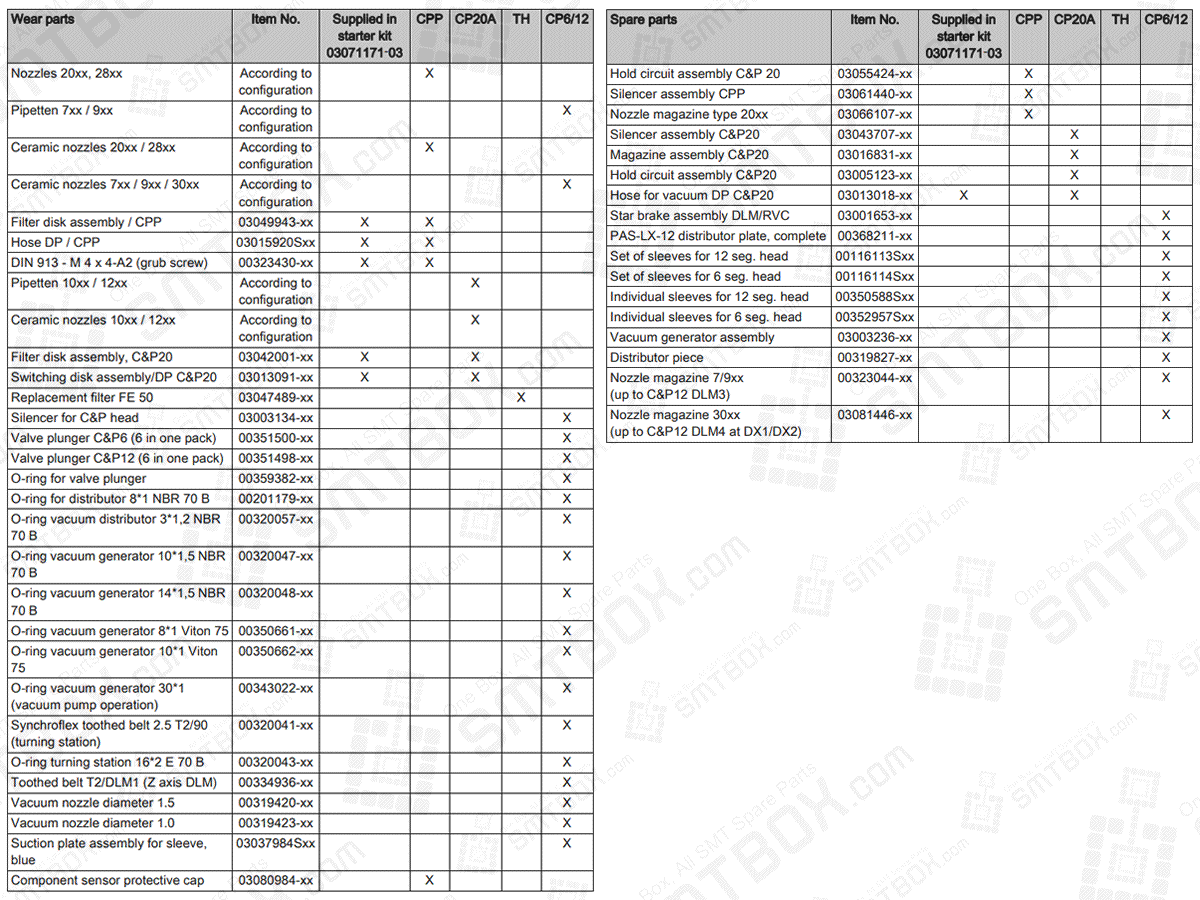

Wear Parts and Spare Parts:

Nozzles 20xx, 28xx | Pipetten 7xx / 9xx | Ceramic nozzles 20xx / 28xx | Ceramic nozzles 7xx / 9xx / 30xx | Filter disk assembly / CPP 03049943-xx | Hose DP / CPP 03015920Sxx | DIN 913 - M 4 4-A2 (grub screw) 00323430-xx | Pipetten 10xx / 12xx | Ceramic nozzles 10xx / 12xx | Filter disk assembly, C&P20 03042001-xx | Switching disk assembly/DP C&P20 03013091-xx | Replacement filter FE 50 03047489-xx | Silencer for C&P head 03003134-xx | Valve plunger C&P6 (6 in one pack) 00351500-xx | Valve plunger C&P12 (6 in one pack) 00351498-xx | O-ring for valve plunger 00359382-xx | O-ring for distributor 8*1 NBR 70 B 00201179-xx | O-ring vacuum distributor 3*1,2 NBR 70 B 00320057-xx | O-ring vacuum generator 10*1,5 NBR 70 B 00320047-xx | O-ring vacuum generator 14*1,5 NBR 70 B 00320048-xx | O-ring vacuum generator 8*1 Viton 75 00350661-xx | O-ring vacuum generator 10*1 Viton 75 00350662-xx | O-ring vacuum generator 30*1 (vacuum pump operation) 00343022-xx | Synchroflex toothed belt 2.5 T2/90 (turning station) 00320041-xx | O-ring turning station 16*2 E 70 B 00320043-xx | Toothed belt T2/DLM1 (Z axis DLM) 00334936-xx | Vacuum nozzle diameter 1.5 00319420-xx | Vacuum nozzle diameter 1.0 00319423-xx | Suction plate assembly for sleeve, blue 03037984Sxx | Component sensor protective cap 03080984-xx | Spare parts: Hold circuit assembly C&P 20 03055424-xx | Silencer assembly CPP 03061440-xx | Nozzle magazine type 20xx 03066107-xx | Silencer assembly C&P20 03043707-xx | Magazine assembly C&P20 03016831-xx | Hold circuit assembly C&P20 03005123-xx | Hose for vacuum DP C&P20 03013018-xx | Star brake assembly DLM/RVC 03001653-xx | PAS-LX-12 distributor plate, complete 00368211-xx | Set of sleeves for 12 seg. head 00116113Sxx | Set of sleeves for 6 seg. head 00116114Sxx | Individual sleeves for 12 seg. head 00350588Sxx | Individual sleeves for 6 seg. head 00352957Sxx | Vacuum generator assembly 03003236-xx | Distributor piece 00319827-xx | Nozzle magazine 7/9xx (up to C&P12 DLM3) 00323044-xx | Nozzle magazine 30xx (up to C&P12 DLM4 at DX1/DX2) 03081446-xx

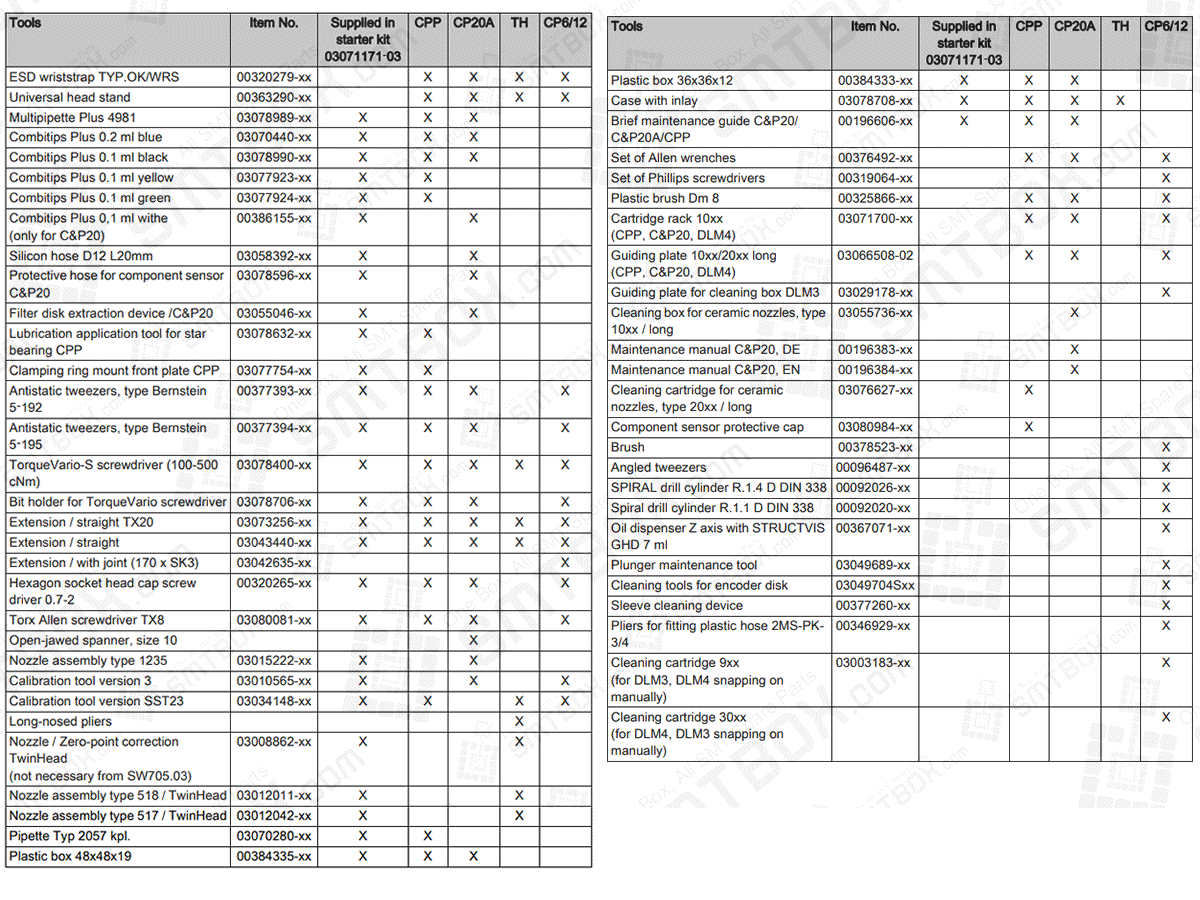

Tools:
ESD wriststrap TYP.OK/WRS 00320279-xx | Universal head stand 00363290-xx | Multipipette Plus 4981 03078989-xx | Combitips Plus 0.2 ml blue 03070440-xx | Combitips Plus 0.1 ml black 03078990-xx | Combitips Plus 0.1 ml yellow 03077923-xx | Combitips Plus 0.1 ml green 03077924-xx | Combitips Plus 0,1 ml withe (only for C&P20) 00386155-xx | Silicon hose D12 L20mm 03058392-xx | Protective hose for component sensor C&P20 03078596-xx | Filter disk extraction device /C&P20 03055046-xx | Lubrication application tool for star bearing CPP 03078632-xx | Clamping ring mount front plate CPP 03077754-xx | Antistatic tweezers, type Bernstein 5-192 00377393-xx | Antistatic tweezers, type Bernstein 5-195 00377394-xx | TorqueVario-S screwdriver (100-500cNm) 03078400-xx | Bit holder for TorqueVario screwdriver 03078706-xx | Extension / straight TX20 03073256-xx | Extension / straight 03043440-xx | Extension / with joint (170 | SK3) 03042635-xx | Hexagon socket head cap screw driver 0.7-2 00320265-xx | Torx Allen screwdriver TX8 03080081-xx | Open-jawed spanner, size 10 | Nozzle assembly type 1235 03015222-xx | Calibration tool version 3 03010565-xx | Calibration tool version SST23 03034148-xx | Long-nosed pliers Nozzle / Zero-point correction TwinHead (not necessary from SW705.03) 03008862-xx | Nozzle assembly type 518 / TwinHead 03012011-xx | Nozzle assembly type 517 / TwinHead 03012042-xx | Pipette Typ 2057 kpl. 03070280-xx | Plastic box 48x48x19 00384335-xx | Plastic box 36x36x12 00384333-xx | Case with inlay 03078708-xx | Brief maintenance guide C&P20/C&P20A/CPP 00196606-xx | Set of Allen wrenches 00376492-xx | Set of Phillips screwdrivers 00319064-xx | Plastic brush Dm 8 00325866-xx | Cartridge rack 10xx (CPP, C&P20, DLM4) 03071700-xx | Guiding plate 10xx/20xx long (CPP, C&P20, DLM4) 03066508-02 | Guiding plate for cleaning box DLM3 03029178-xx | Cleaning box for ceramic nozzles, type 10xx / long 03055736-xx | Maintenance manual C&P20, DE 00196383-xx | Maintenance manual C&P20, EN 00196384-xx | Cleaning cartridge for ceramic nozzles, type 20xx / long 03076627-xx | Component sensor protective cap 03080984-xx | Brush 00378523-xx | Angled tweezers 00096487-xx | SPIRAL drill cylinder R.1.4 D DIN 338 00092026-xx | Spiral drill cylinder R.1.1 D DIN 338 00092020-xx | Oil dispenser Z axis with STRUCTVIS GHD 7 ml 00367071-xx | Plunger maintenance tool 03049689-xx | Cleaning tools for encoder disk 03049704Sxx | Sleeve cleaning device 00377260-xx | Pliers for fitting plastic hose 2MS-PK-3/4 00346929-xx | Cleaning cartridge 9xx (for DLM3, DLM4 snapping on manually) 03003183-xx | Cleaning cartridge 30xx (for DLM4, DLM3 snapping on manually)
