The following example only applies to FujiCam, if using Fuji Flexa please read the section ìChecking CAD Zero Orientation in Fuji Flexa? found below. In FujiCam In this example, the three settings are: Direction: 0 Polarized: Yes Theta: 90° (Not used in Fuji Flexa) The only setting that has changed from the previous example is […]
Category Archives: SMT Machines MRO
13
Oct
Oct

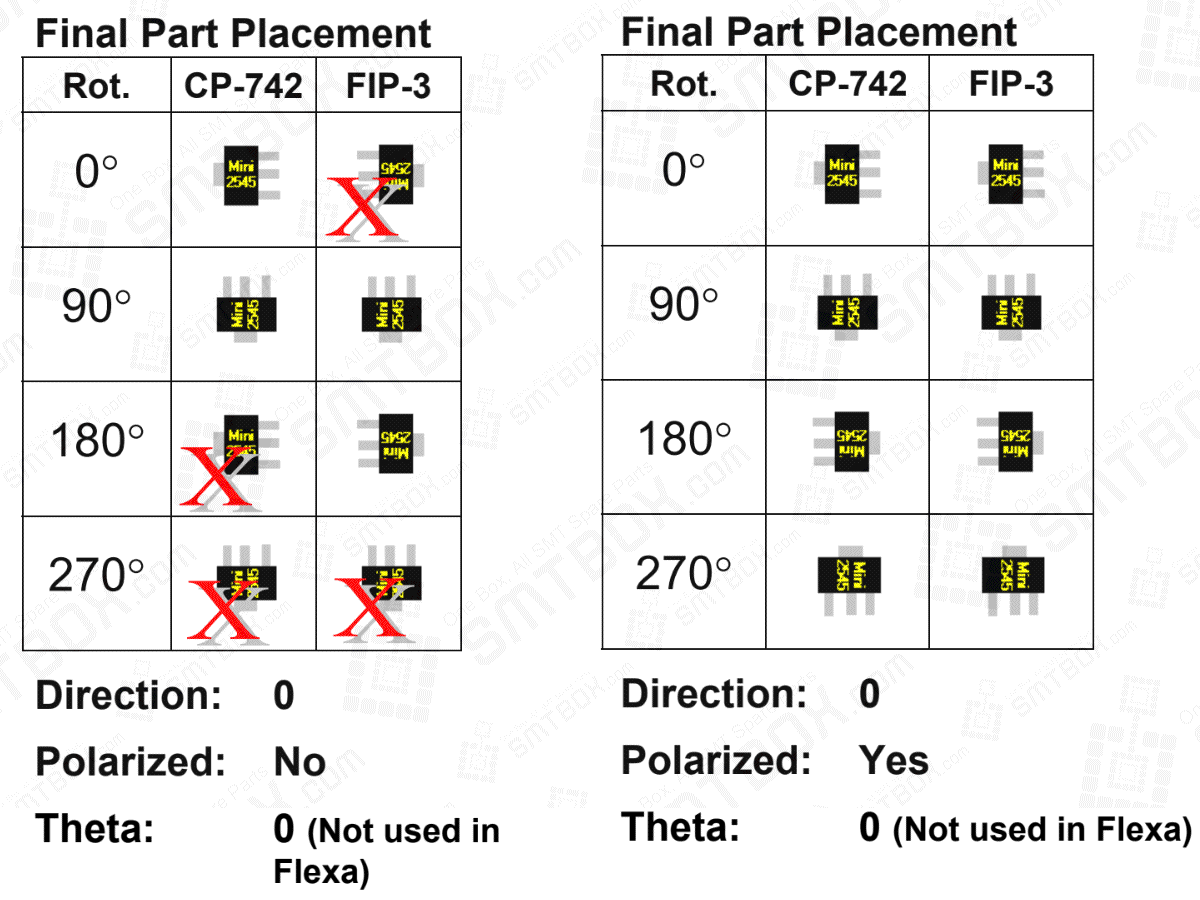

Written By Fuji Machine Manufacturing Co., Ltd. SMT Equipment Information Systems & Training No Polarity For the first example, the three settings are: Direction: 0 Polarized: No Theta: 0 (Not used in Fuji Flexa) In the table to the left, the actual part placement of the mini-molds by the two machines is shown with the […]
12
Oct
Oct
Written By Fuji Machine Manufacturing Co., Ltd. SMT Equipment Information Systems & Training This document explains the affects of direction, polarity, and theta on final part placement in the two host systems, Fuji Flexa and FujiCam. Direction and polarity are set in the part library (part number library if using relational mode in Fuji Flexa). […]
Alarm Display: A.8A1. Alarm Name: Fully-closed Serial Encoder Module Error. Situation at Alarm Occurrence: Occurred when the control power supply was turned ON or during operation. Cause: A linear encoder fault occurred. Corrective Actions: Replace the linear recorder. Cause: A scale converter unit fault occurred. Corrective Actions: Replace the serial converter unit.
Alarm Display: A.8A0. Alarm Name: Fully-closed Serial Encoder Scale Error. Situation at Alarm Occurrence: Occurred when the control power supply was turned ON or during operation. Cause: A linear encoder fault occurred. Corrective Actions: Replace the linear recorder.
Alarm Display: A880. Alarm Name: Fully-closed Serial Encoder Data Alarm. 1. Situation at Alarm Occurrence: Occurred when the control power supply was turned ON. Cause: A serial converter unit malfunctioned. Corrective Actions: Turn the SERVOPACK and serial converter unit power supplies OFF and then ON again. If this alarm occurs frequently replace the serial converter […]

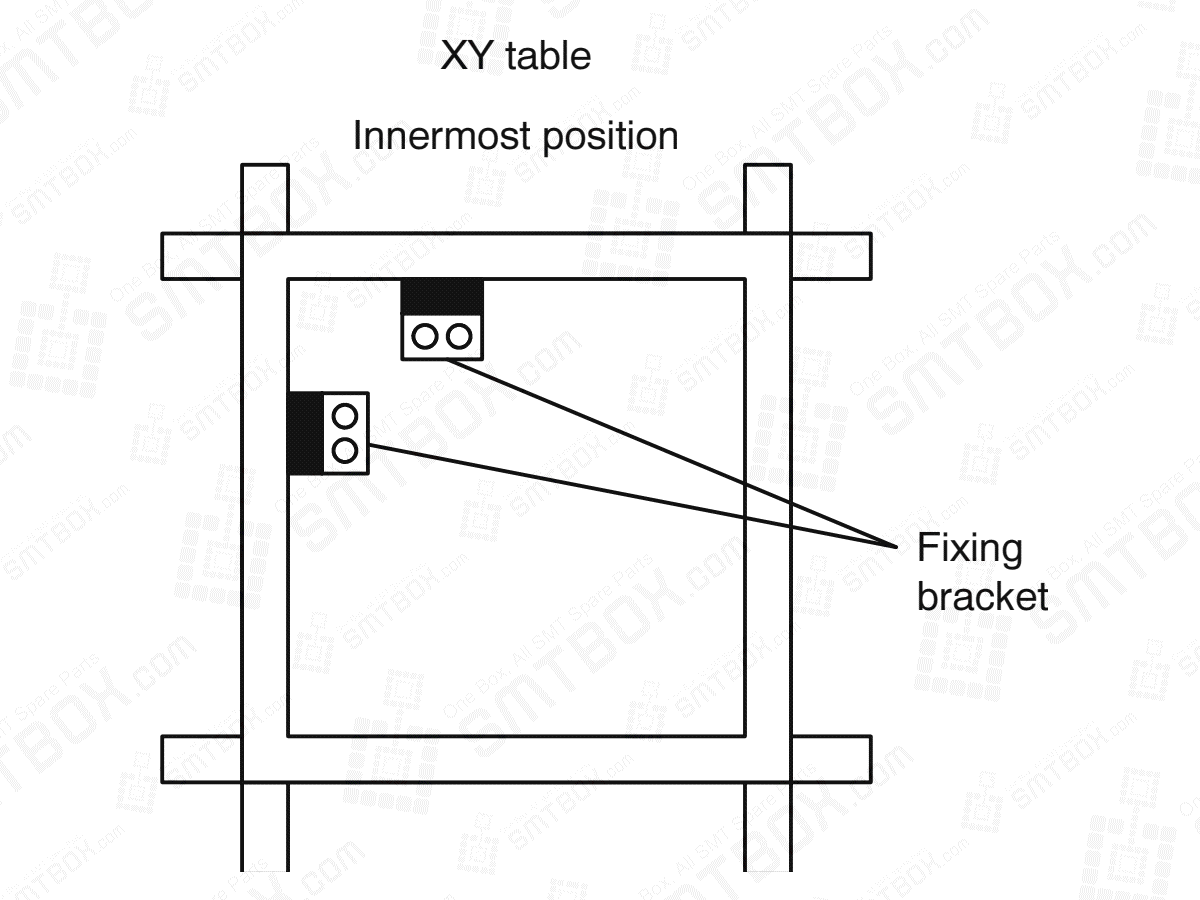

Procedure 1. Set machine main body accurately on the reference points. 2. Loosen lock nuts securing the adjust bolts. 3. Set the height from floor to the transfer belt surface between 900 to 910 mm. 4. Clean the top of the table with waste cloth to remove any foreign substance. Check X and Y directions […]
24
Sep
Sep
Here is the detailed information of Panasonic RHS2B NM-RA20A high speed radial lead component insertion machine. Machine Condition 1. With the supplier and forwarder, check the covers, etc. of the machine and the system equipment for any flaw, deformation or smear. Make sure they are in normal and proper condition. =REMARKS= If considerable flaw or […]
Alarm Display: A.870 Alarm Name: Fully-closed Serial Encoder Checksum Alarm 1. Situation at Alarm Occurrence: Occurred when the control power supply was turned ON or during operation. Cause: A serial converter unit fault occurred and was detected by self-diagnosis of serial converter unit. Corrective Actions: Set up the serial converter unit. If this alarm occurs […]
Alarm Display: A.860 Alarm Name: Encoder Overheated 1. Situation at Alarm Occurrence: Occurred when the control power supply was turned ON. Cause: An encoder fault occurred. Corrective Actions: Replace the servo motor. Cause: A SERVOPACK board fault occurred. Corrective Actions: Replace the SERVOPACK. 2. Situation at Alarm Occurrence: Occurred during operation. Cause: The ambient temperature […]
