1.2.2.2. Stage Vision Recognition System(For CP-45FV /45FS) Of 1.2.2. Applicable Component Sizes For 1.2. Applicable Components and Packages on Samsung CP-45F(V)/FS

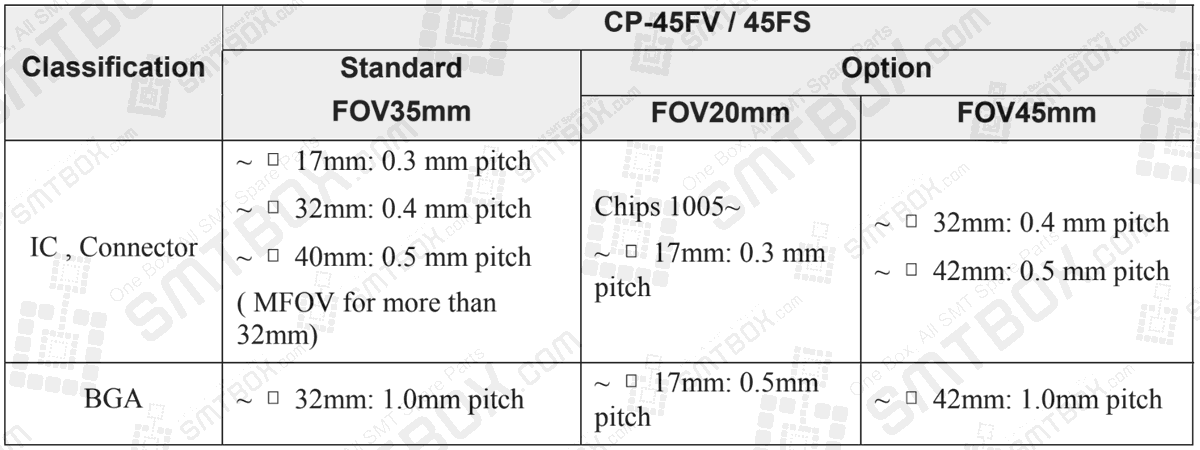

Table 1-3. Applicable Component Sizes (Vision Recognition System)

1. Classification: IC , Connector.

(1)Standard FOV35mm
17mm: 0.3 mm pitch
32mm: 0.4 mm pitch
40mm: 0.5 mm pitch
(MFOV for more than 32mm)

(2)Option FOV20mm
Chips 1005: 17mm: 0.3 mm pitch

(3)Option FOV45mm
32mm: 0.4 mm pitch
42mm: 0.5 mm pitch

2. Classification: BGA.

(1)Standard FOV35mm
32mm: 1.0mm pitch

(2)Option FOV20mm
17mm: 0.5 mm pitch

(3)Option FOV45mm
42mm: 1.0mm pitch
