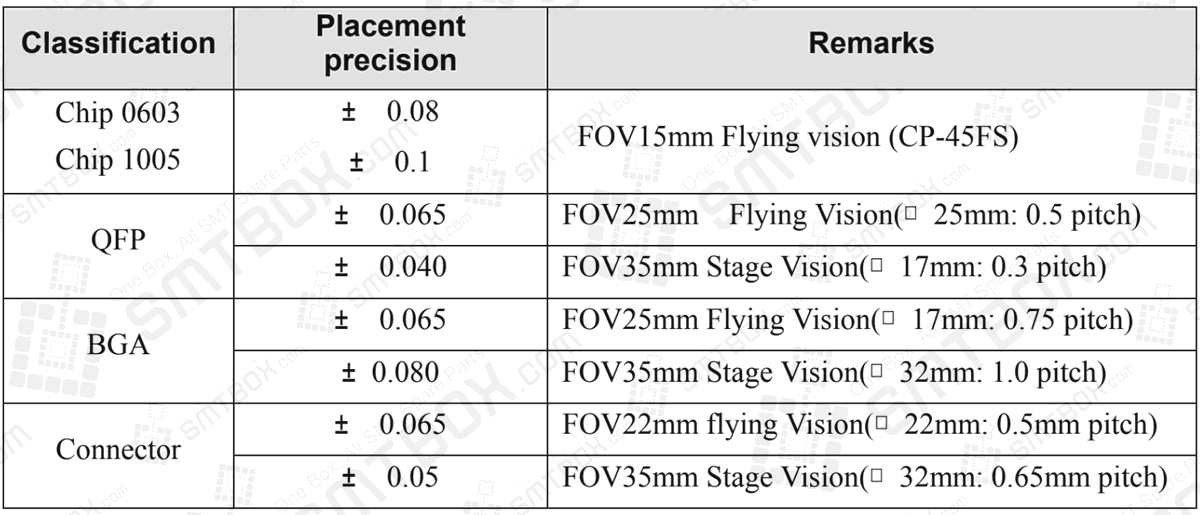

The placement precision for applicable components type is shown in Table 1-4, and is applicable to general components usage as well.
Table 1-4. The placement Precision
Classification: Chip 0603
Placement precision: ± 0.08 | Remarks: FOV15mmFlying vision (CP-45FS)
Classification: Chip 1005
Placement precision: ± 0.1 | Remarks: FOV15mm Flying vision (CP-45FS)
Classification: QFP
Placement precision: ± 0.065 | Remarks: FOV25mm Flying Vision(□ 25mm: 0.5 pitch)
Placement precision: ± 0.040 | Remarks: FOV35mm Stage Vision(□ 17mm: 0.3 pitch)
Classification: BGA
Placement precision: ± 0.065 | Remarks: FOV25mm Flying Vision(□ 17mm: 0.75 pitch)
Placement precision: ± 0.080 | Remarks: FOV35mm Stage Vision(□ 32mm: 1.0 pitch)
Classification: Connector
Placement precision: ± 0.065 | Remarks: FOV22mm flying Vision(□ 22mm: 0.5mm pitch)
Placement precision: ± 0.05 | Remarks: FOV35mm Stage Vision(□ 32mm: 0.65mm pitch)
