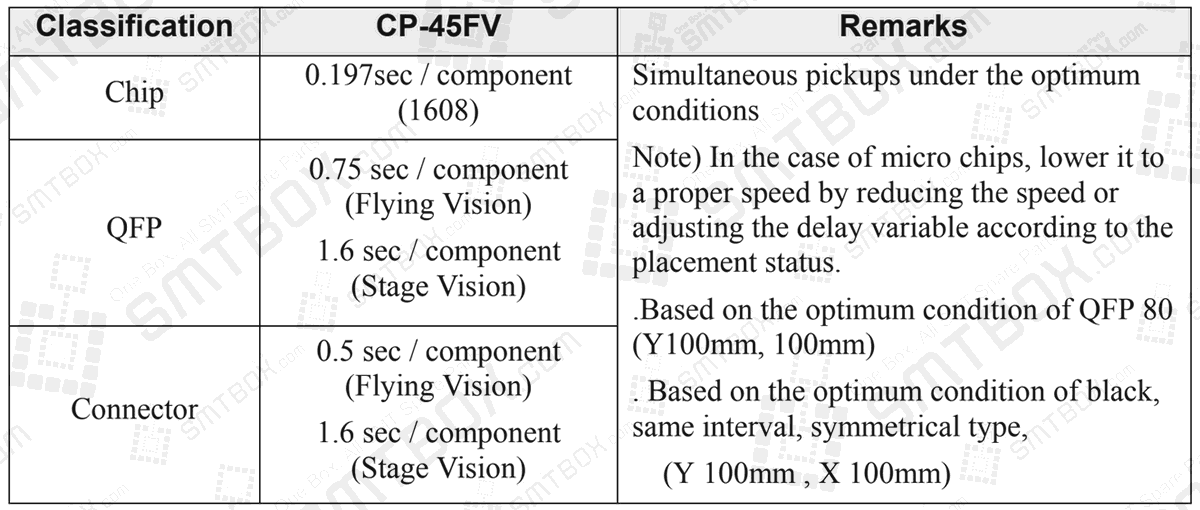

Table 1-5. The pick & place Cycle Time for Each Model
Classification 1: Chip
CP-45FV: 0.197sec / component(1608)
Classification 2: QFP
CP-45FV: 0.75 sec / component (Flying Vision) and 1.6 sec / component (Stage Vision)
Classification 3: Connector
CP-45FV: 0.5 sec / component (Flying Vision) and 1.6 sec / component (Stage Vision)
Remarks: Simultaneous pickups under the optimum conditions
Note:
(1) In the case of micro chips, lower it to a proper speed by reducing the speed or adjusting the delay variable according to the placement status.
(2) Based on the optimum condition of QFP 80 (Y100mm, 100mm).
(3) Based on the optimum condition of black, same interval, symmetrical type, (Y 100mm , X 100mm).
Memo:
The above are for the pick & place cycle time under the optimum conditions (rounded-off to 1msec). In actual placement, the conditions that determine the cycle time may vary depending on many factors such as the type of components, size of PCB, placement position, etc. For more detailed information, please contact our Business Department or C/S Center.
