1.4. Electrical Specifications Of Samsung CP-45F(V)/FS High Speed Component Placer

1.4.1. Power requirements

Voltage

Single phase AC 220V ± 10 %

AC 100V / 110V / 120V / 200V / 220V/ 230V / 240V (shall be changed the terminal of the transformer)

Power Consumption: 2.6 KVA (Maximum)

Frequency: 50 / 60 Hz

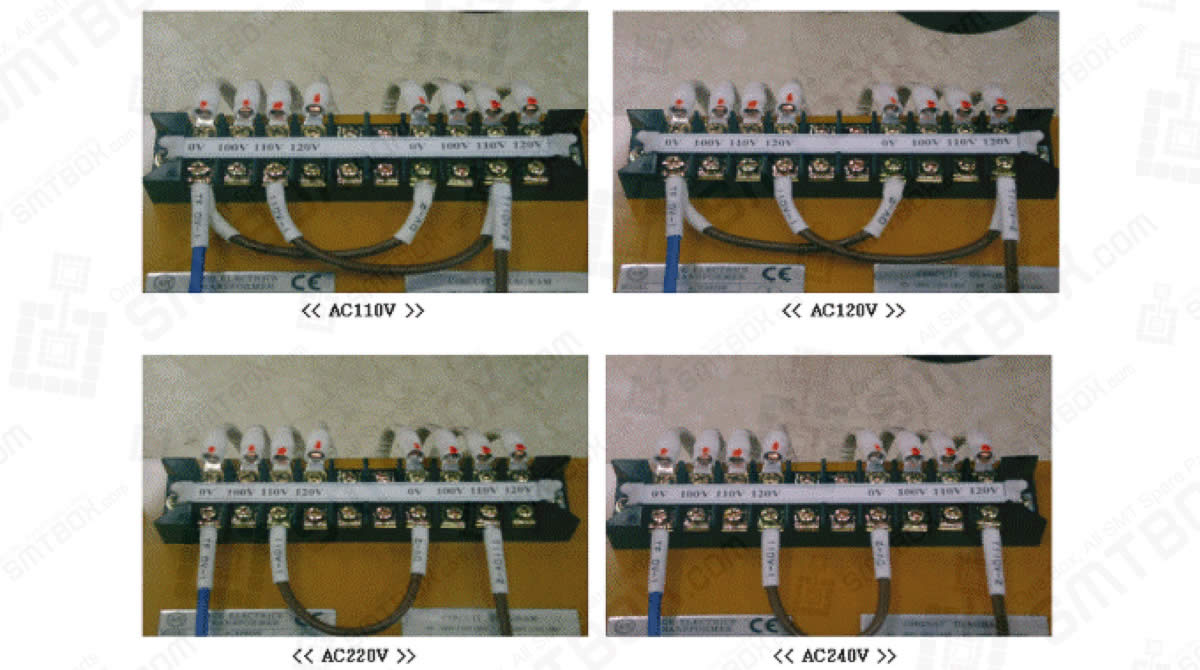

Figure 1-3. The solution for switching the power terminal connection of a transformer

Memo: The equipment power is properly connected according to the conditions for usage prior to the shipment.

Danger Warning:

If unspecified voltage is used or power input is changed improperly, fire could occur and a death from electric shock could occur.
Change of power input must be done by a trained repair and maintenance operator or our authorized C/S personnel.

1.4.2. EPU (External Programming Unit)

1.4.2.1. Software

EPU System Software
Protect Module

1.4.2.2. Hardware

Windows 98
CPU Intel CeleronTM over 733MHz
Over 10.2GB of HDD, IDE
Over 64MB of memory
CD-ROM 48x
3.5 inch FDD lea
Keyboard: Mini Keyboard (86 keys)
Mouse: Serial Mouse or PS/2 mouse

1.4.2.3. Display

Programming Monitor: 14 inch VGA Color (1024 × 768 dots)

1.4.3. HLC (Host Line Computer)

1.4.3.1. Software

VME, Windows 98

Protect Module

1.4.3.2. Hardware

Windows 98
CPU Intel CeleronTM over 733MHz
Over 40GB of HDD, IDE
Hard Disk Rack
Over 64MB of memory
CD-ROM 48x
3.5 inch FDD lea
Keyboard: Mini Keyboard (86 keys)
Mouse: PS/2 mouse

1.4.3.3. Display

Programming Monitor: 14 inch VGA Color (1024 × 768 dots)
Teaching Monitor: 14 inch VGA Color (800 x 600 dot)

Memo: The specifications of the equipment can be altered without prior notice to improve the product performance.
