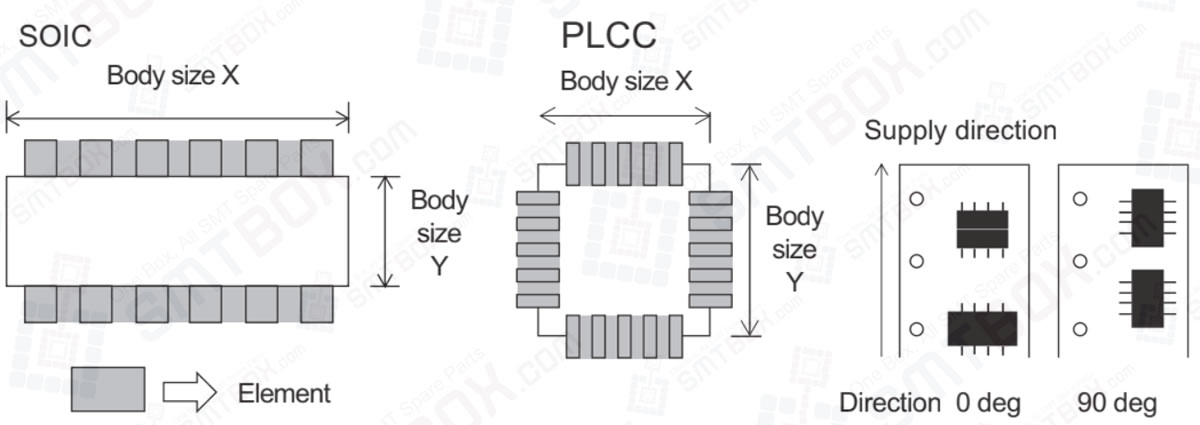

Enter the body size and element information in part data. It is necessary to create separate element information for leads of different width and length. Vision type 151 uses the body center while vision type 156 uses the part center.
Category Archives: SMT Machines MRO
09
Jan
Jan

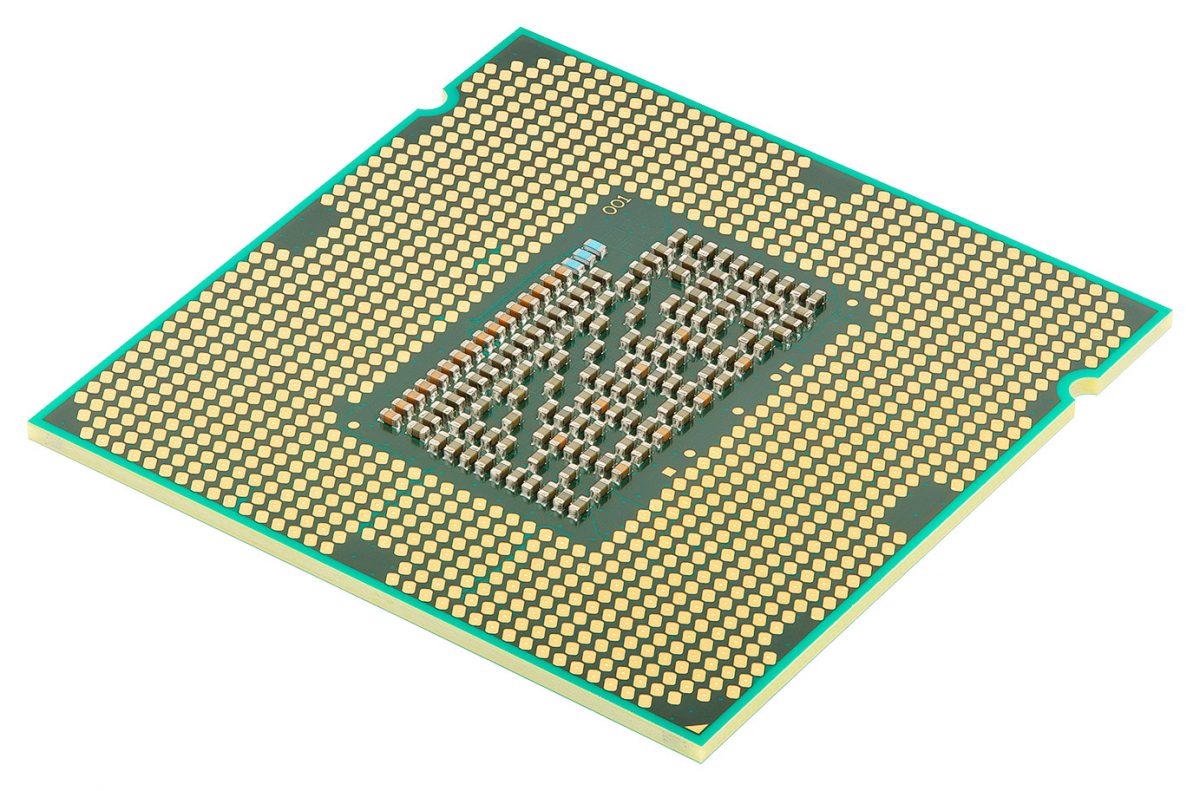

Enter the body size and element information in part data. Vision type 144 uses the body center while vision type 149 uses the part center. LGA(Land Grid Array) A chip package with a very high density of contacts. LGAs differ from traditional chips with protruding pins that are inserted into a socket. An LGA chip […]
08
Jan
Jan
Enter the body size and element information in part data. Vision type 143 uses the body enter while vision type 148 uses the part center. Due to the use of frontlighting, there are cases where the image of the ball grid may vary depending on the shape of the leads and the lighting conditions. In […]
06
Jan
Jan
Enter the body size and element information in part data. Vision type 140 uses the body center while vision type 145 uses the part center. Due to the use of frontlighting, there are cases where the image of the ball grid may vary depending on the shape of the leads and the lighting conditions. In […]
03
Jan
Jan
Enter the body size and element information in part data. Due to the use of frontlighting, there are cases where the acquired image may vary depending on the shape of the leads and the lighting conditions. In such cases, it may be necessary to make adjustments to the position, length and width of the lead […]
02
Jan
Jan

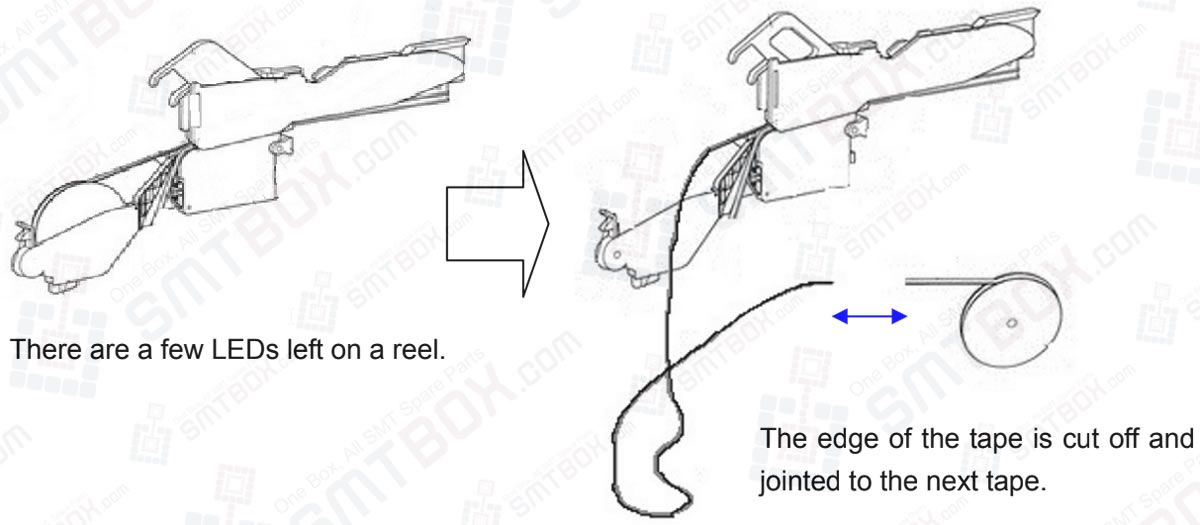

“Splicing” stands for the tape joint process while the mounter is operated. When there are a few LEDs left on the reel which is loaded on the mounter, some customers cut off and joint the edge of the tape to the next tape without detaching the feeder from the device. The splicing is to raise […]
31
Dec
Dec
3-4. Problem 4: LED tilting within the cavity due to vibration of the emboss carrier tape When an excessive vibration is applied to the emboss carrier tape, LEDs may tilt within the cavities. LEDs with a lens are susceptible to vibration, resulting in tilting, since its center of gravity is located higher. 3-4-2. Change the […]
30
Dec
Dec

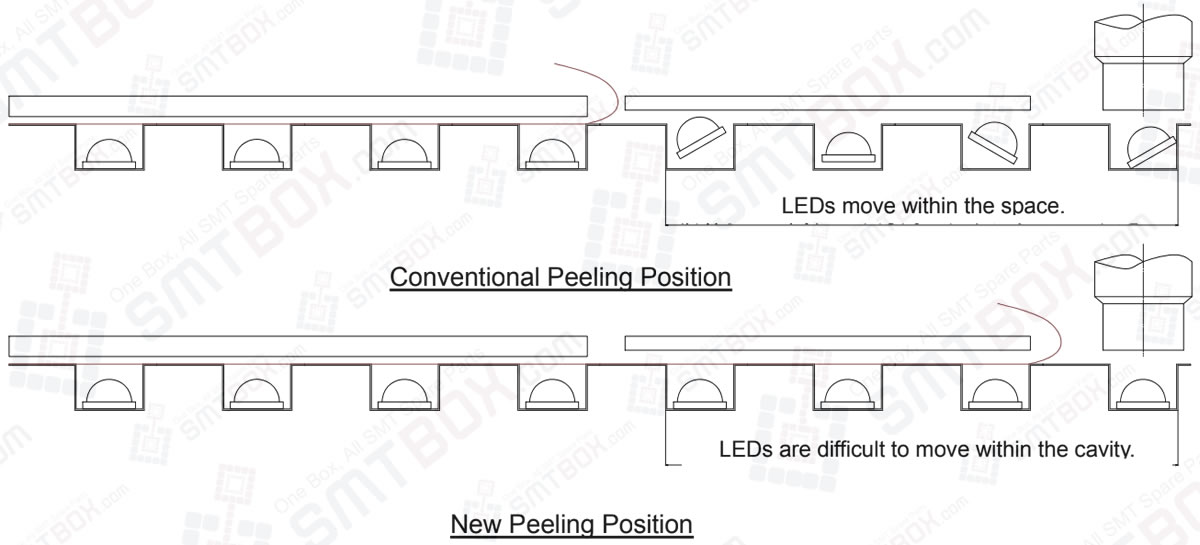

3-4. Problem 4: LED tilting within the cavity due to vibration of the emboss carrier tape When an excessive vibration is applied to the emboss carrier tape, LEDs may tilt within the cavities. LEDs with a lens are susceptible to vibration, resulting in tilting, since its center of gravity is located higher. 3-4-1. Slow down […]
27
Dec
Dec

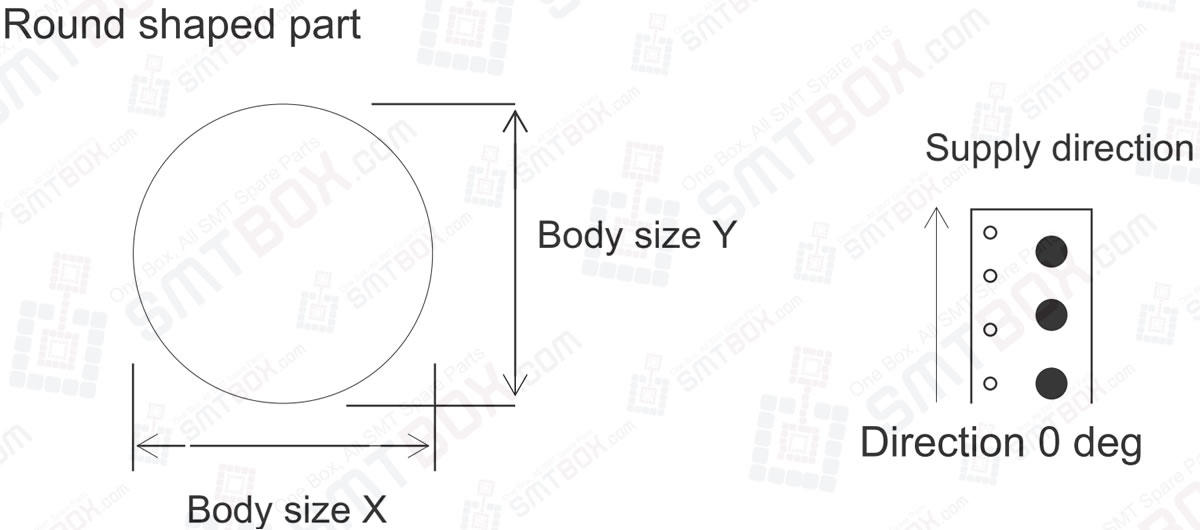

Enter only the body size in part data. There is no need to enter element information. The reference point for the part is the part center.
26
Dec
Dec
It is necessary to enter the body size and element information in part data. Enter the lead quantity (2 or 3), lead width and length, and width tolerance. First, the part position is determined using the vision type 71 processing method, and then, direction inspection is performed based on the detection of one lead. However, […]
