Vision Type 252 White Bodied Parts For NXT Vision Types Of Part Data Settings On Fuji NXT

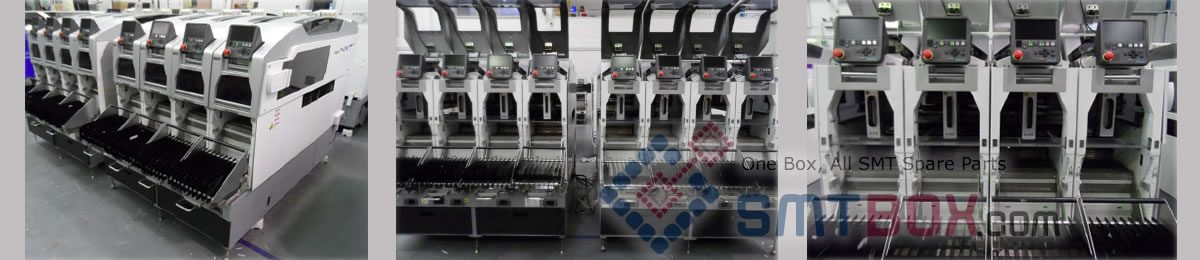

FUJI NXT Scalable Placement Platform side b SMTBOX INC.

This vision type is used for those parts with a white or gold colored body, and processes only the part outline.

It is necessary to enter the body size in part data.

The body size should be measured from edge to edge. Positioning is performed using the outer-most points on the upper and lower, and left and right part edges.
