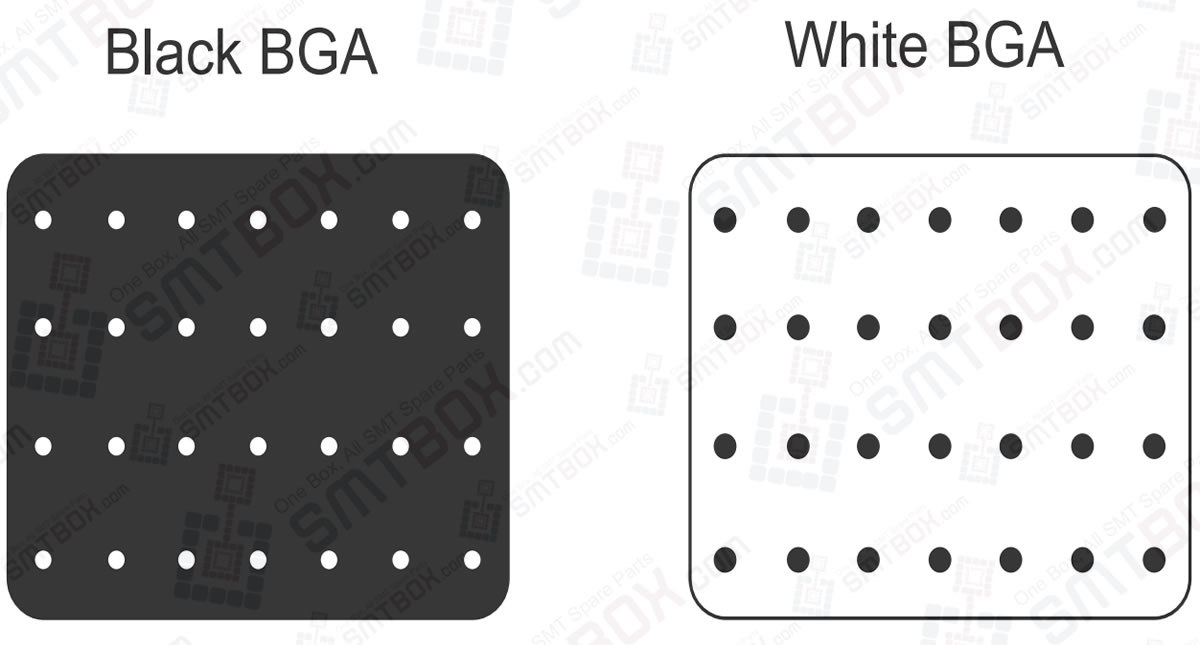

Having issues with Vision Type 230 (235) Black Bodied Bgas, 231 (236) White Bodied Bgas, 233 (238) Black Bodied Csps & 234 (239) White Bodied Csps? Read our step-by-step SMT maintenance solution below. If you require replacement feeders, nozzles, or sensors, contact SMTBOX for OEM-compatible parts.
Enter the part body size and element information in part data. Vision types 230, 231, 233, and 234 use the body center while vision types 235, 236, 237, and 238 use the part center.
Due to the use of frontlighting, there are cases where the image of the ball grid may vary depending on the shape of the leads and the lighting conditions.
In such cases, it may be necessary to make adjustments to the ball grid position, length and width of the lead information in element information. The reference point for the part is the part center.
