Having issues with Vision Type 181 Coil Parts With Two Leads At 45 Degree Angles For NXT Vision Types Of Part Data Settings On Fuji NXT? Read our step-by-step SMT maintenance solution below. If you require replacement feeders, nozzles, or sensors, contact SMTBOX for OEM-compatible parts.

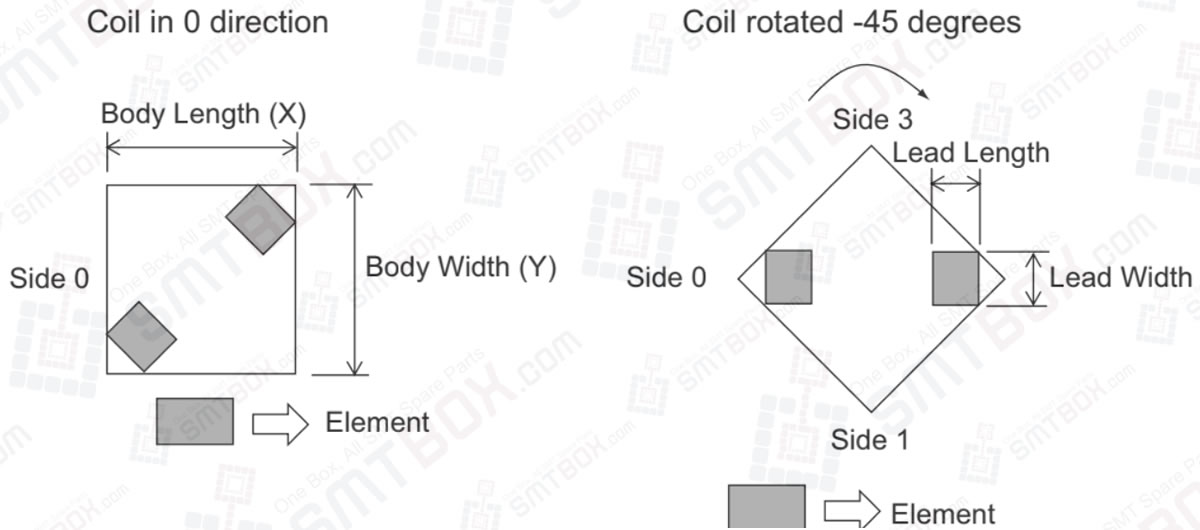

Use this vision type for coil parts with 2 leads that are at 45 degree angles from the x-axis (as shown below).
The body color is black and only the leads are visible during vision processing.
Enter the body size and element information in part data based on the information below.
