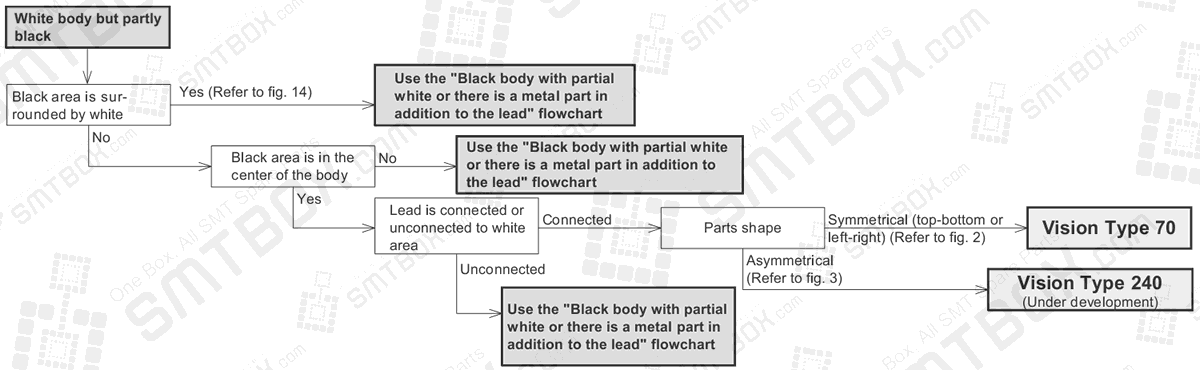

Case 4 for 4.6.3 Selecting A Vision Type Flowcharts (Leaded Parts) of Part Data Settings
Figure 2: Example of left to right symmetrical part and Top to bottom symmetrical part
Detemine the symmetry by considering all white items that can be seen (lead or other metal items).
Figure 3: Examples of asymmetrical parts
Detemine the asymmetry by considering all white items that can be seen (lead or other metal items).
Figure 14: Examples of when the black area is surrounded by white body.
