What is Panasonic KME Panasert CM602-L SMD Nozzle For High-speed head(12-nozzle)?
Looking for Panasonic KME Panasert CM602-L SMD Nozzle For High-speed head(12-nozzle)? This SMT spare part (SKU: 12-NOZZLE, Brand: Panasonic) is a high-precision component for SMT pick-and-place machines. Contact SMTBOX for competitive bulk prices, global delivery options, and fast RFQ turnaround.
Panasonic For High-speed head(12-nozzle) CM602-L MODULE NUMBER Nozzle for CM602
| NO | PART NUMBER | PART NAME | TYPE | Q’TY | RANK | REMARKS |
|---|---|---|---|---|---|---|

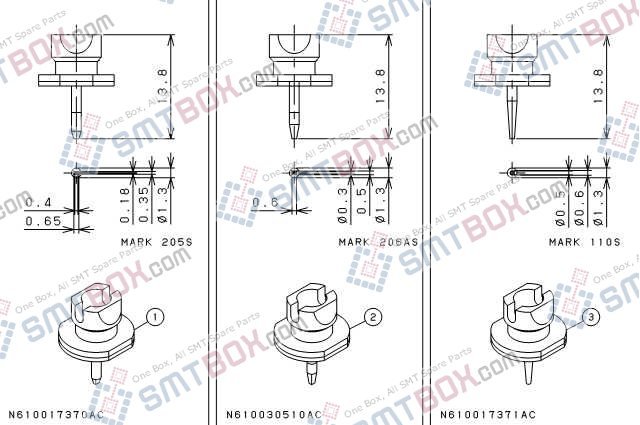

| 1 | N610017370AC | NOZZLE No.205S | N/A | 1 | N/A | N/A |

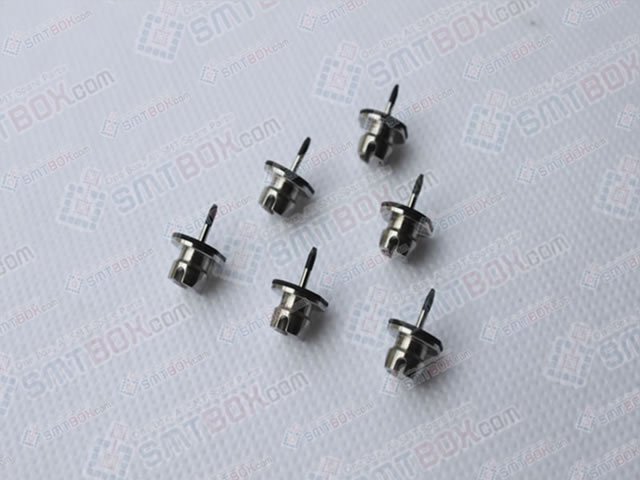

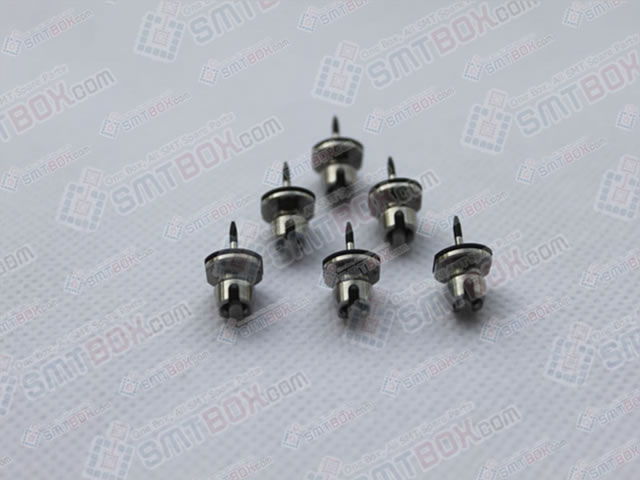

| 2 | N610030510AC | NOZZLE No.206AS | N/A | 1 | N/A | N/A |

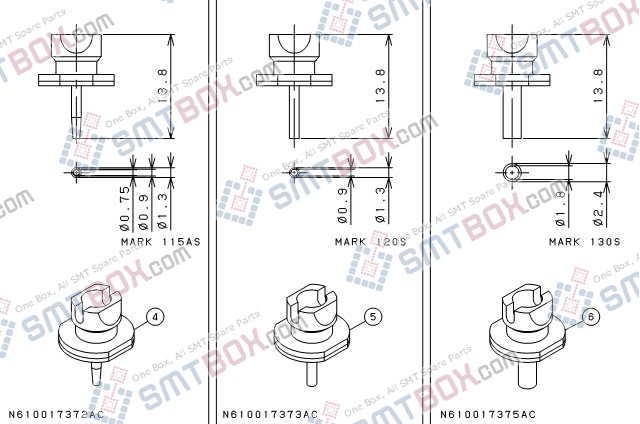

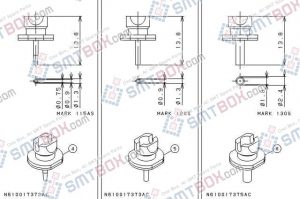

| 3 | N610017371AC | NOZZLE No.110S | N/A | 1 | N/A | N/A |
| 4 | N610017372AC | NOZZLE No.115AS | N/A | 1 | N/A | N/A |
| 5 | N610017373AC | NOZZLE No.120S | N/A | 1 | N/A | N/A |
| 6 | N610017375AC | NOZZLE No.130S | N/A | 1 | N/A | N/A |
Panasonic For High-speed head(12-nozzle) CM602-L MODULE NUMBER Nozzle for CM602
| NO | PART NUMBER | PART NAME | TYPE | Q’TY | RANK | REMARKS |
|---|---|---|---|---|---|---|

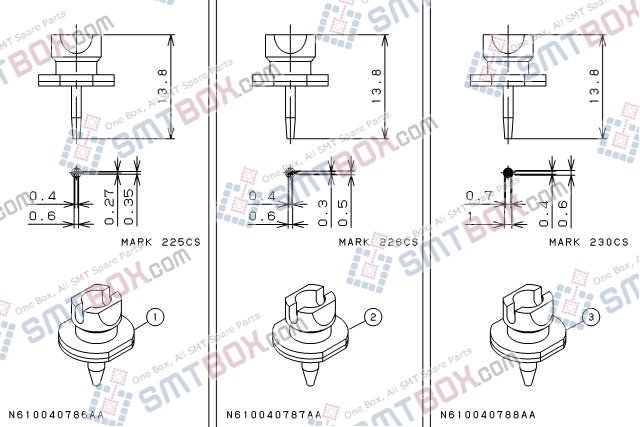

| 1 | N610040786AB | NOZZLE No.225CS | N/A | 1 | N/A | N/A |
| 2 | N610040787AB | NOZZLE No.226CS | N/A | 1 | N/A | N/A |

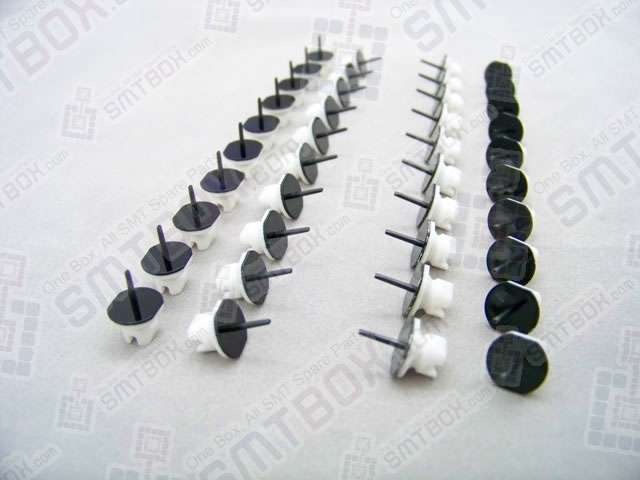

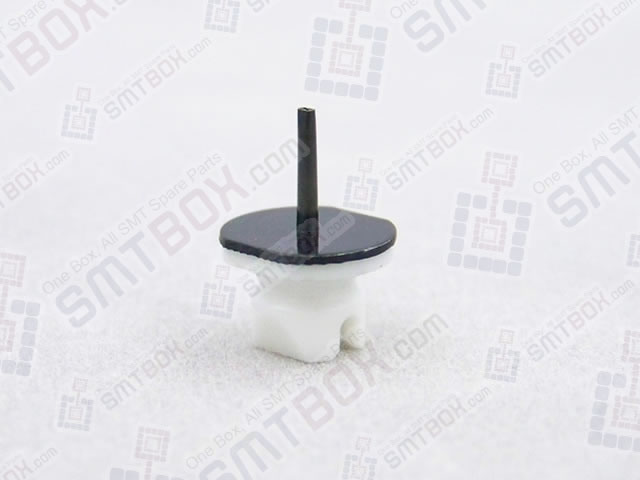

| 3 | N610040788AB | NOZZLE No.230CS | N/A | 1 | N/A | N/A |
| 4 | N610043815AB | NOZZLE No.235CS | N/A | 1 | N/A | N/A |
| 5 | N610040853AB | NOZZLE No.240CS | N/A | 1 | N/A | N/A |
The Panasonic KME Panasert CM602-L SMD Nozzle For High-speed head(12-nozzle) (SKU: 12-NOZZLE) is a premium-grade SMT spare component manufactured for high-speed pick and place machines. Designed for maximum durability and precision, this part is part of our extensive Panasonic SMT Nozzle, Panasonic SMT Spare Parts, Thru-hole Parts inventory. It ensures seamless integration and high efficiency on active PCB assembly lines.
How to use Panasonic KME Panasert CM602-L SMD Nozzle For High-speed head(12-nozzle)?
For optimal performance and durability, this component should be installed and calibrated by a certified SMT maintenance engineer. Regularly check the alignment, wear patterns, and vacuum suction parameters (for nozzles) to prevent component mispicks and ensure high assembly yields.
- Power down your mounter and disconnect the vacuum line.
- Clean the nozzle shaft or feeder mounting slot with ESD-safe cleaning alcohol.
- Carefully align the new component and tighten to the manufacturer's torque specifications.
- Perform a test cycle and verify the component alignment using mounter diagnostics before resuming full production.
