What is Panasonic CM402-M/L CM602-L SMT Nozzle For High Speed Heads and Multifunctional Heads?
Looking for Panasonic CM402-M/L CM602-L SMT Nozzle For High Speed Heads and Multifunctional Heads? This SMT spare part (SKU: KXFX03DGA00, Brand: Panasonic) is a high-precision component for SMT pick-and-place machines. Contact SMTBOX for competitive bulk prices, global delivery options, and fast RFQ turnaround.

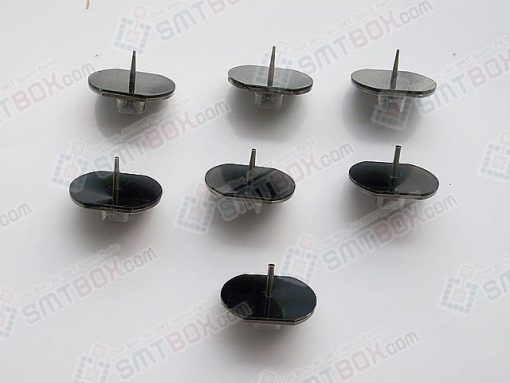

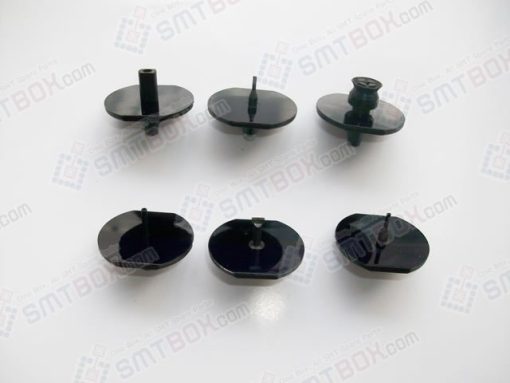

Nozzles for High Speed Heads
Nozzle for 1005/1608 mm – Type 110 32)
Nozzle for 1608/2012 – Type 115 16)
Dia 6 mm pad (large) nozzle – Type 450 (SOP, QFP, PLCC, 18 x 18 mm)
Dia 6 mm pad (large) nozzle – Type 460 (SOP, QFP, PLCC, 24 x 24 mm)
Nozzles for Multifunctional Heads
Nozzle for 3216, 4632C/R – Type 1002
Nozzle for Al-Cap, SOP, SOJ – Type 1003
Nozzle for SOP, SOJ, QFP, BGA – Type 1004
Nozzle for QFP,PLCC, BGA,CSP – Type 1005
Nozzle (light reflector only) – Type 1006

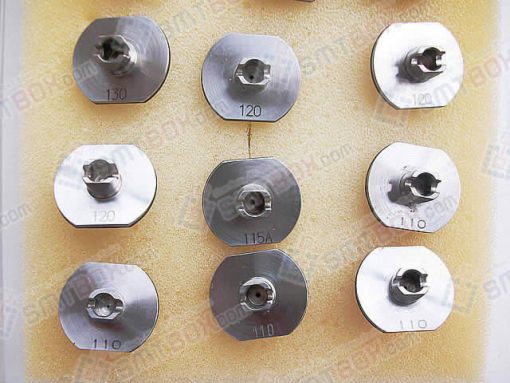

Nozzle 110 Part Number: KXFX03DGA00
Nozzle 115A Part Number: KXFX037NA00
Nozzle 120 Part Number: KXFX0384A00
Nozzle 130 Part Number: KXFX0385A00
Nozzle 140 Part Number: KXFX0386A00

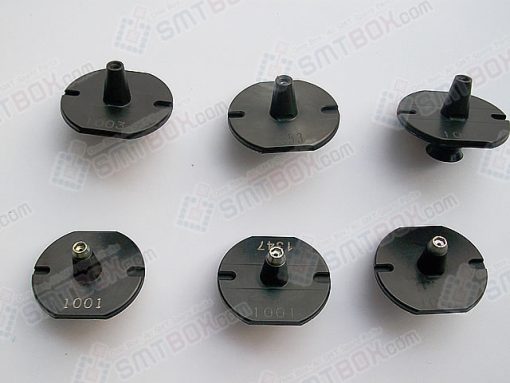

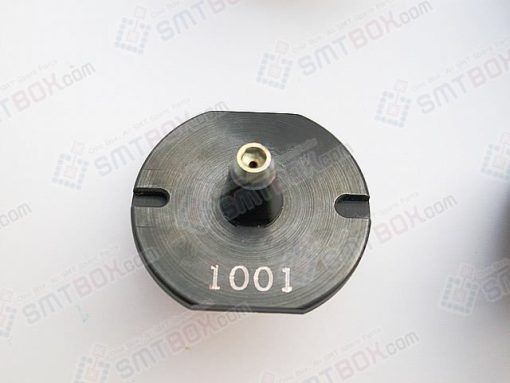

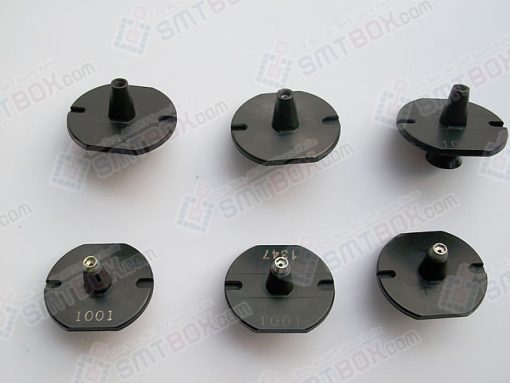

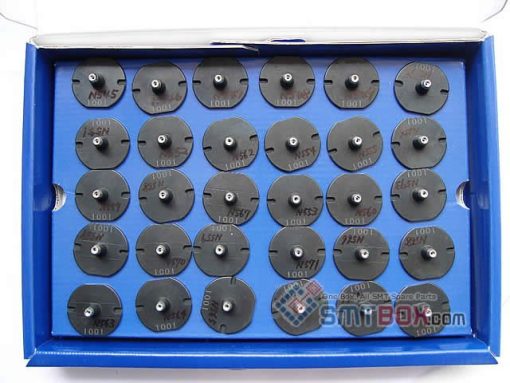

Nozzle 1001 Part Number: KXFX037SA00
Nozzle 1002 Part Number: KXFX037TA00
Nozzle 110S Part Number: N610017371AC
Nozzle 115AS Part Number: N610017372AC
Nozzle 120S Part Number: N610017373AC
Nozzle 130S Part Number: N610017375AC
Nozzle 140S Part Number: KXFX0386A00
Nozzle 205S Part Number: N610017370AC
Nozzle 225CS Part Number: N610040786AA
Nozzle 226CS Part Number: N610040787AA
Nozzle 230CS Part Number: N610040788AA
Nozzle 235CS Part Number: N610043815AA
Nozzle 240CS Part Number: N610040853AA
Nozzle 225C Part Number: N610040782AA
Nozzle 226C Part Number: N610040783AA
Nozzle 230C Part Number: N610040784AA
Nozzle 235C Part Number: N610043814AA
Nozzle 240C Part Number: N610062681AA
The Panasonic CM402-M/L CM602-L SMT Nozzle For High Speed Heads and Multifunctional Heads (SKU: KXFX03DGA00) is a premium-grade SMT spare component manufactured for high-speed pick and place machines. Designed for maximum durability and precision, this part is part of our extensive Panasonic SMT Nozzle, Panasonic SMT Spare Parts, Thru-hole Parts inventory. It ensures seamless integration and high efficiency on active PCB assembly lines.
How to use Panasonic CM402-M/L CM602-L SMT Nozzle For High Speed Heads and Multifunctional Heads?
For optimal performance and durability, this component should be installed and calibrated by a certified SMT maintenance engineer. Regularly check the alignment, wear patterns, and vacuum suction parameters (for nozzles) to prevent component mispicks and ensure high assembly yields.
- Power down your mounter and disconnect the vacuum line.
- Clean the nozzle shaft or feeder mounting slot with ESD-safe cleaning alcohol.
- Carefully align the new component and tighten to the manufacturer's torque specifications.
- Perform a test cycle and verify the component alignment using mounter diagnostics before resuming full production.
