Panasonic BM series Modula Placement Machine NM-EJM6B, NM-EJM7B, NM-EJM8B, NM-EJM1C Features
|A wide range of component|
Ensures continuous productivity by placing components from (0201”) 0603 to L 55 mm × W 55 mm or L 150 mm × W 25 mm components on tape, reel and tray.
The BM221 & 231 offer productivity with up to 120 tape and 80 tray (JEDEC standard) inputs.
|Quick changeover capabilities|
|Fast, accurate placement|
The 8-nozzle vertical drive provides batch recognition and batch pick-up for components in variable heights.
*It differs depending on the condition.
|A variation of available options for the supply unit [BM221]|
(Type A) Tray Feeder + Tape Feeder
(Type B) No supply unit

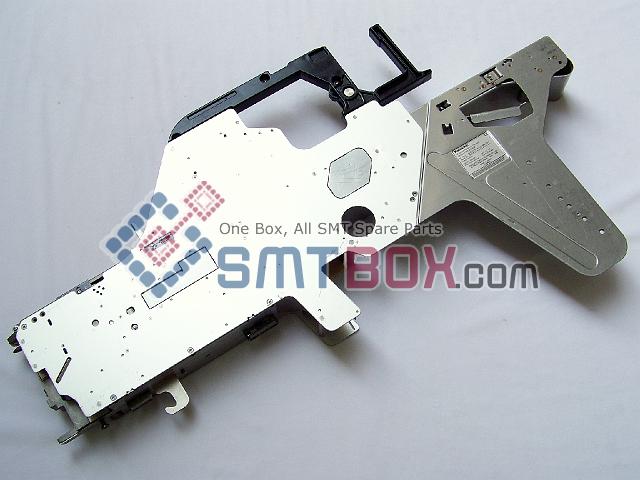

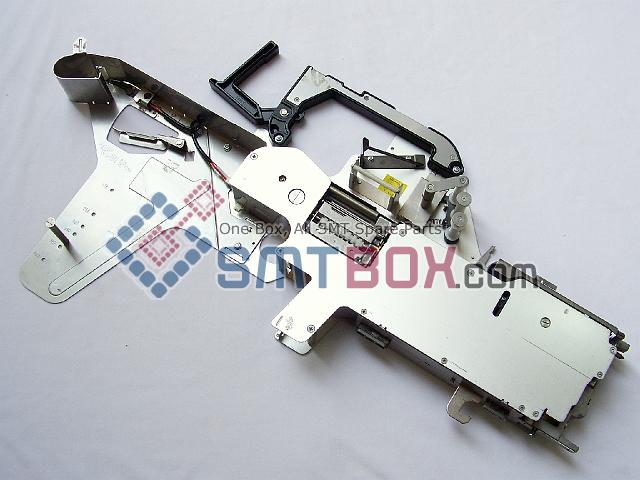

(Type C) Tape Feeder
(Type D) Hand setting tray
(Type E) Tape Feeder + Hand setting tray
|3D camera (optional)|
2D and 3D sensors are used to accurately place components ranging from microchips to L 55 mm x W 55 mm x T 25 mm, QFPs, BGAs and CSPs.
|Chip thickness measuring sensor (optional)|
The chip thickness senser measures the thickness of components to improve placement quality.
|Direct tray support function|
QFP and odd-shape components can be continuously supplied at high speed using twin-tray feeders. (BM221 and BM231 [Type A])
Also, a hand setting tray table can be selected. (BM221)
