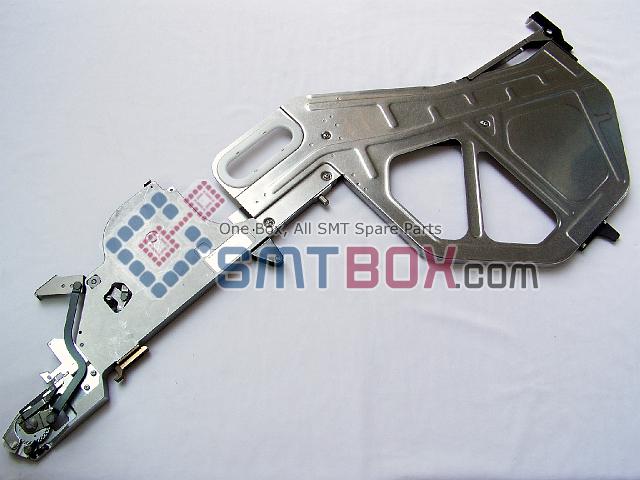

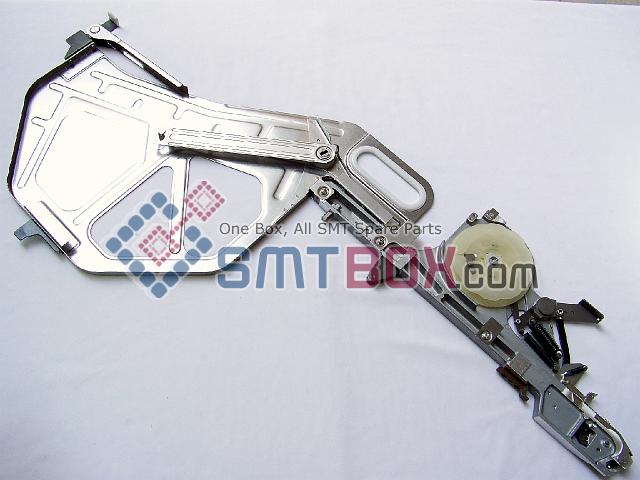

Panasert MSR Ratchet Type Component Feeder 104858BL064(10485BL014) 12*4mm Emboss

What is Panasert MSR Ratchet Type Component Feeder 104858BL064(10485BL014) 12*4mm Emboss?

The MSR isn’t only fast; its 6-nozzle, 16-head system rotary head makes it incredibly reliable, too. What’s more, the MSR can place 0201 chips through 32mm QFPs at 0.5mm pitch with a high degree of accuracy due to its innovative in-line recognition and lighting system and high-resolution camera. With easy, interactive operation and up to 300 8mm inputs and 150 12mm inputs, the MSR’s performance is everything you’d expect from a quality Panasonic product.

Features & Benefits

• 0201 chips to 32 QFPs can be mounted accurately at speeds of up to 45,000 components per hour
• 30,000 TSOPs, SOICs per hour
• 300 8mm inputs and 150 12mm inputs
• Combination of grayscale and binary recognition systems plus coaxial lighting technology provides accurate placement of components
• Warranty: 6 month parts and labor

How to use Panasert MSR Ratchet Type Component Feeder 104858BL064(10485BL014) 12*4mm Emboss?

For optimal performance and durability, this component should be installed and calibrated by a certified SMT maintenance engineer. Regularly check the alignment, wear patterns, and vacuum suction parameters (for nozzles) to prevent component mispicks and ensure high assembly yields.

1. Power down your mounter and disconnect the vacuum line.
2. Clean the nozzle shaft or feeder mounting slot with ESD-safe cleaning alcohol.
3. Carefully align the new component and tighten to the manufacturer's torque specifications.
4. Perform a test cycle and verify the component alignment using mounter diagnostics before resuming full production.
