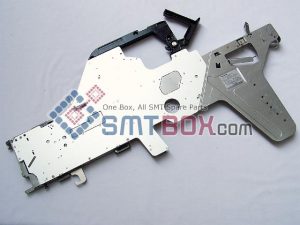

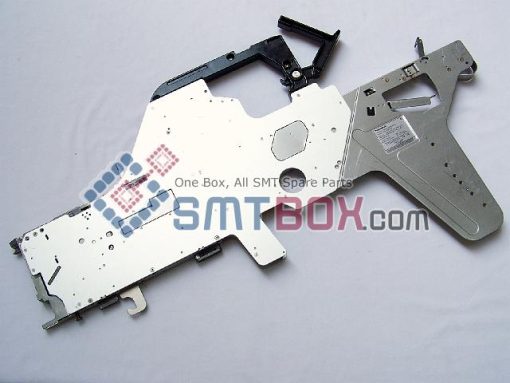

What is Panasert BM Motorized Feeder BM221 BM232 BM123 FAE1600MA300 16mm?
Looking for Panasert BM Motorized Feeder BM221 BM232 BM123 FAE1600MA300 16mm? This SMT spare part (SKU: FAE1600MA300., Brand: Panasonic) is a high-precision component for SMT pick-and-place machines. Contact SMTBOX for competitive bulk prices, global delivery options, and fast RFQ turnaround.
Panasonic BM series Modula Placement Machine NM-EJM6B, NM-EJM7B, NM-EJM8B, NM-EJM1C Features
| A wide range of component Ensures continuous productivity by placing components from (0201”) 0603 to L 55 mm × W 55 mm or L 150 mm × W 25 mm components on tape, reel and tray. The BM221 & 231 offer productivity with up to 120 tape and 80 tray (JEDEC standard) inputs. |
| Quick changeover capabilities |
| Fast, accurate placement The 8-nozzle vertical drive provides batch recognition and batch pick-up for components in variable heights. *It differs depending on the condition. |
| A variation of available options for the supply unit [BM221] (Type A) Tray Feeder + Tape Feeder (Type B) No supply unit (Type C) Tape Feeder (Type D) Hand setting tray (Type E) Tape Feeder + Hand setting tray |
| 3D camera (optional) 2D and 3D sensors are used to accurately place components ranging from microchips to L 55 mm x W 55 mm x T 25 mm, QFPs, BGAs and CSPs. |
| Chip thickness measuring sensor (optional) The chip thickness senser measures the thickness of components to improve placement quality. |
| Direct tray support function QFP and odd-shape components can be continuously supplied at high speed using twin-tray feeders. (BM221 and BM231 [Type A]) Also, a hand setting tray table can be selected. (BM221) |
The Panasert BM Motorized Feeder BM221 BM232 BM123 FAE1600MA300 16mm (SKU: FAE1600MA300.) is a premium-grade SMT spare component manufactured for high-speed pick and place machines. Designed for maximum durability and precision, this part is part of our extensive BM123/221/231 SMT SMD Feeders, Panasonic SMT Spare Parts, Thru-hole Parts, SMD Feeders Sort by Size, SMD Intelligent Feeders, SMT Feeders – 16mm, SMT Feeders Sort by Type inventory. It ensures seamless integration and high efficiency on active PCB assembly lines.
How to use Panasert BM Motorized Feeder BM221 BM232 BM123 FAE1600MA300 16mm?
For optimal performance and durability, this component should be installed and calibrated by a certified SMT maintenance engineer. Regularly check the alignment, wear patterns, and vacuum suction parameters (for nozzles) to prevent component mispicks and ensure high assembly yields.
- Power down your mounter and disconnect the vacuum line.
- Clean the nozzle shaft or feeder mounting slot with ESD-safe cleaning alcohol.
- Carefully align the new component and tighten to the manufacturer's torque specifications.
- Perform a test cycle and verify the component alignment using mounter diagnostics before resuming full production.
