Panasonic KME CM120 MU CM20F M CM201 CM202 CM301 M9 Type Tape Feeder M9B1CSM0000 8mmx4mm W81P Small Reel

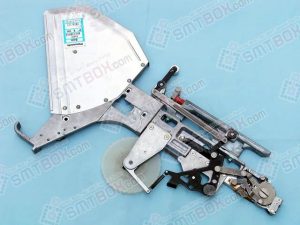

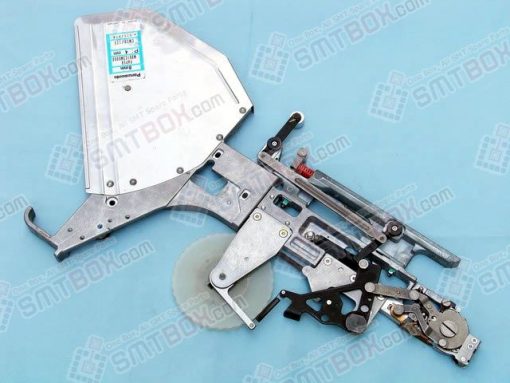

Panasonic KME CM120 MU CM20F M CM201 CM202 CM301 M9 Type Tape Feeder M9B1CSM0000 8mmx4mm W81P Small Reel side b

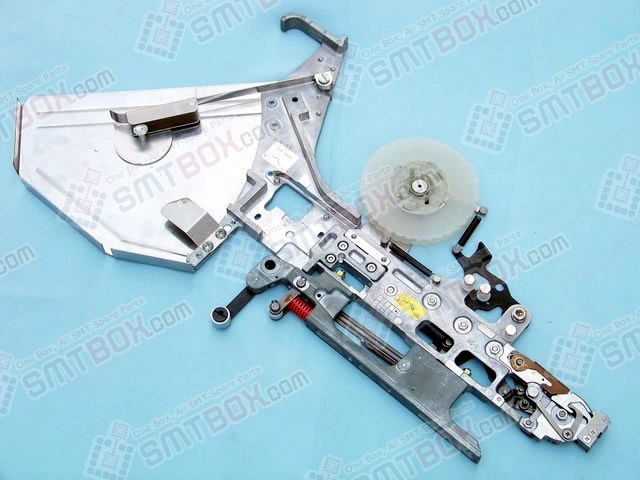

Panasonic KME Panasert CM120-MU CM20F-M CM201 CM202 CM301 M9 Type Tape Feeder M9B1CSM0000 8mmx4mm W81P Small Reel

Made by Panasonic/KME/Panasert. Part Name: M9 Type Tape Feeder. Part Number: M9B1CSM0000. Size: 8mmx4mm W8*1P Remark: Small Reel. For Panasonic/KME/Panasert CM120-MU CM20F-M CM201 CM202 CM301 Electronic Component Mounting Equipment.

SKU: SMTBOX-SMT-SPARE-PARTS-002819 Categories: , ,

Panasonic/KME/Panasert CM120-MU CM20F-M CM201 CM202 CM301 M9 Type Single Tape Feeder

No.Part No.Unit Name / Part Name
1M9A1CSM00008mm x 4mm Tape Feeder. Emboss.W8*1P.Wide. Small Reel
2M9A1CVM00008mm x 4mm Tape Feeder. Emboss. W8*1P.Wide. Large Reel
3M9A1NSM00008mm x 4mm Tape Feeder. Emboss. W8*1P.Small Reel
4M9A1NVM00008mm x 4mm Tape Feeder. Emboss. W8*1P.Large Reel
5M9A5NSM00008mm x 2mm Tape Feeder. Emboss. W8*0.5P.Small Reel
6M9A5NVM00008mm x 2mm Tape Feeder. Emboss. W8*0.5P.Large Reel
7M9B1CSM00008mm x 4mm Tape Feeder. Paper. W8*1P. Small Reel
8M9B1CVM00008mm x 4mm Tape Feeder. Paper. W8*1P. Large Reel
9M9B5CSM00008mm x 2mm Tape Feeder. Paper. W8*0.5P.Small Reel
10M9B5CVM00008mm x 2mm Tape Feeder. Paper. W8*0.5P.Large Reel
11M9C1CSM000012mm x 4mm Tape Feeder. Emboss. W12*1P.Small Reel
12M9C1CVM000012mm x 4mm Tape Feeder. Emboss. W12*1P.Large Reel
13M9C1NSM000012mm x 4mm Tape feeder. plastic W12*1P.small reel
14M9C1NVM000012mm x 4mm Tape feeder. plastic W12*1P.eglar reel
15M9C2CSM000012mm x 8mm Tape Feeder. Emboss. W12*2P.Small Reel
16M9C2CVM000012mm x 8mm Tape Feeder. Emboss. W12*2P.Large Reel
17M9C2NSM000012mm x 8mm Tape feeder. plastic W12*2P. small reel
18M9C2NVM000012mm x 8mm Tape feeder. plastic W12*2P. eglar reel
19M9C3CVM000012mm x 12mm Tape Feeder. Emboss. W12*3P.Large Reel
20M9C3NVM000012mm x 12mm Tape feeder. plastic W12*3P. eglar reel
21M9D1CVM000016mm x 4mm Tape Feeder. Emboss. W16*1P.Large Reel
22M9D1DVM000016mm x 4mm Tape Feeder. Emboss. W16*1P.Deep Groove. Large Reel
23M9D1NVM000016mm x 4mm Tape feeder. plastic W16*1P. eglar reel
24M9D2CVM000016mm x 8mm Tape Feeder. Emboss. W16*2P.Large Reel
25M9D2DVM000016mm x 8mm Tape Feeder. Emboss. W16*2P.Deep Groove. Large Reel
26M9D2NVM000016mm x 8mm Tape feeder. plastic W16*2P. eglar reel
27M9D3CVM000016mm x 12mm Tape Feeder. Emboss. W16*3P.Large Reel
28M9D3DVM000016mm x 12mm Tape Feeder. Emboss. W16*3P.Deep Groove. Large Reel
29M9D3NVM000016mm x 12mm Tape feeder. plastic W16*3P. eglar reel
30M9D4CVM000016mm x 16mm tape Feeder. Emboss. W16*4P.large reel
31M9D4DVM000016mm x 16mm Tape Feeder. Emboss. W16*4P.Deep Groove. Large Reel
32M9E1CVM000024mm x 4mm Tape Feeder. Emboss. W24*1P.Large Reel
33M9E1DVM000024mm x 4mm Tape Feeder. Emboss. W24*1P.Deep Groove. Large Reel
34M9E2CVM000024mm x 8mm Tape Feeder. Emboss. W24*2P.Large Reel
35M9E2DVM000024mm x 8mm Tape Feeder. Emboss. W24*2P.Deep Groove. Large Reel
36M9E3CVM000024mm x 12mm Tape Feeder. Emboss. W24*3P.Large Reel
37M9E3DVM000024mm x 12mm Tape Feeder. Emboss. W24*3P.Deep Groove. Large Reel
38M9E4CVM000024mm x 16mm Tape Feeder. Emboss. W24*4P.Large Reel
39M9E4DVM000024mm x 16mm Tape Feeder. Emboss. W24*4P.Deep Groove. Large Reel
40M9E5CVM000024mm x 20mm Tape Feeder. Emboss. W24*5P.Large Reel
41M9E5DVM000024mm x 20mm Tape Feeder. Emboss. W24*5P.Deep Groove. Large Reel
42M9E6CVM000024mm x 24mm Tape Feeder. Emboss. W24*6P.Large Reel
43M9E6DVM000024mm x 24mm Tape Feeder. Emboss. W24*6P.Deep Groove. Large Reel
44M9F3CVM000032mm x 12mm Tape Feeder. Emboss. W32*3P.Large Reel
45M9F3DVM000032mm x 12mm Tape Feeder. Emboss. W32*3P.Deep Groove. Large Reel
46M9F4CVM000032mm x 16mm Tape Feeder. Emboss. W32*4P.Large Reel
47M9F4DVM000032mm x 16mm Tape Feeder. Emboss. W32*4P.Deep Groove. Large Reel
48M9F6CVM000032mm x 24mm Tape Feeder. Emboss. W32*6P.Large Reel
49M9F6DVM000032mm x 24mm Tape Feeder. Emboss. W32*6P.Deep Groove. Large Reel
50M9H2CVM000044mm x 8mm Tape Feeder. Emboss. W44*2P.Large Reel
51M9H2DVM000044mm x 8mm Tape Feeder. Emboss. W44*2P.Deep Groove. Large Reel
52M9H3CVM000044mm x 12mm Tape Feeder. Emboss. W44*3P.Large Reel
53M9H3DVM000044mm x 12mm Tape Feeder. Emboss. W44*3P.Deep Groove. Large Reel
54M9H4CVM000044mm x 16mm Tape Feeder. Emboss. W44*4P.Large Reel
55M9H4DVM000044mm x 16mm Tape Feeder. Emboss. W44*4P.Deep Groove. Large Reel
56M9H5CVM000044mm x 20mm Tape Feeder. Emboss. W44*5P.Large Reel
57M9H5DVM000044mm x 20mm Tape Feeder. Emboss. W44*5P.Deep Groove. Large Reel
58M9H6CVM000044mm x 24mm Tape Feeder. Emboss. W44*6P.Large Reel
59M9H6DVM000044mm x 24mm Tape Feeder. Emboss. W44*6P.Deep Groove. Large Reel
60M9H8CVM000044mm x 32mm Tape Feeder. Emboss. W44*8P.Large Reel
61M9H8DVM000044mm x 32mm Tape Feeder. Emboss. W44*8P.Deep Groove. Large Reel
62M9H9CVM000044mm x 36mm Tape Feeder. Emboss. W44*9P.Large Reel
63M9H9DVM000044mm x 36mm Tape Feeder. Emboss. W44*9P.Deep Groove. Large Reel
64M9J2DVM000056mm x 8mm Tape Feeder. Emboss. W56*2P.Deep Groove. Large Reel
65M9J3DVM000056mm x 12mm Tape Feeder. Emboss. W56*3P.Deep Groove. Large Reel
66M9J4DVM000056mm x 16mm Tape Feeder. Emboss. W56*4P.Deep Groove. Large Reel
67M9J5DVM000056mm x 20mm Tape Feeder. Emboss. W56*5P.Deep Groove. Large Reel
68M9J6DVM000056mm x 24mm Tape Feeder. Emboss. W56*6P.Deep Groove. Large Reel
69M9J8DVM000056mm x 32mm Tape Feeder. Emboss. W56*8P.Deep Groove. Large Reel
70M9J9DVM000056mm x 36mm Tape Feeder. Emboss. W56*9P.Deep Groove. Large Reel

Panasonic/KME/Panasert CM120-MU CM20F-M CM201 CM202 CM301 M9 Type Adhesive Tape Feeder

No.Part No.Unit Name / Part Name
1M9G3CVM000032mm x 12mm Tape Feeder. Adhesive. W32*3P.Large Reel

Panasonic/KME/Panasert CM120-MU CM20F-M CM201 CM202 CM301 M9 Tpye Double Tape Feeder

No.Part No.Unit Name / Part Name
1M9A1CWM00008mm x 4mm Tape Feeder. Emboss. W8*1P. Wide.Double Reel
2M9A1NWM00008mm x 4mm Tape Feeder. Emboss. W8*1P. Double Reel
3M9A5NWM00008mm x 2mm Tape Feeder. Emboss. W8*0.5P. Double Reel
