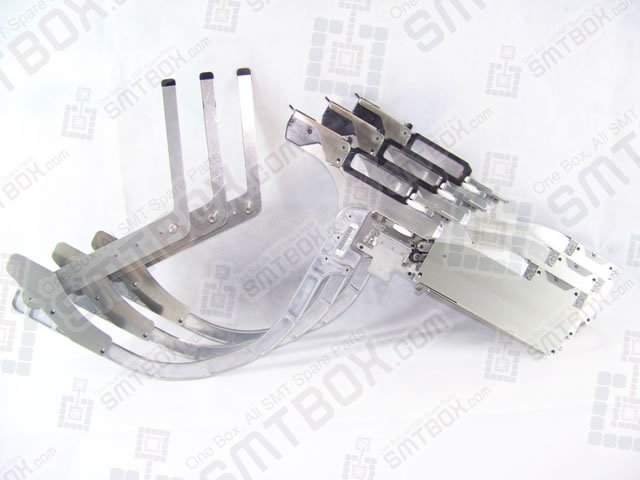

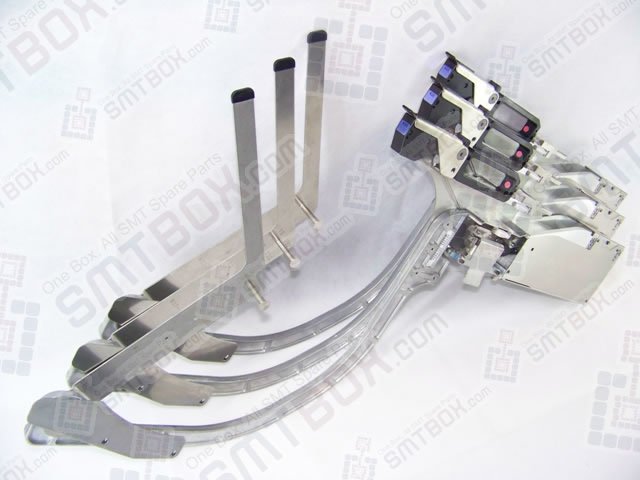

What is FUJI NXT Intelligent Feeder With 15 inches Reel Holder 32mm UF01000?
Looking for FUJI NXT Intelligent Feeder With 15 inches Reel Holder 32mm UF01000? This SMT spare part (SKU: UF01000, Brand: FUJI) is a high-precision component for SMT pick-and-place machines. Contact SMTBOX for competitive bulk prices, global delivery options, and fast RFQ turnaround.
The All-In-one Assembly machine FUJI AIMEX III/IIIc Specification:
1. Feeding of large amounts of different components.
2. Selectable placement portal configuration.
3. Efficient support for the introduction of new products (NPI).
4. Independent dual track production.
5. Tray feed units can be used on both sides of the machine.
6. Improved throughput
FUJI NXT MOTOR Feeders without reel holder
| PartNo. | Description |
|---|---|
| UF01300 | W8 8mm without reel holder |
| UF01400 | W12 12mm without reel holder |
| UF01500 | W16 16mm without reel holder |
| UF01600 | W24 24mm without reel holder |
| UF01700 | W32 32mm without reel holder |
| UF01800 | W44 44mm without reel holder |
| UF01900 | W56 56mm without reel holder |
FUJI NXT MOTOR Feeders with reel holder
| PartNo. | Description |
|---|---|
| UF00400 | W8 8mm with 7″ reel holder |
| UF00500 | W8 8mm with15″ reel holder |
| UF00600 | W12 12mm with 7″ reel holder |
| UF00700 | W12 12mm with15″ reel holder |
| UF00800 | W16 16mm with15″ reel holder |
| UF00900 | W24 24mm with15″ reel holder |
| UF01000 | W32 32mm with15″ reel holder |
| UF01100 | W44 44mm with15″ reel holder |
| UF01200 | W56 56mm with15″ reel holder |
SMD SMT Nozzle for FUJI PTS-NXT-08JE H08 H12
| LNo. | Part No. | QTY | Description | Rating | Remarks |
|---|---|---|---|---|---|
| 1 | AA1AT04 | 1 | NOZZLE | R07-003-070 | N/A |
| 2 | AA05603 | 1 | NOZZLE | R07-004-070 | N/A |
| 3 | AA05703 | 1 | NOZZLE | R07-007-070 | N/A |
| 4 | AA05803 | 1 | NOZZLE | R07-010-070 | N/A |
| 5 | AA20A03 | 1 | NOZZLE | R07-013-070 | N/A |
| 6 | AA20B03 | 1 | NOZZLE | R07-018-070 | N/A |
| 7 | AA20C03 | 1 | NOZZLE | R07-025-070 | N/A |
| 8 | AA20D03 | 1 | NOZZLE | R07-037-070 | N/A |
| 9 | AA20E03 | 1 | NOZZLE | R07-050-070 | N/A |
| 10 | AA06404 | 1 | NOZZLE | R07-013M-070 | N/A |
| 11 | AA19G04 | 1 | NOZZLE | R07-018M-070 | N/A |
| 12 | AA06504 | 1 | NOZZLE | R07-025M-070 | N/A |
| 13 | AA0WT05 | 1 | NOZZLE | R07-025G-070 | N/A |
| 14 | AA18C02 | 1 | NOZZLE | R07-037G-070 | N/A |
| 14.1 | PB30310 | 1 | SHIM | N/A | N/A |
| 14.2 | H1194K | 1 | PAD,VACUUM | KPA-2-N | N/A |
| 15 | AA06302 | 1 | NOZZLE | R07-050G-070 | N/A |
| 15.1 | PB30310 | 1 | SHIM | N/A | N/A |
| 15.2 | H1339B | 1 | PAD,VACUUM | KPA-3.5-NOT | N/A |
SMD SMT Nozzle for FUJI PTS-NXT-08JE H04 PART1
| LNo. | PartNo. | QTY | Description | Rating | Remarks |
|---|---|---|---|---|---|
| 2 | AA06W07 | 1 | NOZZLE | R19-010-155 | N/A |
| 3 | AA06X08 | 1 | NOZZLE | R19-013-155 | N/A |
| 4 | AA06Y08 | 1 | NOZZLE | R19-018-155 | N/A |
| 5 | AA06Z09 | 1 | NOZZLE | R19-025-155 | N/A |
| 6 | AA07A09 | 1 | NOZZLE | R19-037-155 | N/A |
| 7 | AA07B08 | 1 | NOZZLE | R19-050-155 | N/A |
| 8 | AA07C06 | 1 | NOZZLE | R19-070-155 | N/A |
| 9 | AA07D05 | 1 | NOZZLE | R19-100-155 | N/A |
| 10 | AA07E06 | 1 | NOZZLE | R19-150-155 | N/A |
SMD SMT Nozzle for FUJI PTS-NXT-08JE H04 PART2
| LNo. | PartNo. | QTY | Description | Rating | Remarks |
|---|---|---|---|---|---|
| 1 | AA07F07 | 1 | NOZZLE | R19-025G-155 | N/A |
| 2 | AA07G05 | 1 | NOZZLE | R19-037G-155 | N/A |
| 2.1 | PB30310 | 1 | SHIM | N/A | N/A |
| 2.2 | H1194K | 1 | PAD,VACUUM | KPA-2-NOT | N/A |
| 3 | AA07H05 | 1 | NOZZLE | R19-050G-155 | N/A |
| 3.1 | PB30310 | 1 | SHIM | N/A | N/A |
| 3.2 | H1339B | 1 | PAD,VACUUM | KPA-3.5-NOT | N/A |
| 4 | AA07K05 | 1 | NOZZLE | R19-070G-155 | N/A |
| 4.1 | PB31591 | 1 | SHIM | N/A | N/A |
| 4.2 | PG01611 | 1 | PAD,VACUUM | N/A | N/A |
| 5 | AA07L05 | 1 | NOZZLE | R19-100G-155 | N/A |
| 5.1 | PB31600 | 1 | SHIM | N/A | N/A |
| 5.2 | PG01620 | 1 | PAD,VACUUM | N/A | N/A |
| 6 | AA07M07 | 1 | NOZZLE | R19-150G-155 | N/A |
| 6.1 | PB31611 | 1 | SHIM | N/A | N/A |
| 6.2 | PG01630 | 1 | PAD,VACUUM | N/A | N/A |
SMD SMT Nozzle for FUJI PTS-NXT-08JE H01 PART1
| LNo. | Part No. | QTY | Description | Rating | remarks |
|---|---|---|---|---|---|
| 1 | AA0AS05 | 1 | NOZZLE | R36-010-260 | N/A |
| 1.1 | A5188M | 1 | O RING | 9X0.8(FKM70) | N/A |
| 2 | AA06807 | 1 | NOZZLE | R36-013-260 | N/A |
| 3 | AA0HS02 | 1 | NOZZLE | R36-018-260 | N/A |
| 4 | AA0HT02 | 1 | NOZZLE | R36-025-260 | N/A |
| 5 | AA0HW02 | 1 | NOZZLE | R36-037-260 | N/A |
| 6 | AA0HX02 | 1 | NOZZLE | R36-050-260 | N/A |
| 7 | AA08008 | 1 | NOZZLE | R36-070-260 | N/A |
| 8 | AA08107 | 1 | NOZZLE | R36-100-260 | N/A |
| 9 | AA08207 | 1 | NOZZLE | R36-150-260 | N/A |
| 10 | AA08307 | 1 | NOZZLE | R36-200-260 | N/A |
| 11 | AA0MZ02 | 1 | NOZZLE | R36-013M-260 | N/A |
| 12 | AA11R02 | 1 | NOZZLE | R36-018M-260 | N/A |
| 13 | AA0ML03 | 1 | NOZZLE | R36-025M-260 | N/A |
SMD SMT Nozzle for FUJI PTS-NXT-08JE H01 PART2
| LNo. | PartNo. | QTY | Description | Rating | Remarks |
|---|---|---|---|---|---|
| 1 | AA08411 | 1 | NOZZLE | R36-025G-260 | N/A |
| 2 | AA08509 | 1 | NOZZLE | R36-037G-260 | N/A |
| 2.1 | PB30310 | 1 | SHIM | N/A | N/A |
| 2.2 | H1194K | 1 | PAD,VACUUM | KPA-2-NOT | N/A |
| 3 | AA07209 | 1 | NOZZLE | R36-050G-260 | N/A |
| 3.1 | PB30310 | 1 | SHIM | N/A | N/A |
| 3.2 | H1339B | 1 | PAD,VACUUM | KPA-3.5-NOT | N/A |
| 4 | AA07311 | 1 | NOZZLE | R36-070G-260 | N/A |
| 4.1 | PB31591 | 1 | SHIM | N/A | N/A |
| 4.2 | PG01611 | 1 | PAD,VACUUM | N/A | N/A |
| 5 | AA07410 | 1 | NOZZLE | R36-100G-260 | N/A |
| 5.1 | PB31600 | 1 | SHIM | N/A | N/A |
| 5.2 | PG01620 | 1 | PAD,VACUUM | N/A | N/A |
| 6 | AA07511 | 1 | NOZZLE | R36-150G-260 | N/A |
| 6.1 | PB31611 | 1 | SHIM | N/A | N/A |
| 6.2 | PG01630 | 1 | PAD,VACUUM | N/A | N/A |
| 7 | AA07610 | 1 | NOZZLE | R36-200G-260 | N/A |
| 7.1 | PB31731 | 1 | SHIM | N/A | N/A |
| 7.2 | PG01640 | 1 | PAD,VACUUM | N/A | N/A |
The FUJI NXT Intelligent Feeder With 15 inches Reel Holder 32mm UF01000 (SKU: UF01000) is a premium-grade SMT spare component manufactured for high-speed pick and place machines. Designed for maximum durability and precision, this part is part of our extensive FUJI SMD Spare Parts, FUJI SMT Feeders, SMD Feeders Sort by Size, SMD Intelligent Feeders, SMT Feeders – 32mm, SMT Feeders Sort by Type inventory. It ensures seamless integration and high efficiency on active PCB assembly lines.
