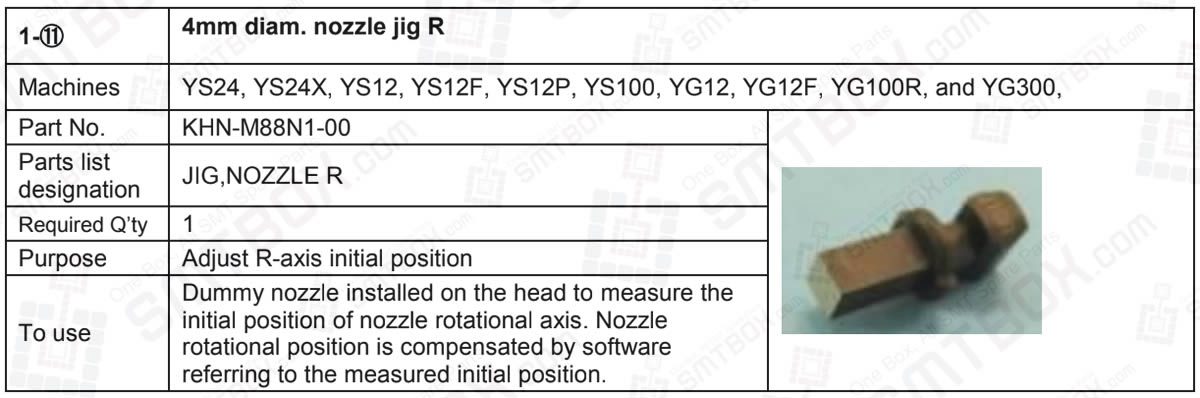

11 4mm diam. nozzle jig R
Machines: YS24, YS24X, YS12, YS12F, YS12P, YS100, YG12, YG12F, YG100R, and YG300,
Part Number: KHN-M88N1-00
Parts list designation: JIG,NOZZLE R
Required quantity: 1
Purpose: Adjust R-axis initial position
To use: Dummy nozzle installed on the head to measure the initial position of nozzle rotational axis. Nozzle rotational position is compensated by software referring to the measured initial position.
