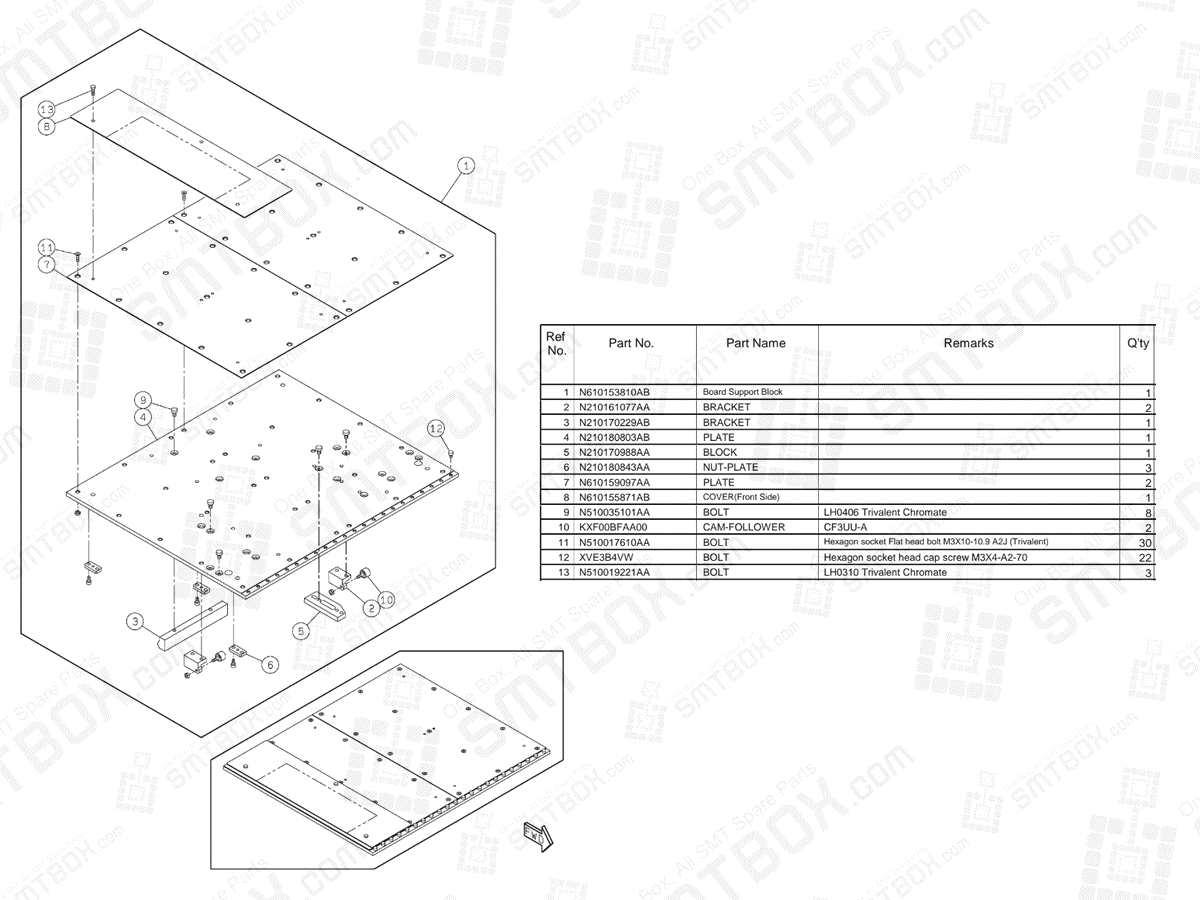

#1. P/N: N610153810AB | Part name: Board Support Block | Qty: 1
#2. P/N: N210161077AA | Part name: Bracket | Qty: 2
#3. P/N: N210170229AB | Part name: Bracket | Qty: 1
#4. P/N: N210180803AB | Part name: Plate | Qty: 1
#5. P/N: N210170988AA | Part name: Block | Qty: 1
#6. P/N: N210180843AA | Part name: Nut Plate | Qty: 3
#7. P/N: N610159097AA | Part name: Plate | Qty: 2
#8. P/N: N610155871AB | Part name: Cover(Front Side) | Qty: 1
#9. P/N: N510035101AA | Part name: Bolt | Remarks: LH0406 Trivalent Chromate | Qty: 8
#10. P/N: KXF00BFAA00 | Part name: Cam Follower | Remarks: CF3UU-A | Qty: 2
#11. P/N: N510017610AA | Part name: Bolt | Remarks: Hexagon socket Flat head bolt M3X10-10.9 A2J (Trivalent) | Qty: 30
#12. P/N: XVE3B4VW | Part name: Bolt | Remarks: Hexagon socket head cap screw M3X4-A2-70 | Qty: 22
#13. P/N: N510019221AA | Part name: Bolt | Remarks: LH0310 Trivalent Chromate | Qty: 3
