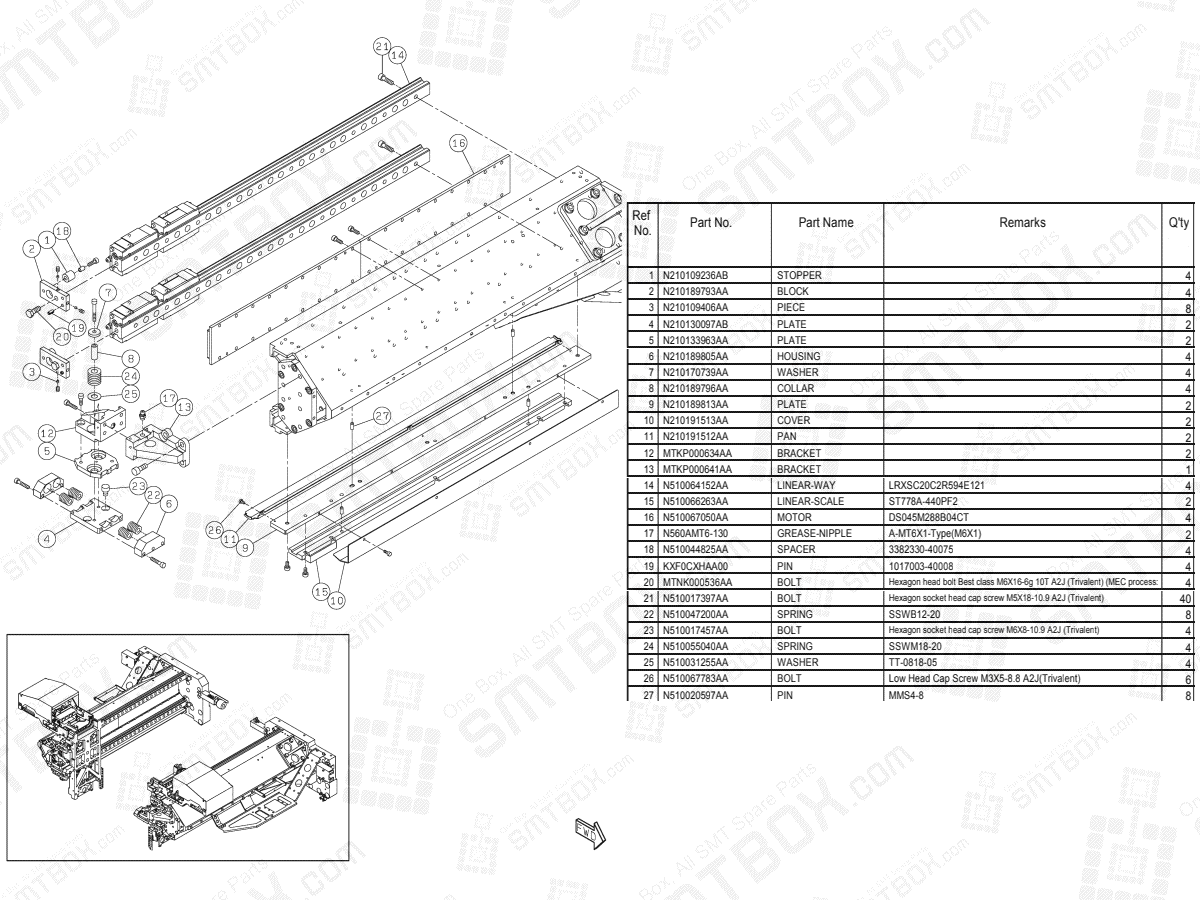

X-Axis N610160756AA KN610160756AA-13-2 on NPM-D3

#1. P/N: N210109236AB | Part name: Stopper | Qty: 4

#2. P/N: N210189793AA | Part name: Block | Qty: 4

#3. P/N: N210109406AA | Part name: Piece | Qty: 8

#4. P/N: N210130097AB | Part name: Plate | Qty: 2

#5. P/N: N210133963AA | Part name: Plate | Qty: 2

#6. P/N: N210189805AA | Part name: Housing | Qty: 4

#7. P/N: N210170739AA | Part name: Washer | Qty: 4

#8. P/N: N210189796AA | Part name: Collar | Qty: 4

#9. P/N: N210189813AA | Part name: Plate | Qty: 2

#10. P/N: N210191513AA | Part name: Cover | Qty: 2

#11. P/N: N210191512AA | Part name: Pan | Qty: 2

#12. P/N: MTKP000634AA | Part name: Bracket | Qty: 2

#13. P/N: MTKP000641AA | Part name: Bracket | Qty: 1

#14. P/N: N510064152AA | Part Name: Linear Way | Remarks: LRXSC20C2R594E121 | Qty: 4

#15. P/N: N510066263AA | Part Name: Linear Scale | Remarks: ST778A-440PF2 | Qty: 2

#16. P/N: N510067050AA | Part Name: Motor | Remarks: DS045M288B04CT | Qty: 4

#17. P/N: N560AMT6-130 | Part Name: Grease Nipple | Remarks: A-MT6X1-Type(M6X1) | Qty: 2

#18. P/N: N510044825AA | Part Name: Spacer | Remarks: 3382330-40075 | Qty: 4

#19. P/N: KXF0CXHAA00 | Part Name: Pin | Remarks: 1017003-40008 | Qty: 4

#20. P/N: MTNK000536AA | Part Name: Bolt | Remarks: Hexagon head bolt Best class M6X16-6g 10T A2J (Trivalent) MEC process: | Qty: 4

#21. P/N: N510017397AA | Part Name: Bolt | Remarks: Hexagon socket head cap screw M5X18-10.9 A2J (Trivalent) | Qty: 40

#22. P/N: N510047200AA | Part Name: Spring | Remarks: SSWB12-20 | Qty: 8

#23. P/N: N510017457AA | Part Name: Bolt | Remarks: Hexagon socket head cap screw M6X8-10.9 A2J (Trivalent) | Qty: 4

#24. P/N: N510055040AA | Part Name: Spring | Remarks: SSWM18-20 | Qty: 4

#25. P/N: N510031255AA | Part Name: Washer | Remarks: TT-0818-05 | Qty: 4

#26. P/N: N510067783AA | Part Name: Bolt | Remarks: Low Head Cap Screw M3X5-8.8 A2J(Trivalent) | Qty: 6

#27. P/N: N510020597AA | Part Name: Pin | Remarks: MMS4-8 | Qty: 8
