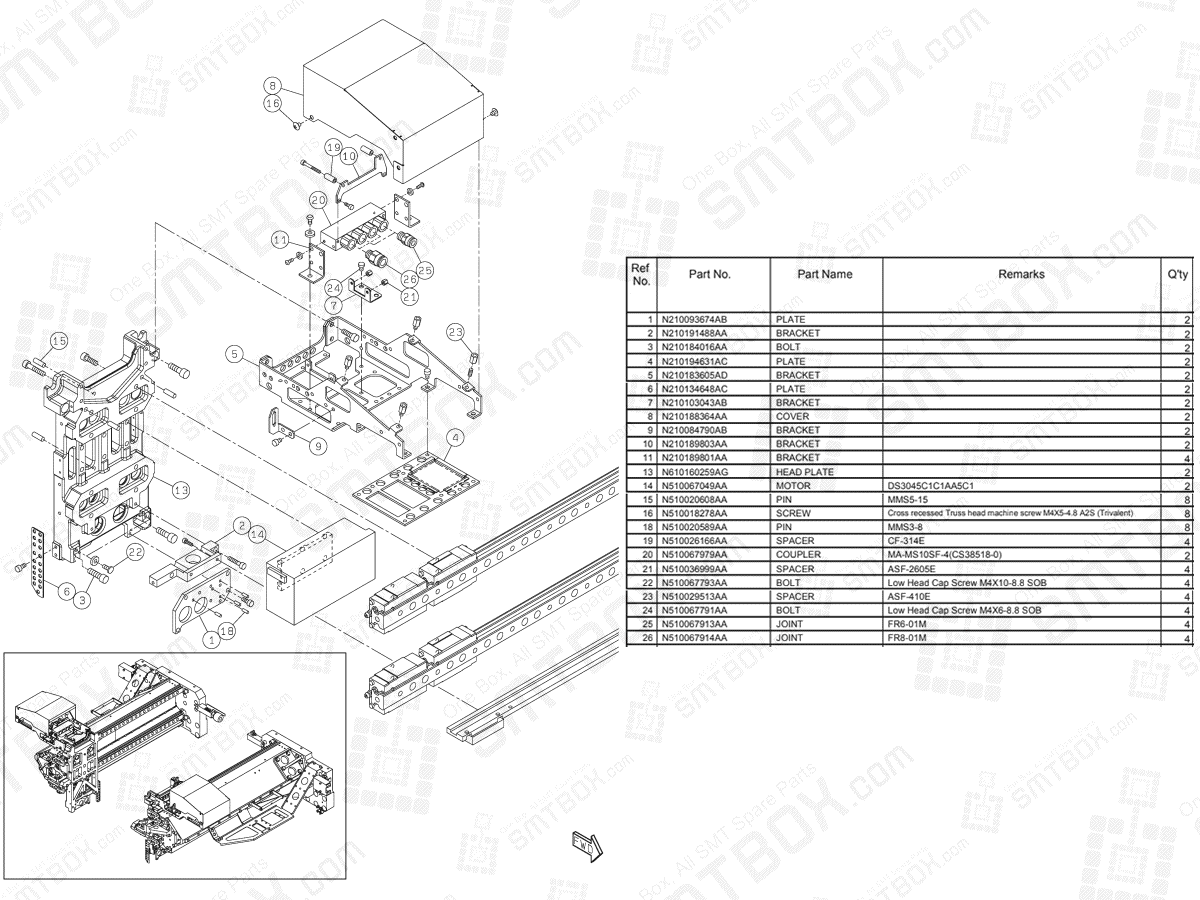

Panasonic NPM-D3 X-Axis N610160756AA KN610160756AA-13-3

Panasonic Npm D3 X Axis N610160756AA KN610160756AA 13

#1. P/N: N210093674AB | Part name: Plate | Qty: 2

#2. P/N: N210191488AA | Part name: Bracket | Qty: 2

#3. P/N: N210184016AA | Part name: Bolt | Qty: 2

#4. P/N: N210194631AC | Part name: Plate | Qty: 2

#5. P/N: N210183605AD | Part name: Bracket | Qty: 2

#6. P/N: N210134648AC | Part name: Plate | Qty: 2

#7. P/N: N210103043AB | Part name: Bracket | Qty: 2

#8. P/N: N210188364AA | Part name: Cover | Qty: 2

#9. P/N: N210084790AB | Part name: Bracket | Qty: 2

#10. P/N: N210189803AA | Part name: Bracket | Qty: 2

#11. P/N: N210189801AA | Part name: Bracket | Qty: 4

#13. P/N: N610160259AG | Part name: Head Plate | Qty: 2

#14. P/N: N510067049AA | Part name: Motor | Remarks: DS3045C1C1AA5C1 | Qty: 2

#15. P/N: N510020608AA | Part name: Pin | Remarks: MMS5-15 | Qty: 8

#16. P/N: N510018278AA | Part name: Screw | Remarks: Cross recessed Truss head machine screw M4X5-4.8 A2S (Trivalent) | Qty: 8

#18. P/N: N510020589AA | Part name: Pin | Remarks: MMS3-8 | Qty: 8

#19. P/N: N510026166AA | Part name: Spacer | Remarks: CF-314E | Qty: 4

#20. P/N: N510067979AA | Part name: Coupler | Remarks: MA-MS10SF-4(CS38518-0) | Qty: 2

#21. P/N: N510036999AA | Part name: Spacer | Remarks: ASF-2605E | Qty: 4

#22. P/N: N510067793AA | Part name: Bolt | Remarks: Low Head Cap Screw M4X10-8.8 SOB | Qty: 4

#23. P/N: N510029513AA | Part name: Spacer | Remarks: ASF-410E | Qty: 4

#24. P/N: N510067791AA | Part name: Bolt | Remarks: Low Head Cap Screw M4X6-8.8 SOB | Qty: 4

#25. P/N: N510067913AA | Part name: Joint | Remarks: FR6-01M | Qty: 4

#26. P/N: N510067914AA | Part name: Joint | Remarks: FR8-01M | Qty: 4
