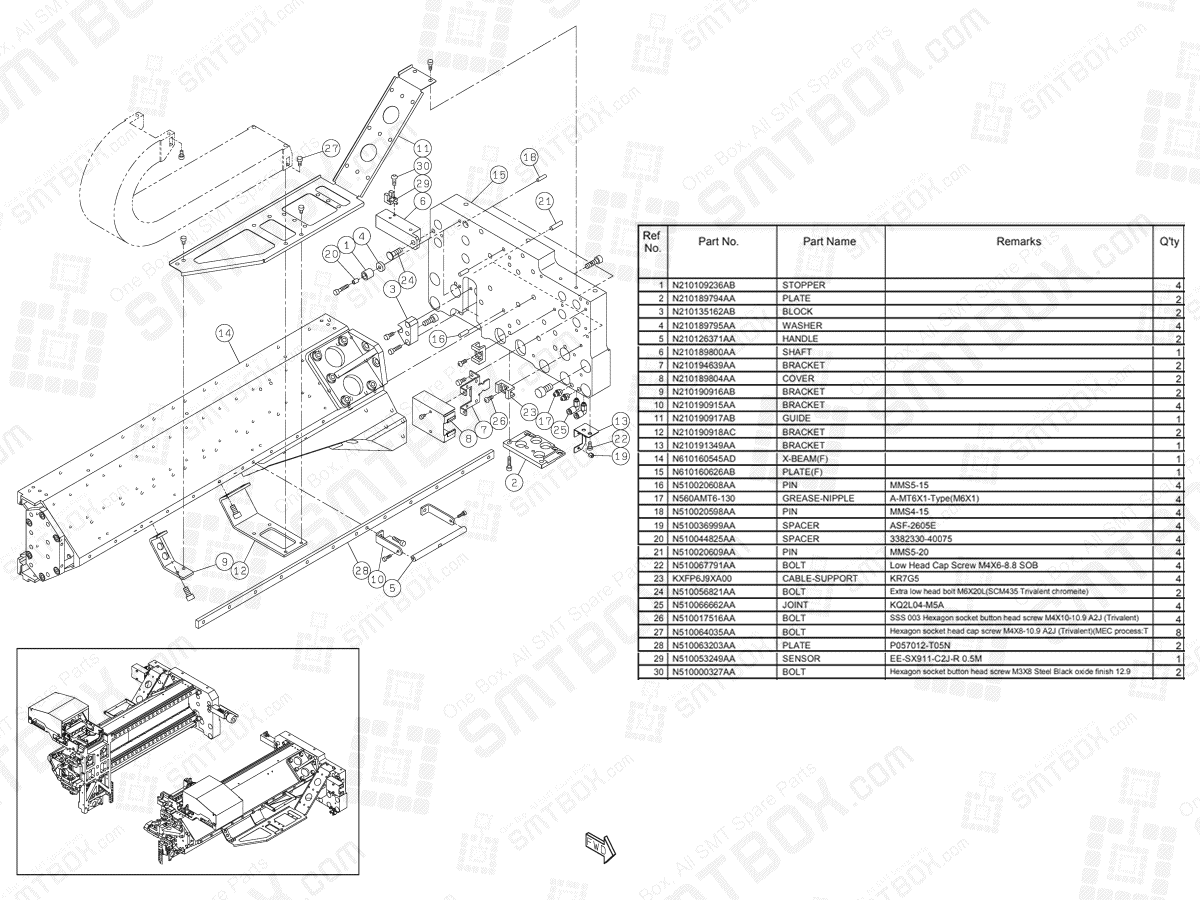

#1. P/N: N210109236AB | Part name: Stopper | Qty: 4
#2. P/N: N210189794AA | Part name: Plate | Qty: 2
#3. P/N: N210135162AB | Part name: Block | Qty: 2
#4. P/N: N210189795AA | Part name: Washer | Qty: 4
#5. P/N: N210126371AA | Part name: Handle | Qty: 2
#6. P/N: N210189800AA | Part name: Shaft 1 | Qty:
#7. P/N: N210194639AA | Part name: Bracket | Qty: 2
#8. P/N: N210189804AA | Part name: Cover 2 | Qty:
#9. P/N: N210190916AB | Part name: Bracket | Qty: 2
#10. P/N: N210190915AA | Part name: Bracket | Qty: 4
#11. P/N: N210190917AB | Part name: Guide | Qty: 1
#12. P/N: N210190918AC | Part name: Bracket | Qty: 2
#13. P/N: N210191349AA | Part name: Bracket | Qty: 1
#14. P/N: N610160545AD | Part name: X-Beam(F) | Qty: 1
#15. P/N: N610160626AB | Part name: Plate(F) | Qty: 1
#16. P/N: N510020608AA | Part name: Pin | Remarks: MMS5-15 | Qty: 4
#17. P/N: N560AMT6-130 | Part name: Grease-Nipple | Remarks: A-MT6X1-Type(M6X1) | Qty: 4
#18. P/N: N510020598AA | Part name: Pin | Remarks: MMS4-15 | Qty: 4
#19. P/N: N510036999AA | Part name: Spacer | Remarks: ASF-2605E | Qty: 4
#20. P/N: N510044825AA | Part name: Spacer | Remarks: 3382330-40075 | Qty: 4
#21. P/N: N510020609AA | Part name: Pin | Remarks: MMS5-20 | Qty: 4
#22. P/N: N510067791AA | Part name: Bolt | Remarks: Low Head Cap Screw M4X6-8.8 SOB | Qty: 4
#23. P/N: KXFP6J9XA00 | Part name: Cable-Support | Remarks: KR7G5 | Qty: 4
#24. P/N: N510056821AA | Part name: Bolt | Remarks: Extra low head bolt M6X20L(SCM435 Trivalent chromeite) | Qty: 2
#25. P/N: N510066662AA | Part name: Joint | Remarks: KQ2L04-M5A | Qty: 4
#26. P/N: N510017516AA | Part name: Bolt | Remarks: SSS 003 Hexagon socket button head screw M4X10-10.9 A2J (Trivalent) | Qty: 4
#27. P/N: N510064035AA | Part name: Bolt | Remarks: Hexagon socket head cap screw M4X8-10.9 A2J (Trivalent)(MEC process:T | Qty: 8
#28. P/N: N510063203AA | Part name: Plate | Remarks: P057012-T05N | Qty: 2
#29. P/N: N510053249AA | Part name: Sensor | Remarks: EE-SX911-C2J-R 0.5M | Qty: 1
#30. P/N: N510000327AA | Part name: Bolt | Remarks: Hexagon socket button head screw M3X8 Steel Black oxide finish 12.9 | Qty: 2
