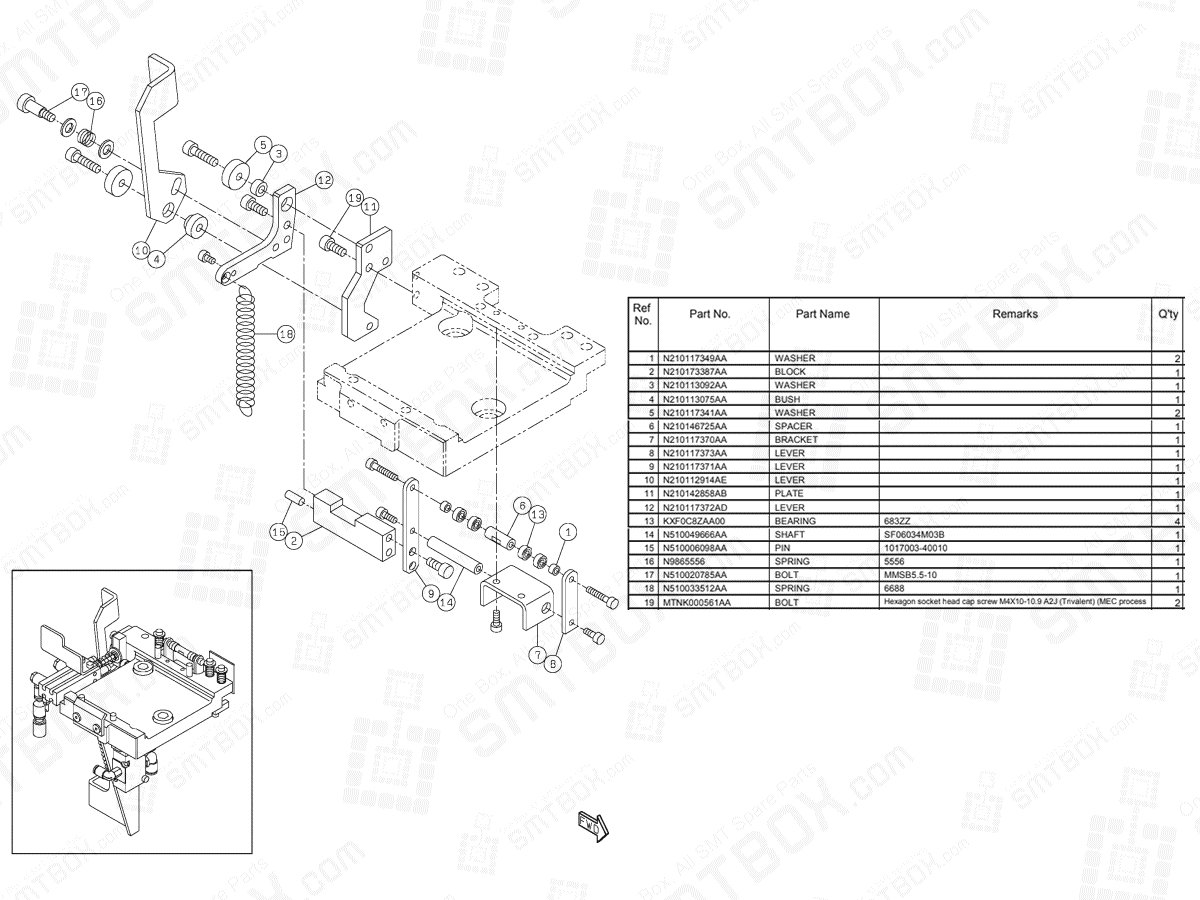

Panasonic NPM-D3 Head Option Driving Unit N610161110AA KN610161110AA-03-2

Panasonic Npm D3 Head Option Driving Unit N610161110AA KN610161110AA 03

#1. P/N: N210117349AA | Part name: Washer | Qty: 2

#2. P/N: N210173387AA | Part name: Block | Qty: 1

#3. P/N: N210113092AA | Part name: Washer | Qty: 1

#4. P/N: N210113075AA | Part name: Bush | Qty: 1

#5. P/N: N210117341AA | Part name: Washer | Qty: 2

#6. P/N: N210146725AA | Part name: Spacer | Qty: 1

#7. P/N: N210117370AA | Part name: Bracket | Qty: 1

#8. P/N: N210117373AA | Part name: Lever | Qty: 1

#9. P/N: N210117371AA | Part name: Lever | Qty: 1

#10. P/N: N210112914AE | Part name: Lever | Qty: 1

#11. P/N: N210142858AB | Part name: Plate | Qty: 1

#12. P/N: N210117372AD | Part name: Lever | Qty: 1

#13. P/N: KXF0C8ZAA00 | Part name: Bearing | Remarks: 683ZZ | Qty: 4

#14. P/N: N510049666AA | Part name: Shaft | Remarks: SF06034M03B | Qty: 1

#15. P/N: N510006098AA | Part name: Pin | Remarks: 1017003-40010 | Qty: 1

#16. P/N: N9865556 | Part name: Spring | Remarks: 5556 | Qty: 1

#17. P/N: N510020785AA | Part name: Bolt | Remarks: MMSB5.5-10 | Qty: 1

#18. P/N: N510033512AA | Part name: Spring | Remarks: 6688 | Qty: 1

#19. P/N: MTNK000561AA | Part name: Bolt | Remarks: Hexagon socket head cap screw M4X10-10.9 A2J (Trivalent) (MEC process | Qty: 2
