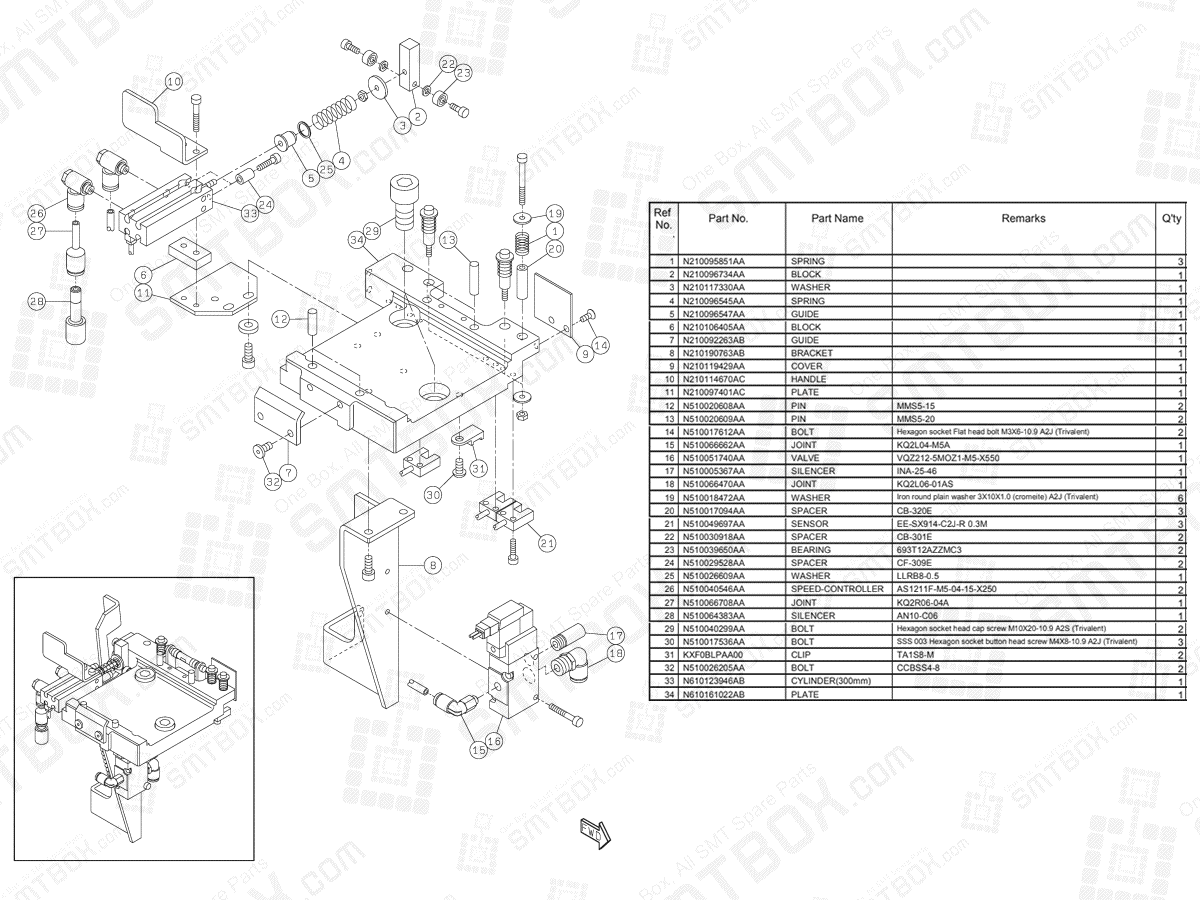

NPM-D3 Head Option Driving Unit N610161110AA

#1. P/N: N210095851AA | Part name: Spring | Qty: 3

#2. P/N: N210096734AA | Part name: Block | Qty: 1

#3. P/N: N210117330AA | Part name: Washer | Qty: 1

#4. P/N: N210096545AA | Part name: Spring | Qty: 1

#5. P/N: N210096547AA | Part name: Guide | Qty: 1

#6. P/N: N210106405AA | Part name: Block | Qty: 1

#7. P/N: N210092263AB | Part name: Guide | Qty: 1

#8. P/N: N210190763AB | Part name: Bracket | Qty: 1

#9. P/N: N210119429AA | Part name: Cover | Qty: 1

#10. P/N: N210114670AC | Part name: Handle | Qty: 1

#11. P/N: N210097401AC | Part name: Plate | Qty: 1

#12. P/N: N510020608AA | Part name: Pin | Remarks: MMS5-15 | Qty: 2

#13. P/N: N510020609AA | Part name: Pin | Remarks: MMS5-20 | Qty: 2

#14. P/N: N510017612AA | Part name: Bolt | Remarks: Hexagon socket Flat head bolt M3X6-10.9 A2J (Trivalent) | Qty: 2

#15. P/N: N510066662AA | Part name: Joint | Remarks: KQ2L04-M5A | Qty: 1

#16. P/N: N510051740AA | Part name: Valve | Remarks: VQZ212-5MOZ1-M5-X550 | Qty: 1

#17. P/N: N510005367AA | Part name: Silencer | Remarks: INA-25-46 | Qty: 1

#18. P/N: N510066470AA | Part name: Joint | Remarks: KQ2L06-01AS | Qty: 1

#19. P/N: N510018472AA | Part name: Washer | Remarks: Iron round plain washer 3X10X1.0 (cromeite) A2J (Trivalent) | Qty: 6

#20. P/N: N510017094AA | Part name: Spacer | Remarks: CB-320E | Qty: 3

#21. P/N: N510049697AA | Part name: Sensor | Remarks: EE-SX914-C2J-R 0.3M | Qty: 3

#22. P/N: N510030918AA | Part name: Spacer | Remarks: CB-301E | Qty: 2

#23. P/N: N510039650AA | Part name: Bearing | Remarks: 693T12AZZMC3 | Qty: 2

#24. P/N: N510029528AA | Part name: Spacer | Remarks: CF-309E | Qty: 2

#25. P/N: N510026609AA | Part name: Washer | Remarks: LLRB8-0.5 | Qty: 1

#26. P/N: N510040546AA | Part name: Speed-Controller | Remarks: AS1211F-M5-04-15-X250 | Qty: 2

#27. P/N: N510066708AA | Part name: Joint | Remarks: KQ2R06-04A | Qty: 1

#28. P/N: N510064383AA | Part name: Silencer | Remarks: AN10-C06 | Qty: 1

#29. P/N: N510040299AA | Part name: Bolt | Remarks: Hexagon socket head cap screw M10X20-10.9 A2S (Trivalent) | Qty: 2

#30. P/N: N510017536AA | Part name: Bolt | Remarks: SSS 003 Hexagon socket button head screw M4X8-10.9 A2J (Trivalent) | Qty: 3

#31. P/N: KXF0BLPAA00 | Part name: Clip | Remarks: TA1S8-M | Qty: 2

#32. P/N: N510026205AA | Part name: Bolt | Remarks: CCBSS4-8 | Qty: 2

#33. P/N: N610123946AB | Part name: Cylinder(300Mm) | Qty: 1

#34. P/N: N610161022AB | Part name: Plate | Qty: 1
