Panasonic NPM-D3 Whole Cover N610160758AA

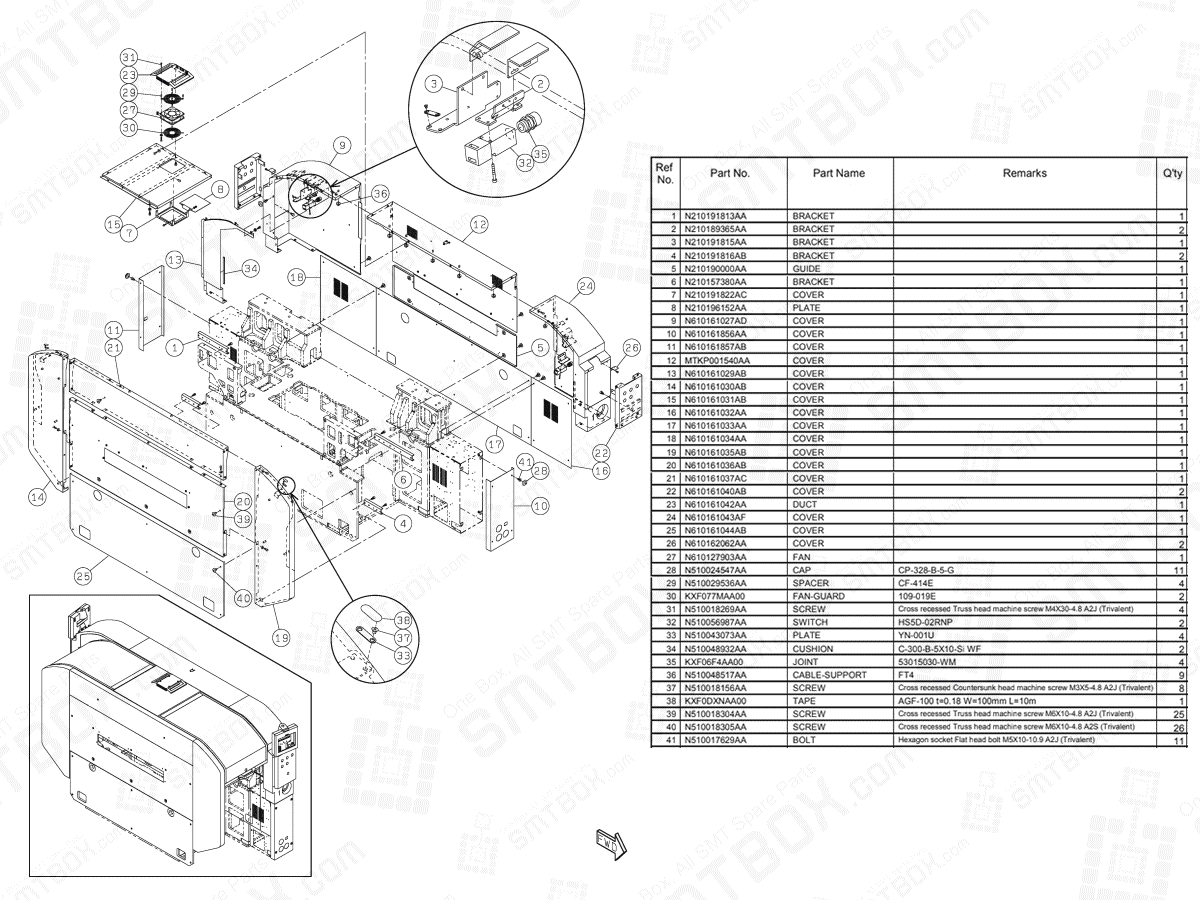

KN610160758AA-15-1:

#1. P/N: N210191813AA | Part name: Bracket | Qty: 1

#2. P/N: N210189365AA | Part name: Bracket | Qty: 2

#3. P/N: N210191815AA | Part name: Bracket | Qty: 1

#4. P/N: N210191816AB | Part name: Bracket | Qty: 2

#5. P/N: N210190000AA | Part name: Guide | Qty: 1

#6. P/N: N210157380AA | Part name: Bracket | Qty: 1

#7. P/N: N210191822AC | Part name: Cover | Qty: 1

#8. P/N: N210196152AA | Part name: Plate | Qty: 1

#9. P/N: N610161027AD | Part name: Cover | Qty: 1

#10. P/N: N610161856AA | Part name: Cover | Qty: 1

#11. P/N: N610161857AB | Part name: Cover | Qty: 1

#12. P/N: MTKP001540AA | Part name: Cover | Qty: 1

#13. P/N: N610161029AB | Part name: Cover | Qty: 1

#14. P/N: N610161030AB | Part name: Cover | Qty: 1

#15. P/N: N610161031AB | Part name: Cover | Qty: 1

#16. P/N: N610161032AA | Part name: Cover | Qty: 1

#17. P/N: N610161033AA | Part name: Cover | Qty: 1

#18. P/N: N610161034AA | Part name: Cover | Qty: 1

#19. P/N: N610161035AB | Part name: Cover | Qty: 1

#20. P/N: N610161036AB | Part name: Cover | Qty: 1

#21. P/N: N610161037AC | Part name: Cover | Qty: 1

#22. P/N: N610161040AB | Part name: Cover | Qty: 2

#23. P/N: N610161042AA | Part name: Duct | Qty: 1

#24. P/N: N610161043AF | Part name: Cover | Qty: 1

#25. P/N: N610161044AB | Part name: Cover | Qty: 1

#26. P/N: N610162062AA | Part name: Cover | Qty: 2

#27. P/N: N610127903AA | Part name: Fan | Qty: 1

#28. P/N: N510024547AA | Part name: Cap | Remarks: CP-328-B-5-G 1 | Qty: 1

#29. P/N: N510029536AA | Part name: Spacer | Remarks: CF-414E | Qty: 4

#30. P/N: KXF077MAA00 | Part name: Fan Guard | Remarks: 109-019E | Qty: 2

#31. P/N: N510018269AA | Part name: Screw | Remarks: Cross recessed Truss head machine screw M4X30-4.8 A2J (Trivalent) | Qty: 4

#32. P/N: N510056987AA | Part name: Switch | Remarks: HS5D-02RNP | Qty: 2

#33. P/N: N510043073AA | Part name: Plate | Remarks: YN-001U | Qty: 4

#34. P/N: N510048932AA | Part name: Cushion | Remarks: C-300-B-5X10-Si WF | Qty: 2

#35. P/N: KXF06F4AA00 | Part name: Joint | Remarks: 53015030-WM | Qty: 4

#36. P/N: N510048517AA | Part name: Cable Support | Remarks: FT4 | Qty: 9

#37. P/N: N510018156AA | Part name: Screw | Remarks: Cross recessed Countersunk head machine screw M3X5-4.8 A2J (Trivalent) | Qty: 8

#38. P/N: KXF0DXNAA00 | Part name: Tape | Remarks: AGF-100 t=0.18 W=100mm L=10m | Qty: 1

#39. P/N: N510018304AA | Part name: Screw | Remarks: Cross recessed Truss head machine screw M6X10-4.8 A2J (Trivalent) | Qty: 25

#40. P/N: N510018305AA | Part name: Screw | Remarks: Cross recessed Truss head machine screw M6X10-4.8 A2S (Trivalent) | Qty: 26

#41. P/N: N510017629AA | Part name: Bolt | Remarks: Hexagon socket Flat head bolt M5X10-10.9 A2J (Trivalent) | Qty: 1 | Qty: 1

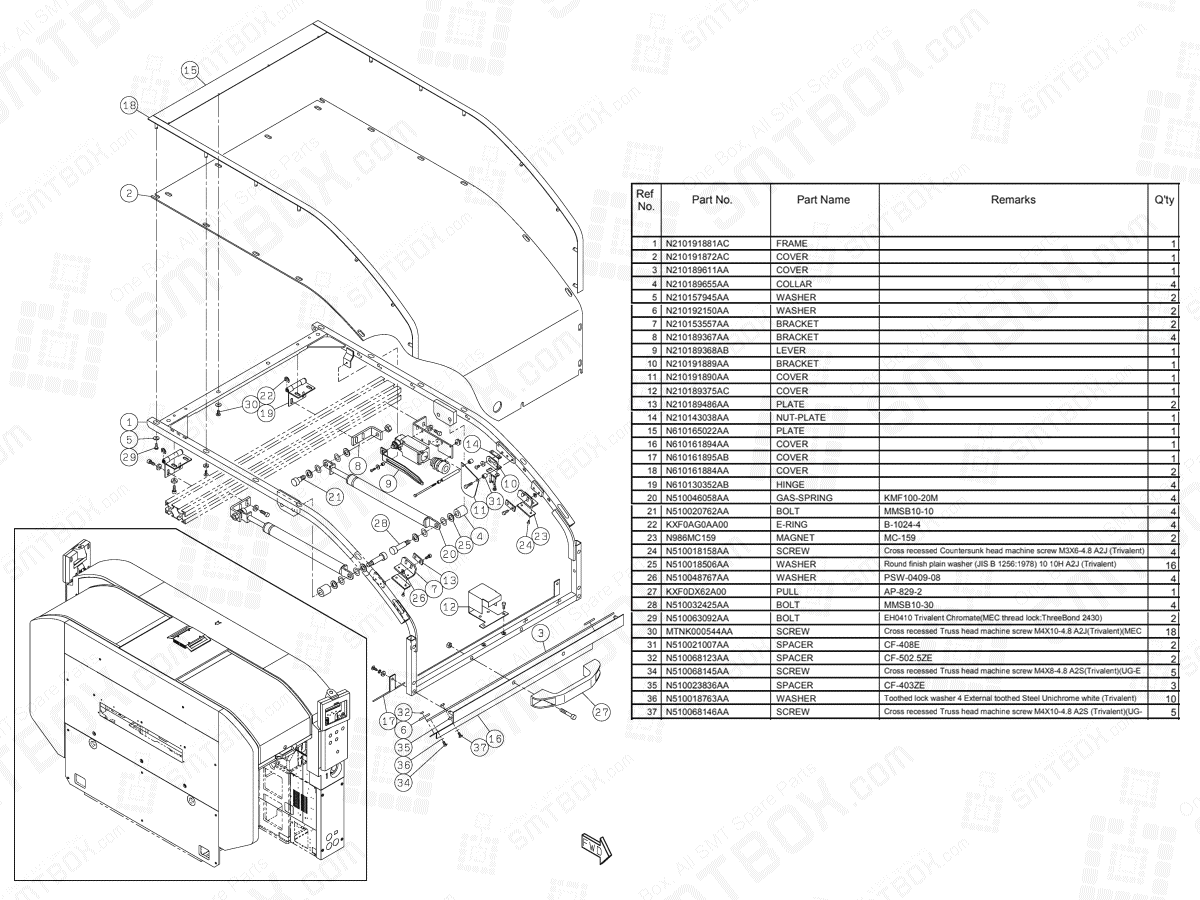

KN610160758AA-15-2

#1. P/N: N210191881AC | Part name: Frame | Qty: 1

#2. P/N: N210191872AC | Part name: Cover | Qty: 1

#3. P/N: N210189611AA | Part name: Cover | Qty: 1

#4. P/N: N210189655AA | Part name: Collar | Qty: 4

#5. P/N: N210157945AA | Part name: Washer | Qty: 2

#6. P/N: N210192150AA | Part name: Washer | Qty: 2

#7. P/N: N210153557AA | Part name: Bracket | Qty: 2

#8. P/N: N210189367AA | Part name: Bracket | Qty: 4

#9. P/N: N210189368AB | Part name: Lever | Qty: 1

#10. P/N: N210191889AA | Part name: Bracket | Qty: 1

#11. P/N: N210191890AA | Part name: Cover | Qty: 1

#12. P/N: N210189375AC | Part name: Cover | Qty: 1

#13. P/N: N210189486AA | Part name: Plate | Qty: 2

#14. P/N: N210143038AA | Part name: Nut Plate | Qty: 1

#15. P/N: N610165022AA | Part name: Plate | Qty: 1

#16. P/N: N610161894AA | Part name: Cover | Qty: 1

#17. P/N: N610161895AB | Part name: Cover | Qty: 1

#18. P/N: N610161884AA | Part name: Cover | Qty: 2

#19. P/N: N610130352AB | Part name: Hinge | Qty: 4

#20. P/N: N510046058AA | Part name: Gas Spring | Remarks: KMF100-20M | Qty: 4

#21. P/N: N510020762AA | Part name: Bolt | Remarks: MMSB10-10 | Qty: 4

#22. P/N: KXF0AG0AA00 | Part name: E-Ring | Remarks: B-1024-4 | Qty: 4

#23. P/N: N986MC159 | Part name: Magnet | Remarks: MC-159 | Qty: 2

#24. P/N: N510018158AA | Part name: Screw | Remarks: Cross recessed Countersunk head machine screw M3X6-4.8 A2J (Trivalent) | Qty: 4

#25. P/N: N510018506AA | Part name: Washer | Remarks: Round finish plain washer (JIS B 1256:1978) 10 10H A2J (Trivalent) | Qty: 16

#26. P/N: N510048767AA | Part name: Washer | Remarks: PSW-0409-08 | Qty: 4

#27. P/N: KXF0DX62A00 | Part name: Pull | Remarks: AP-829-2 | Qty: 1

#28. P/N: N510032425AA | Part name: Bolt | Remarks: MMSB10-30 | Qty: 4

#29. P/N: N510063092AA | Part name: Bolt | Remarks: EH0410 Trivalent Chromate(MEC thread lock:ThreeBond 2430) | Qty: 2

#30. P/N: MTNK000544AA | Part name: Screw | Remarks: Cross recessed Truss head machine screw M4X10-4.8 A2J(Trivalent)(MEC | Qty: 18

#31. P/N: N510021007AA | Part name: Spacer | Remarks: CF-408E | Qty: 2

#32. P/N: N510068123AA | Part name: Spacer | Remarks: CF-502.5ZE | Qty: 2

#34. P/N: N510068145AA | Part name: Screw | Remarks: Cross recessed Truss head machine screw M4X8-4.8 A2S(Trivalent)(UG-E | Qty: 5

#35. P/N: N510023836AA | Part name: Spacer | Remarks: CF-403ZE 3

#36. P/N: N510018763AA | Part name: Washer | Remarks: Toothed lock washer 4 External toothed Steel Unichrome white (Trivalent) | Qty: 10

#37. P/N: N510068146AA | Part name: Screw | Remarks: Cross recessed Truss head machine screw M4X10-4.8 A2S (Trivalent) | Qty: 5

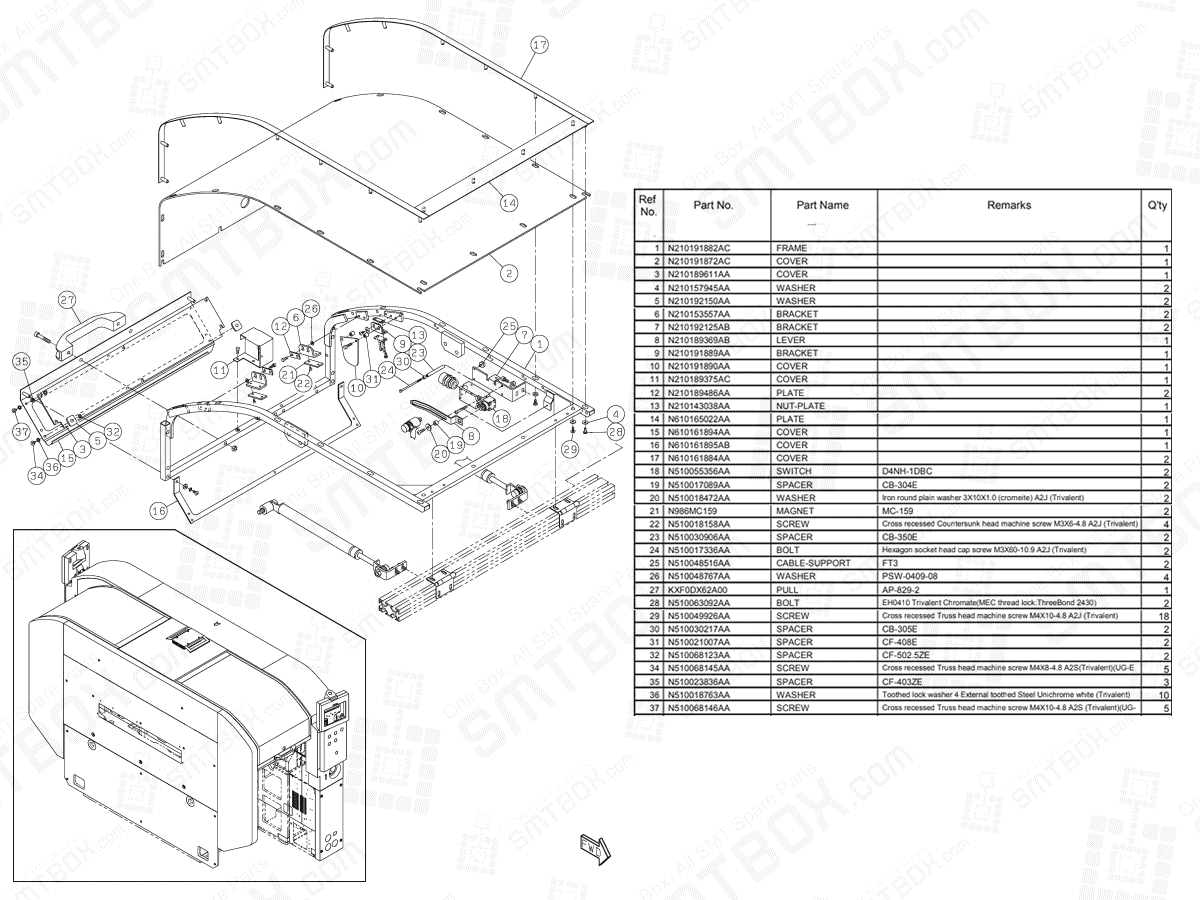

KN610160758AA-15-3

#1. P/N: N210191882AC | Part name: Frame | Qty: 1

#2. P/N: N210191872AC | Part name: Cover | Qty: 1

#3. P/N: N210189611AA | Part name: Cover | Qty: 1

#4. P/N: N210157945AA | Part name: Washer | Qty: 2

#5. P/N: N210192150AA | Part name: Washer | Qty: 2

#6. P/N: N210153557AA | Part name: Bracket | Qty: 2

#7. P/N: N210192125AB | Part name: Bracket | Qty: 2

#8. P/N: N210189369AB | Part name: Lever | Qty: 1

#9. P/N: N210191889AA | Part name: Bracket | Qty: 1

#10. P/N: N210191890AA | Part name: Cover | Qty: 1

#11. P/N: N210189375AC | Part name: Cover | Qty: 1

#12. P/N: N210189486AA | Part name: Plate | Qty: 2

#13. P/N: N210143038AA | Part name: Nut Plate | Qty: 1

#14. P/N: N610165022AA | Part name: Plate | Qty: 1

#15. P/N: N610161894AA | Part name: Cover | Qty: 1

#16. P/N: N610161895AB | Part name: Cover | Qty: 1

#17. P/N: N610161884AA | Part name: Cover | Qty: 2

#18. P/N: N510055356AA | Part name: Switch | Remarks: D4NH-1DBC | Qty: 2

#19. P/N: N510017089AA | Part name: Spacer | Remarks: CB-304E | Qty: 2

#20. P/N: N510018472AA | Part name: Washer | Remarks: Iron round plain washer 3X10X1.0 (cromeite) A2J (Trivalent) | Qty: 2

#21. P/N: N986MC159 | Part name: Magnet | Remarks: MC-159 | Qty: 2

#22. P/N: N510018158AA | Part name: Screw | Remarks: Cross recessed Countersunk head machine screw M3X6-4.8 A2J (Trivalent) | Qty: 4

#23. P/N: N510030906AA | Part name: Spacer | Remarks: CB-350E | Qty: 2

#24. P/N: N510017336AA | Part name: Bolt | Remarks: Hexagon socket head cap screw M3X60-10.9 A2J (Trivalent) | Qty: 2

#25. P/N: N510048516AA | Part name: Cable Support | Remarks: FT3 | Qty: 2

#26. P/N: N510048767AA | Part name: Washer | Remarks: PSW-0409-08 | Qty: 4

#27. P/N: KXF0DX62A00 | Part name: Pull | Remarks: AP-829-2 | Qty: 1

#28. P/N: N510063092AA | Part name: Bolt | Remarks: EH0410 Trivalent Chromate(MEC thread lock:ThreeBond 2430) | Qty: 2

#29. P/N: N510049926AA | Part name: Screw | Remarks: Cross recessed Truss head machine screw M4X10-4.8 A2J (Trivalent) | Qty: 18

#30. P/N: N510030217AA | Part name: Spacer | Remarks: CB-305E | Qty: 2

#31. P/N: N510021007AA | Part name: Spacer | Remarks: CF-408E | Qty: 2

#32. P/N: N510068123AA | Part name: Spacer | Remarks: CF-502.5ZE | Qty: 2

#34. P/N: N510068145AA | Part name: Screw | Remarks: Cross recessed Truss head machine screw M4X8-4.8 A2S(Trivalent)(UG-E | Qty: 5

#35. P/N: N510023836AA | Part name: Spacer | Remarks: CF-403ZE | Qty: 3

#36. P/N: N510018763AA | Part name: Washer | Remarks: Toothed lock washer 4 External toothed Steel Unichrome white (Trivalent) | Qty: 10

#37. P/N: N510068146AA | Part name: Screw | Remarks: Cross recessed Truss head machine screw M4X10-4.8 A2S (Trivalent)(UG- | Qty: 5

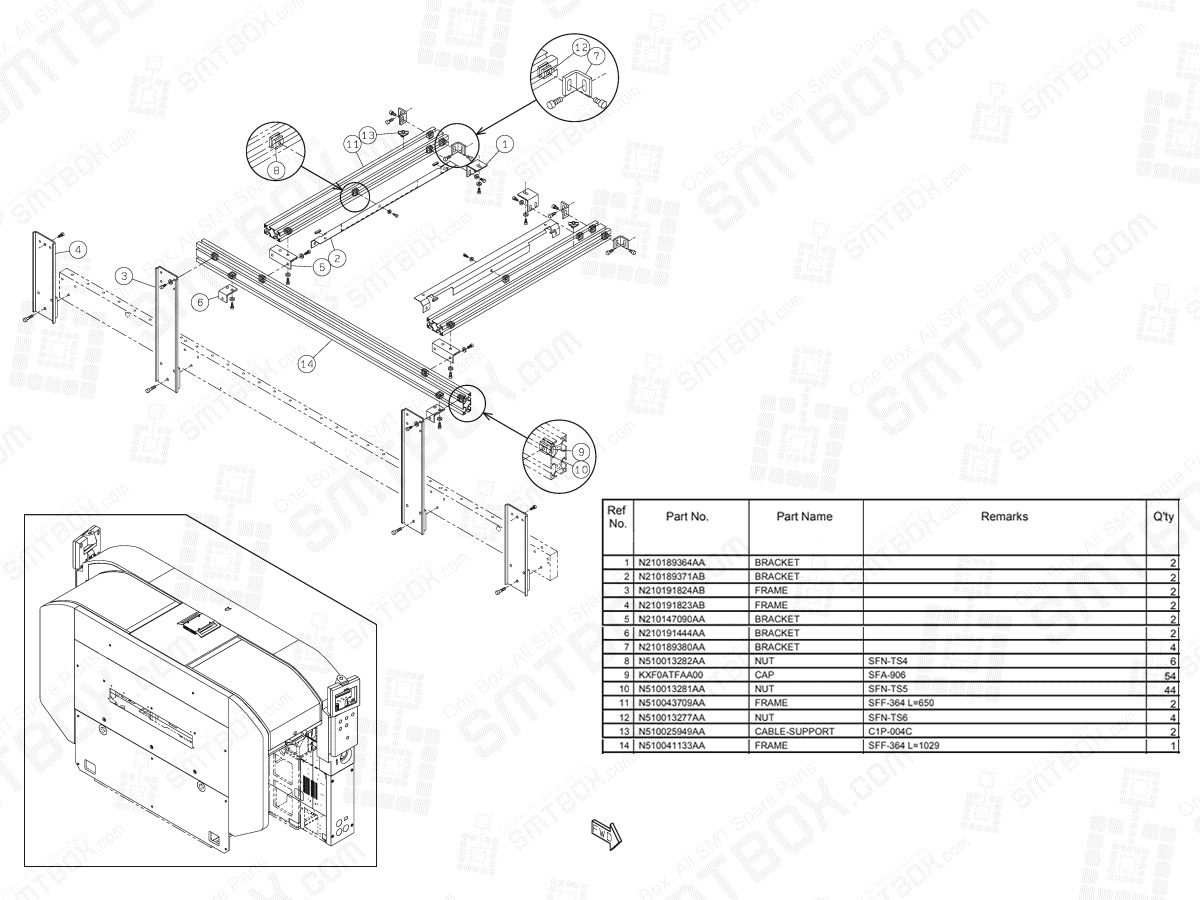

KN610160758AA-15-4

#1. P/N: N210189364AA | Part name: Bracket | Qty: 2

#2. P/N: N210189371AB | Part name: Bracket | Qty: 2

#3. P/N: N210191824AB | Part name: Frame | Qty: 2

#4. P/N: N210191823AB | Part name: Frame | Qty: 2

#5. P/N: N210147090AA | Part name: Bracket | Qty: 2

#6. P/N: N210191444AA | Part name: Bracket | Qty: 2

#7. P/N: N210189380AA | Part name: Bracket | Qty: 4

#8. P/N: N510013282AA | Part name: Nut | Remarks: SFN-TS4 | Qty: 6

#9. P/N: KXF0ATFAA00 | Part name: Cap | Remarks: SFA-906 | Qty: 54

#10. P/N: N510013281AA | Part name: Nut | Remarks: SFN-TS5 | Qty: 44

#11. P/N: N510043709AA | Part name: Frame | Remarks: SFF-364 L=650 | Qty: 2

#12. P/N: N510013277AA | Part name: Nut | Remarks: SFN-TS6 | Qty: 4

#13. P/N: N510025949AA | Part name: Cable Support | Remarks: C1P-004C | Qty: 2

#14. P/N: N510041133AA | Part name: Frame | Remarks: SFF-364 L=1029 | Qty: 1

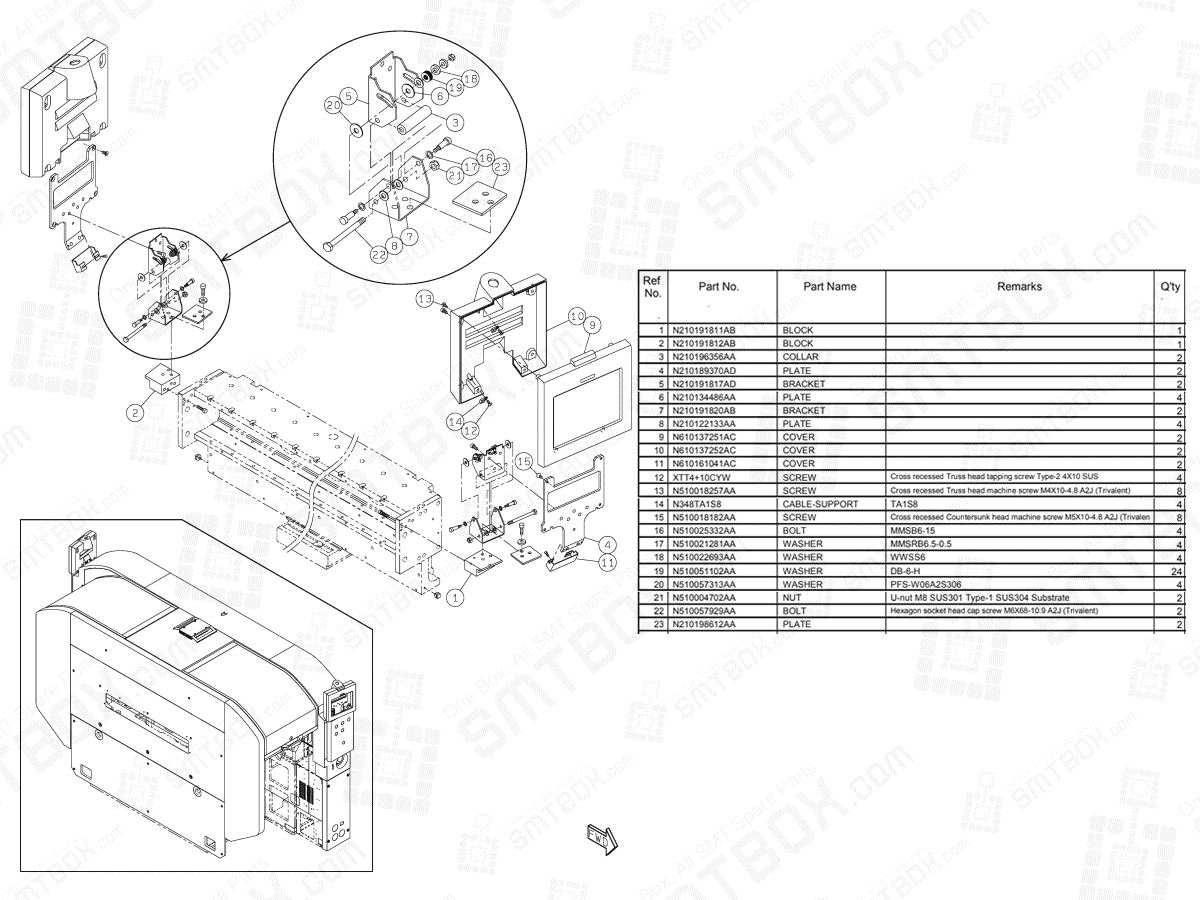

KN610160758AA-15-5

#1. P/N: N210191811AB | Part name: Block | Qty: 1

#2. P/N: N210191812AB | Part name: Block | Qty: 1

#3. P/N: N210196356AA | Part name: Collar | Qty: 2

#4. P/N: N210189370AD | Part name: Plate | Qty: 2

#5. P/N: N210191817AD | Part name: Bracket | Qty: 2

#6. P/N: N210134486AA | Part name: Plate | Qty: 4

#7. P/N: N210191820AB | Part name: Bracket | Qty: 2

#8. P/N: N210122133AA | Part name: Plate | Qty: 4

#9. P/N: N610137251AC | Part name: Cover | Qty: 2

#10. P/N: N610137252AC | Part name: Cover | Qty: 2

#11. P/N: N610161041AC | Part name: Cover | Qty: 2

#12. P/N: XTT4+10CYW | Part name: Screw | Remarks: Cross recessed Truss head tapping screw Type-2 4X10 SUS | Qty: 4

#13. P/N: N510018257AA | Part name: Screw | Remarks: Cross recessed Truss head machine screw M4X10-4.8 A2J (Trivalent) | Qty: 8

#14. P/N: N348TA1S8 | Part name: Cable Support | Remarks: TA1S8 | Qty: 4

#15. P/N: N510018182AA | Part name: Screw | Remarks: Cross recessed Countersunk head machine screw M5X10-4.8 A2J (Trivalent) | Qty: 8

#16. P/N: N510025332AA | Part name: Bolt | Remarks: MMSB6-15 | Qty: 4

#17. P/N: N510021281AA | Part name: Washer | Remarks: MMSRB6.5-0.5 | Qty: 4

#18. P/N: N510022693AA | Part name: Washer | Remarks: WWSS6 | Qty: 4

#19. P/N: N510051102AA | Part name: Washer | Remarks: DB-6-H 2 | Qty: 4

#20. P/N: N510057313AA | Part name: Washer | Remarks: PFS-W06A2S306 | Qty: 4

#21. P/N: N510004702AA | Part name: Nut | Remarks: U-nut M8 SUS301 Type-1 SUS304 Substrate | Qty: 2

#22. P/N: N510057929AA | Part name: Bolt | Remarks: Hexagon socket head cap screw M6X68-10.9 A2J (Trivalent) | Qty: 2

#23. P/N: N210198612AA | Part name: Plate | Qty: 2
