GXH-3 4Unit/1Machine
GXH-3J 2Unit/1Machine

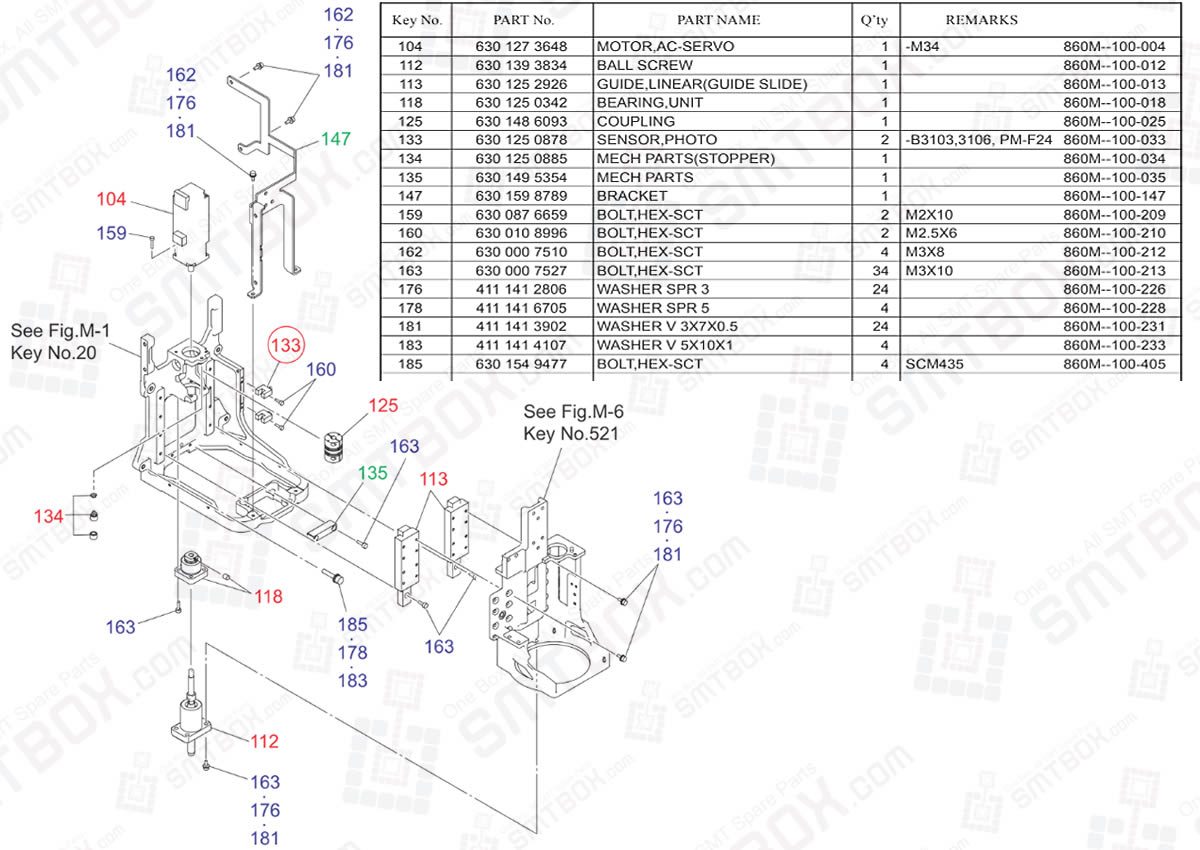

#104. P/N: 630 127 3648 | Motor Ac-Servo -M34
#112. P/N: 630 139 3834 | Ball Screw
#113. P/N: 630 125 2926 | Guide Linear(Guide Slide)
#118. P/N: 630 125 0342 | Bearing Unit
#125. P/N: 630 148 6093 | Coupling
#133. P/N: 630 125 0878 | Sensor Photo -B3103 3106 Pm-F24
#134. P/N: 630 125 0885 | Mech Parts(Stopper)
#135. P/N: 630 149 5354 | Mech Parts
#147. P/N: 630 159 8789 | Bracket
#159. P/N: 630 087 6659 | Bolt Hex-Sct M2X10
#160. P/N: 630 010 8996 | Bolt Hex-Sct M2.5X6
#162. P/N: 630 000 7510 | Bolt Hex-Sct M3X8
#163. P/N: 630 000 7527 | Bolt Hex-Sct M3X10
#176. P/N: 411 141 2806 | Washer Spr 3
#178. P/N: 411 141 6705 | Washer Spr 5
#181. P/N: 411 141 3902 | Washer V 3X7X0.5
#183. P/N: 411 141 4107 | Washer V 5X10X1
#185. P/N: 630 154 9477 | Bolt Hex-Sct Scm435
Notice) The Key No. 133 (with a circle) is an important maintenance component. Because high-grade technique is required for the replacement of this component, consult our service personnel.
