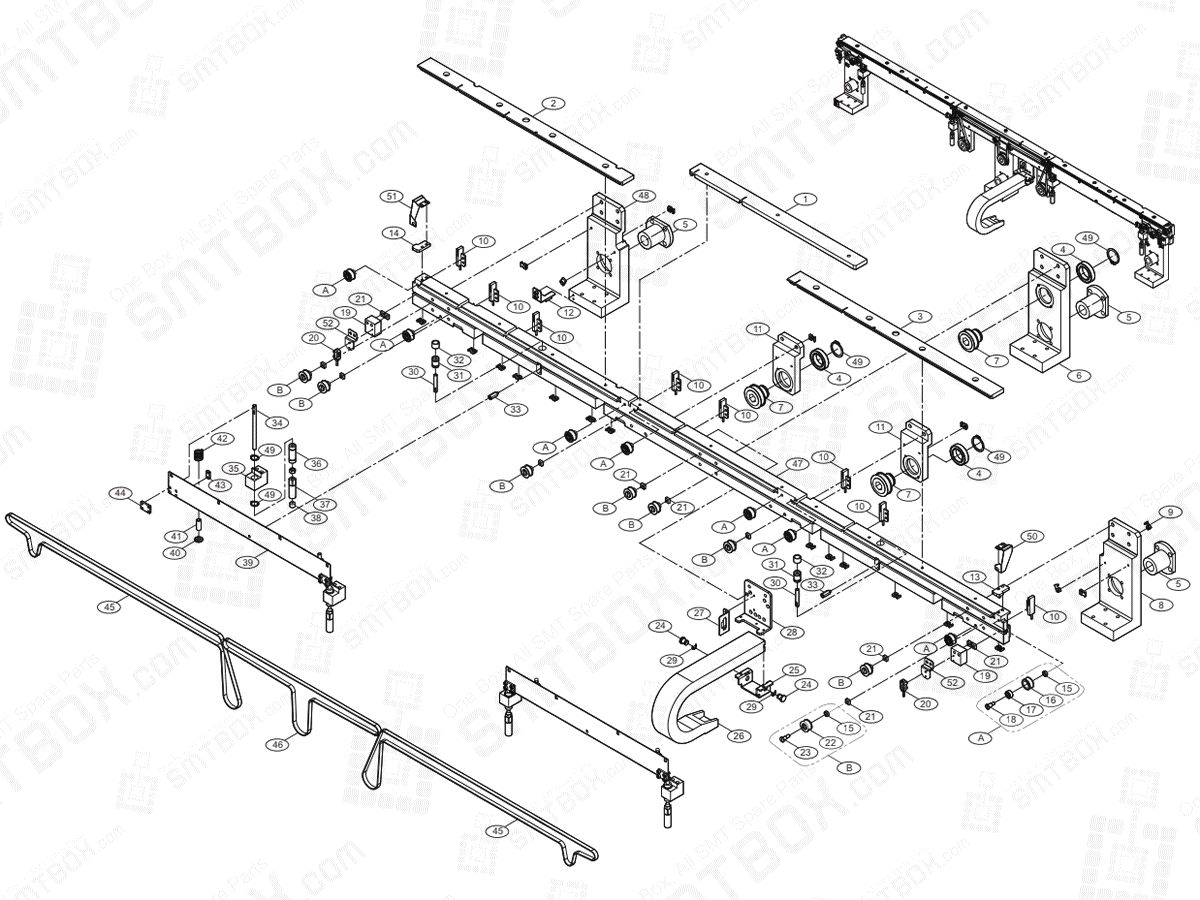

Conveyor(3/7) Front Move On Hanwha Techwin Excellent Modular EXCEN PRO (D) (M) (L) SMT Component Placer

Conveyor(3/7) Front Move On Hanwha Techwin Excellent Modular EXCEN PRO (D) (M) (L) SMT Component Placer

#1. P/N: FC30-001038A | Part name: Plate Pcb Guide Fix Waiting 2 (Left To Right) | Qty: 1

#1. P/N: FC30-001037A | Part name: Pcb Guide Fix Waiting 1 (Right To Left) | Qty: 1

#2. P/N: FC30-001043B | Part name: Plate Pcb Guide Front Move L (Left To Right) | Qty: 1

#2. P/N: FC30-001046B | Part name: Pcb Guide Rear Move R (Right To Left) | Qty: 1

#3. P/N: FC30-001044B | Part name: Plate Pcb Guide Front Move R (Left To Right) | Qty: 1 | Old P/N: FC30-001045A

#3. P/N: FC30-001045B | Part name: Pcb Guide Rear Move L (Right To Left) | Qty: 1

#4. P/N: MC03-900113 | Part name: Bearing B6804Zz | Qty: 3

#5. P/N: MC13-900238 | Part name: Lead Screw Nut | Qty: 3

#6. P/N: FC29-001431A | Part name: Stand Move Stand M V1P | Qty: 1

#7. P/N: MC19-000423A | Part name: Pulley Spline Move S2M | Qty: 3

#8. P/N: FC29-001433A | Part name: Stand Move Stand Side D V1P | Qty: 1

#9. P/N: FC18-903190 | Part name: Profile Mount Dia4.0 2 | Qty: 1

#10. P/N: EP19-900171 | Part name: Sensor Fiber Head E32 T16Pr 3 | Qty: 8

#11. P/N: FC09-002046A | Part name: Bracket Spline Support Bkt | Qty: 2

#12. P/N: J70532082A | Part name: Width Sensor Dog J70532082A | Qty: 1

#13. P/N: J72531034A | Part name: Edge Guide | Qty: 1

#14. P/N: J72531035A | Part name: Edge Guide 2 | Qty: 1

#15. P/N: J70532064A | Part name: Idler Spacer J70532064A 1 | Qty: 6

#16. P/N: MC19-000422A | Part name: Pulley Idler S2M | Qty: 8

#17. P/N: MC03-900045 | Part name: Ball Bearing 685Zz Stf100N #685Zz | Qty: 8

#18. P/N: J70531836A | Part name: Idler Shaft J70531836A | Qty: 8

#19. P/N: FC07-000487B | Part name: Block Pin Detect Sensor Block | Qty: 2 | Old P/N: FC07-000487A

#20. P/N: EP19-900083 | Part name: Electric Switch | Qty: 2

#21. P/N: J7053184A | Part name: Square Nut M4 1 | Qty: 2

#22. P/N: J72531001A | Part name: Idler 2 J72531001A | Qty: 8

#23. P/N: J70532065A | Part name: Idler Shaft J70532065A | Qty: 8

#24. P/N: MC19-000282A | Part name: Shaft Cableveyor Fix Shaft | Qty: 2

#25. P/N: FC09-001387A | Part name: Bracket Cableveyor Move Bkt | Qty: 1

#26. P/N: MC08-000012 | Part name: Chain Hsp180 2Bn 28R 17Rink | Qty: 1

#27. P/N: J70532083A | Part name: Sensor Bkt J70532083A | Qty: 1

#28. P/N: J70532077A | Part name: Cablebear Move Bkt J70532077A | Qty: 1

#29. P/N: FC18-901336 | Part name: E Ring Dia4 | Qty: 2

#30. P/N: MC19-000426A | Part name: Shaft Ball Bush Shaft M | Qty: 2

#31. P/N: MC06-900006 | Part name: Ball Bush Lmu5 | Qty: 2

#32. P/N: FC29-001426A | Part name: Collar Ball Bush Collar | Qty: 2

#33. P/N: MC19-000427A | Part name: Shaft Hex Post M | Qty: 2

#34. P/N: J70532067A | Part name: Clamp Ball Bush Shaft J70532067A | Qty: 4

#35. P/N: FC07-000718A | Part name: Bush 1 | Qty: 4 | Old P/N: J71531397A

#36. P/N: MC03-900112 | Part name: Ball Bush Lm5L | Qty: 4

#37. P/N: MC19-000429A | Part name: Shaft Pcb Clamp Adjust Shaft | Qty: 4

#38. P/N: J7253008B | Part name: Stopper[J7253008B] | Qty: 4

#39. P/N: FC30-001035A | Part name: Plate Pcb Clamping Plate1 V1P | Qty: 2

#40. P/N: FC29-001492A | Part name: Stopper Clamp Stopper Urethane | Qty: 2

#41. P/N: FC29-001425A | Part name: Collar Clamp Spacer | Qty: 2

#42. P/N: FC38-000085 | Part name: Spring Com Spring Wr12 15 Swp A D0.65 | Qty: 4

#43. P/N: FC30-001048A | Part name: Plate Nut Plate | Qty: 4

#44. P/N: FC30-001034A | Part name: Plate Reinforce Plate | Qty: 4

#45. P/N: MC05-000143 | Part name: Timing Belt S2M Side Htbn1196S2M 60 S2M | Qty: 2

#46. P/N: MC05-000142 | Part name: Timing Belt S2M Mid Htbn800S2M 60 S2M | Qty: 1

47. P/N: FC39-000932B | Part name: Frame Conv Frame Front Move | Qty: 1

48. P/N: FC29-001432A | Part name: Stand Move Stand Side C V1P | Qty: 1

49. P/N: FC18-901353 | Part name: C Ring #10 | Qty: 2

50. P/N: FC15-003157A | Part name: Cover Conv Sns Cover Move R | Qty: 1

51. P/N: FC15-003156A | Part name: Cover Conv Sns Cover Move F | Qty: 1

52. P/N: FC09-007277A | Part name: Bracket Conv Pin Detect Bkt | Qty: 4 | Remarks: EXCEN PRO(D)
