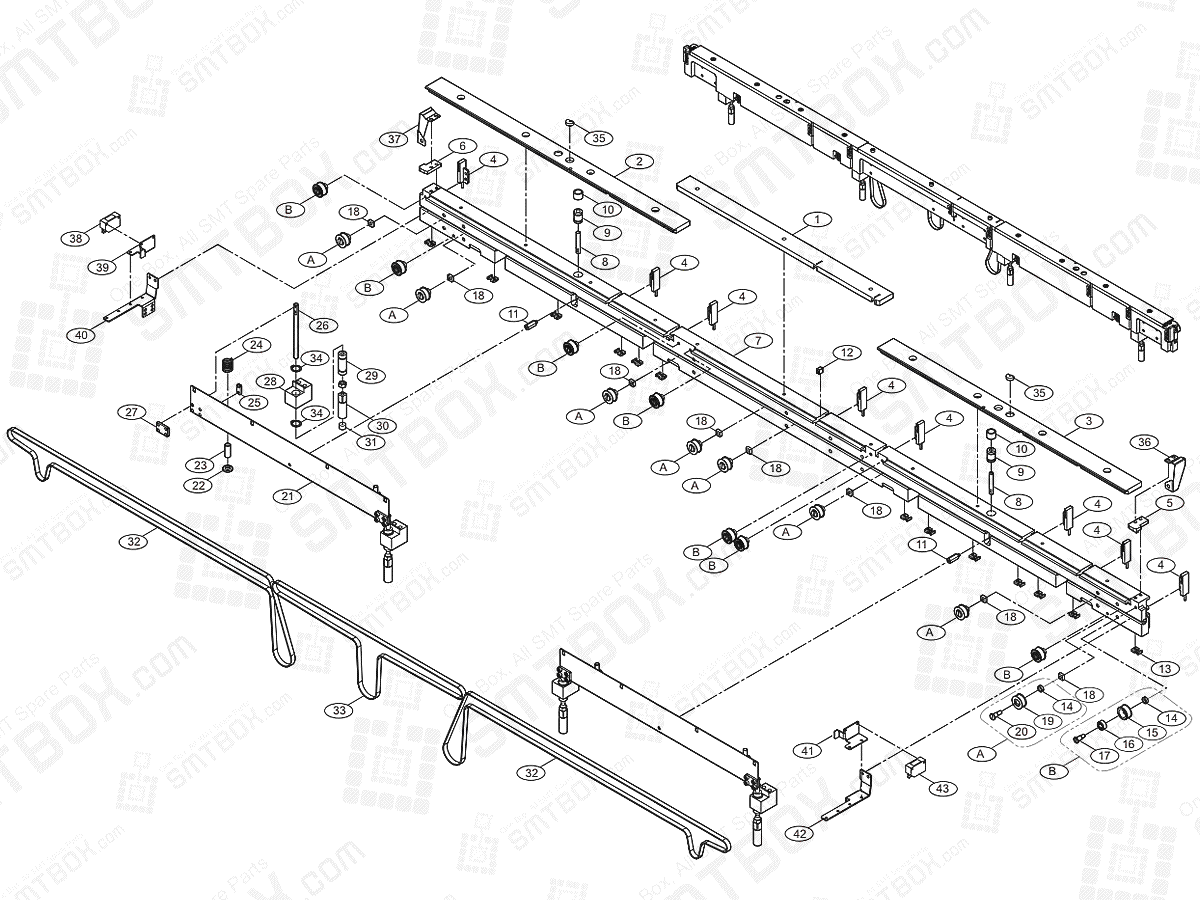

#1. P/N: FC30-001037A | Part Name: Plate Pcb Guide Fix Waiting 1 (Left To Right) | Qty: 1
#1. P/N: FC30-001038A | Part Name: Plate Pcb Guide Fix Waiting 2 (Right To Left) | Qty: 1
#2. P/N: FC30-001040A | Part Name: Plate Pcb Guide Front Fix R (Left To Right) | Qty: 1
#2. P/N: FC30-001041A | Part Name: Plate Pcb Guide Rear Fix L (Right To Left) | Qty: 1
#3. P/N: FC30-001039A | Part Name: Plate Pcb Guide Front Fix L (Left To Right) | Qty: 1
#3. P/N: FC30-001042A | Part Name: Plate Pcb Guide Rear Fix R (Right To Left) | Qty: 1
#4. P/N: EP19-900171 | Part Name: Sensor Fiber Head E32 T16Pr 3 | Qty: 4
#5. P/N: FC30-004437A | Part Name: Guide Edge V1 | Qty: 1 | Old P/N: FC29-002079A
#6. P/N: FC30-004438A | Part Name: Guide Edge V2 | Qty: 1 | Old P/N: FC29-002080A
#7. P/N: FC39-000930A | Part Name: Frame Conv Frame Front Fix | Qty: 1
#8. P/N: MC19-000426A | Part Name: Shaft Ball Bush Shaft M | Qty: 2
#9. P/N: MC06-900006 | Part Name: Ball Bush Lmu5 | Qty: 2
#10. P/N: FC29-001426A | Part Name: Collar Ball Bush Collar | Qty: 2
#11. P/N: MC19-000427A | Part Name: Shaft Hex Post M | Qty: 2
#12. P/N: FC09-002473B | Part Name: Bracket Fiber Mask Bkt Pom Black | Qty: 1 | Old P/N: FC09-002473A
#13. P/N: FC18-903190 | Part Name: Profile Mount Dia4.0 | Qty: 13
#14. P/N: J70532064A | Part Name: Idler Spacer J70532064A | Qty: 16
#15. P/N: MC03-900045 | Part Name: Ball Bearing 685Zz Stf100N #685Zz | Qty: 4
#16. P/N: MC19-000422A | Part Name: Pulley Idler S2M | Qty: 4
#17. P/N: J70531836A | Part Name: Idler Shaft J70531836A | Qty: 4
#18. P/N: J7053184A | Part Name: Square Nut M4 | Qty: 4
#19. P/N: J72531001A | Part Name: Idler 2 J72531001A | Qty: 4
#20. P/N: J70532065A | Part Name: Idler Shaft J70532065A | Qty: 4
#21. P/N: FC30-001035A | Part Name: Plate Pcb Clamping Plate1 V1P | Qty: 2
#22. P/N: FC29-001492A | Part Name: Stopper Clamp Stopper Urethane | Qty: 4
#23. P/N: FC29-001425A | Part Name: Collar Clamp Spacer | Qty: 4
#24. P/N: FC38-000085 | Part Name: Spring Com Spring Wr12 15 Swp A D0.65 | Qty: 4
#25. P/N: FC30-001048A | Part Name: Plate Nut Plate | Qty: 4
#26. P/N: J70532067A | Part Name: Clamp Ball Bush Shaft J70532067A | Qty: 4
#27. P/N: FC30-001034A | Part Name: Plate Reinforce Plate | Qty: 4
#28. P/N: FC07-000718A | Part Name: Bush 1 | Qty: 4 | Old P/N: J71531397A
#29. P/N: MC03-900112 | Part Name: Ball Bush Lm5L | Qty: 4
#30. P/N: MC19-000429A | Part Name: Shaft Pcb Clamp Adjust Shaft | Qty: 4
#31. P/N: J7253008B | Part Name: Stopper[J7253008B] | Qty: 4
#32. P/N: MC05-000143 | Part Name: Timing Belt S2M Side Htbn1196S2M 60 S2M | Qty: 2
#33. P/N: MC05-000142 | Part Name: Timing Belt S2M Mid Htbn800S2M 60 S2M | Qty: 1
#34. P/N: FC18-901353 | Part Name: C Ring #10 (Shaft Bl/Zn) | Qty: 2
#35. P/N: MC19-000428A | Part Name: Shaft Height Sns Teaching | Qty: 2
#36. P/N: FC15-003154A | Part Name: Cover Conv Sns Cover Fix F | Qty: 1
#37. P/N: FC15-003155A | Part Name: Cover Conv Sns Cover Fix R | Qty: 1
#38. P/N: AM03-019176B | Part Name: Cable Assy F Ent Pcb Det S1 Photo Sns Ca | Qty: 1
#39. P/N: FC09-007269A | Part Name: Bracket Inout Sns Bkt Adj A Cx | Qty: 2 | Remarks: EXCEN PRO(D)
#40. P/N: FC09-007274A | Part Name: Bracket Inout Sns Bkt Base A Cx | Qty: 2 | Remarks: EXCEN PRO(D)
#41. P/N: FC09-007268A | Part Name: Bracket Inout Sns Bkt Adj B Cx | Qty: 2 | Remarks: EXCEN PRO(D)
#42. P/N: FC09-007267A | Part Name: Bracket Inout Sns Bkt Base B Cx | Qty: 2 | Remarks: EXCEN PRO(D)
#43. P/N: AM03-019179B | Part Name: Cable Assy Pcb Detect S8 Photo Sns Cable | Qty: 1 | Remarks: EXCEN PRO(D)
