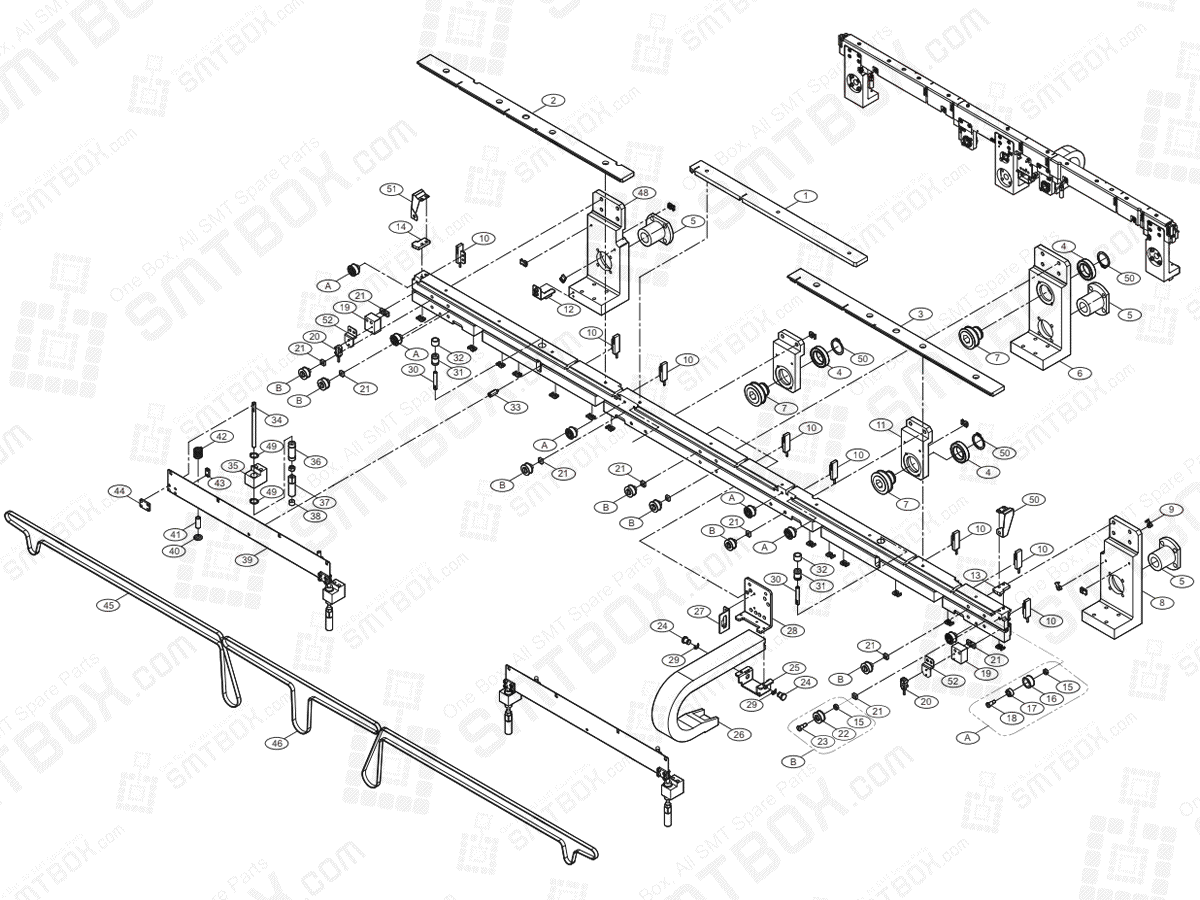

Conveyor(4/7) Rear Move On Hanwha Techwin Excellent Modular EXCEN PRO (D) (M) (L) SMT Component Placer

CONVEYOR4 7 Rear Move On Hanwha Techwin Excellent Modular Excen Pro D M L Smt Component Placer

#1. P/N: FC30-001037A | Part Name: Plate Pcb Guide Fix Waiting 1 (Left To Right) | Qty: 1

#1. P/N: FC30-001038A | Part Name: Pcb Guide Fix Waiting 2 (Right To Left) | Qty: 1

#2. P/N: FC30-001046B | Part Name: Plate Pcb Guide Rear Move R (Left To Right) | Qty: 1

#2. P/N: FC30-001043B | Part Name: Pcb Guide Front Move L (Right To Left) | Qty: 1

#3. P/N: FC30-001045B | Part Name: Plate Pcb Guide Rear Move L (Left To Right) | Qty: 1

#3. P/N: FC30-001044B | Part Name: Pcb Guide Front Move R (Right To Left) | Qty: 1

#4. P/N: MC03-900113 | Part Name: Bearing B6804Zz | Qty: 3

#5. P/N: MC13-900238 | Part Name: Lead Screw Nut | Qty: 3

#6. P/N: FC29-001431A | Part Name: Stand Move Stand M V1P | Qty: 1

#7. P/N: MC19-000423A | Part Name: Pulley Spline Move S2M | Qty: 3

#8. P/N: FC29-001433A | Part Name: Stand Move Stand Side D V1P | Qty: 1

#9. P/N: FC18-903190 | Part Name: Profile Mount Dia4.0 | Qty: 21

#10. P/N: EP19-900171 | Part Name: Sensor Fiber Head E32 T16Pr 3 | Qty: 8

#11. P/N: FC09-002046A | Part Name: Bracket Spline Support Bkt | Qty: 2

#12. P/N: J70532082A | Part Name: Width Sensor Dog J70532082A | Qty: 1

#13. P/N: J72531034A | Part Name: Edge Guide | Qty: 1

#14. P/N: J72531035A | Part Name: Edge Guide 2 | Qty: 1

#15. P/N: J70532064A | Part Name: Idler Spacer J70532064A | Qty: 16

#16. P/N: MC19-000422A | Part Name: Pulley Idler S2M | Qty: 8

#17. P/N: MC03-900045 | Part Name: Ball Bearing 685Zz Stf100N #685Zz | Qty: 8

#18. P/N: J70531836A | Part Name: Idler Shaft J70531836A | Qty: 8

#19. P/N: FC07-000487B | Part Name: Block Pin Detect Sensor Block | Qty: 2 | Old P/N: FC07-000487A

#20. P/N: EP19-900083 | Part Name: Electric Switch | Qty: 2

#21. P/N: J7053184A | Part Name: Square Nut M4 | Qty: 12

#22. P/N: J72531001A | Part Name: Idler 2 J72531001A | Qty: 8

#23. P/N: J70532065A | Part Name: Idler Shaft J70532065A | Qty: 8

#24. P/N: MC19-000282A | Part Name: Shaft Cableveyor Fix Shaft | Qty: 2

#25. P/N: FC09-001387A | Part Name: Bracket Cableveyor Move Bkt | Qty: 1

#26. P/N: MC08-000012 | Part Name: Chain Hsp180 2Bn 28R 17Rink | Qty: 1

#27. P/N: J70532083A | Part Name: Sensor Bkt J70532083A | Qty: 1

#28. P/N: J70532077A | Part Name: Cablebear Move Bkt J70532077A | Qty: 1

#29. P/N: FC18-901336 | Part Name: E Ring Dia4 | Qty: 2

#30. P/N: MC19-000426A | Part Name: Shaft Ball Bush Shaft M | Qty: 2

#31. P/N: MC06-900006 | Part Name: Ball Bush Lmu5 | Qty: 2

#32. P/N: FC29-001426A | Part Name: Collar Ball Bush Collar | Qty: 2

#33. P/N: MC19-000427A | Part Name: Shaft Hex Post M | Qty: 2

#34. P/N: J70532067A | Part Name: Clamp Ball Bush Shaft J70532067A | Qty: 4

#35. P/N: FC07-000718A | Part Name: Bush 1 | Qty: 4 | Old P/N: J71531397A

#36. P/N: MC03-900112 | Part Name: Ball Bush Lm5L | Qty: 4

#37. P/N: MC19-000429A | Part Name: Shaft Pcb Clamp Adjust Shaft | Qty: 4

#38. P/N: J7253008B | Part Name: Stopper[J7253008B] | Qty: 4

#39. P/N: FC30-001035A | Part Name: Plate Pcb Clamping Plate1 V1P | Qty: 2

#40. P/N: FC29-001492A | Part Name: Stopper Clamp Stopper Urethane | Qty: 2

#41. P/N: FC29-001425A | Part Name: Collar Clamp Spacer | Qty: 2

#42. P/N: FC38-000085 | Part Name: Spring Com Spring Wr12 15 Swp A D0.65 | Qty: 4

#43. P/N: FC30-001048A | Part Name: Plate Nut Plate | Qty: 4

#44. P/N: FC30-001034A | Part Name: Plate Reinforce Plate | Qty: 4

#45. P/N: MC05-000143 | Part Name: Timing Belt S2M Side Htbn1196S2M 60 S2M | Qty: 2

#46. P/N: MC05-000142 | Part Name: Timing Belt S2M Mid Htbn800S2M 60 S2M | Qty: 1

#47. P/N: FC39-000933B | Part Name: Frame Conv Frame Rear Move | Qty: 1 | Old P/N: FC39-000933A

#48. P/N: FC29-001432A | Part Name: Stand Move Stand Side C V1P | Qty: 1

#49. P/N: FC18-901353 | Part Name: C Ring #10 | Qty: 2

#50. P/N: FC15-003157A | Part Name: Cover Conv Sns Cover Move R | Qty: 1

#51. P/N: FC15-003156A | Part Name: Cover Conv Sns Cover Move F | Qty: 1

#52. P/N: FC09-007277A | Part Name: Bracket Conv Pin Detect Bkt | Qty: 4 | Remarks: EXCEN PRO(D)
