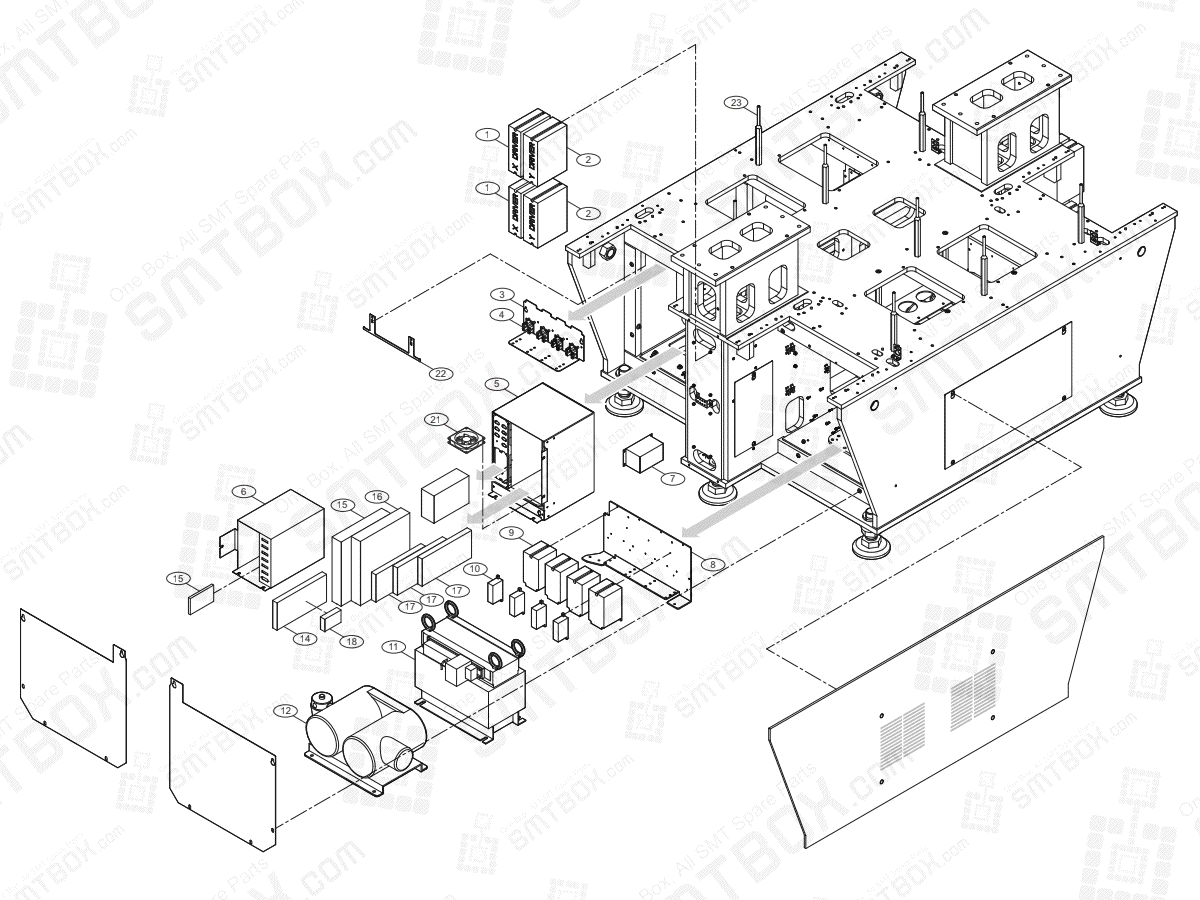

#1. P/N: EP06-900166 | Part name: Kollmorgen Driver S20360 Srs (X Axis) | Qty: 2
#2. P/N: EP06-900156 | Part name: Kollmorgen Driver S20660 Srs (Y Axis) | Qty: 2
#3. P/N: FC09-002000A | Part name: Bracket Amp Board Bkt | Qty: 1
#4. P/N: AM03-006209A | Part name: Assy Board Fiber Amp Connector Board As | Qty: 4
#5. P/N: AM03-006531D | Part name: Assy Electric V1P Cpu Box Assy | Qty: 1 | Old P/N: AM03-006531A / AM03-006531B
#5. P/N: EP06-901050 | Part name: Power Supply 1 Pcsf 350P X2S1
#5. P/N: AM03-017615C | Part name: Assy Board Ncio Board Assy | Qty: 1 | Old P/N: AM03-017615A / AM03-017615B
#5. P/N: AM03-014332B | Part name: Cable Assy Cpu Box 12V Power | Qty: 1
#6. P/N: AM03-009557F | Part name: Assy Electric Small Sill Box Assy | Qty: 1 | Old P/N: AM03-009557B / AM03-009557C / AM03-009557D / AM03-009557E
#6. P/N: EP06-001062 | Part name: Supply Power Ac Acdc Pla100F 24 24 4.3 2 | Qty: 1 | Old P/N: EP06-000041
#7. P/N: AM03-007786A | Part name: Cable Assy V1+ Noise Filter Assy | Qty: 1
#8. P/N: FC09-004218A | Part name: Bracket Mtv1Pp Fr103A But Driver Bkt | Qty: 4 | Old P/N: FC09-002032A / FC09-002037A
#9. P/N: EP06-001010 | Part name: But Driver | Qty: 4 | Old P/N: EP06-000460 / EP06-000474 / EP06-000477 / EP06-001001
#10. P/N: AM03-012037A | Part name: Assy Board G7Sa 2A2B Relay Board | Qty: 4 | Old P/N: EP18-000006 / EP18-000007
#11. P/N: EP23-000014 | Part name: Transformer Power 3Phase5.7Kva(Ji993) | Qty: 1
#12. P/N: HP11-000059 | Part name: Pump Pump Kha400A 301 G1 | Qty: 1
#13. P/N: AM03-009556F | Part name: Assy Board Sill Pcb Board Assy | Qty: 1 | Old P/N: AM03-009556B / AM03-009556C / AM03-009556D / AM03-009556E
#14. P/N: AM03-001692A | Part name: Assy Etc Ims V Rt Board Assy | Qty: 1
#15. P/N: ASSY | Part name: Assy Etc Ims Mmi Vision Board Assy | Qty: 1
#15. P/N: FC32-001001 | Part name: Protector Heat Express Cb Heatsink(Alko) | Qty: 4 | Old P/N: FC32-000001
#15. P/N: CD05-000015 | Part name: Motherboard Cpu Express Cb Embedded | Qty: 1
#15. P/N: AM03-014828B | Part name: Assy Board Comx Acl Ver1.0C | Qty: 1
#15. P/N: EP10-003331 | Part name: Memory Ts256Ms64V1N Ddr3 2Gb | Qty: 1 | Old P/N: EP10-002577
#15. P/N: CD03-000060 | Part name: Hard Drive Ts64Gssd630 | Qty: 1
#16. P/N: ASSY | Part name: Assy Etc Ims V Rt Board Assy | Qty: 1
#16. P/N: EP10-000055 | Part name: Memory Cf Card 8G 8G Et1 Etc | Qty: 1
#16. P/N: AM03-000046 | Part name: Assy Etc Ims Men Cpu Board 6U Panel | Qty: 1
#16. P/N: EP10-900133 | Part name: F14 3U Cpci Board 02F014 01 | Qty: 1
#17. P/N: EP06-000211 | Part name: Board Communication Zmp 400Mhz | Qty: 3
#18. P/N: CD05-000050 | Part name: Module Memory Mz 7Td120Z Ssd 540Bps | Qty: 1
#21. P/N: EP07-002002 | Part name: Fan | Qty: 1 | Old P/N: EP07-000061
#21. P/N: EP07-002109 | Part name: Fan Electric Ffb1312Ehe F00 | Qty: 1 | Remarks: EXCEN PRO(D)
#22. P/N: FC09-004278B | Part name: Bracket Cable Guide | Qty: 1
#23. P/N: AM16-001486A | Part name: Assy Base Mted Base Etc Pole B | Qty: 2 | Remarks: EXCEN PRO(D)
