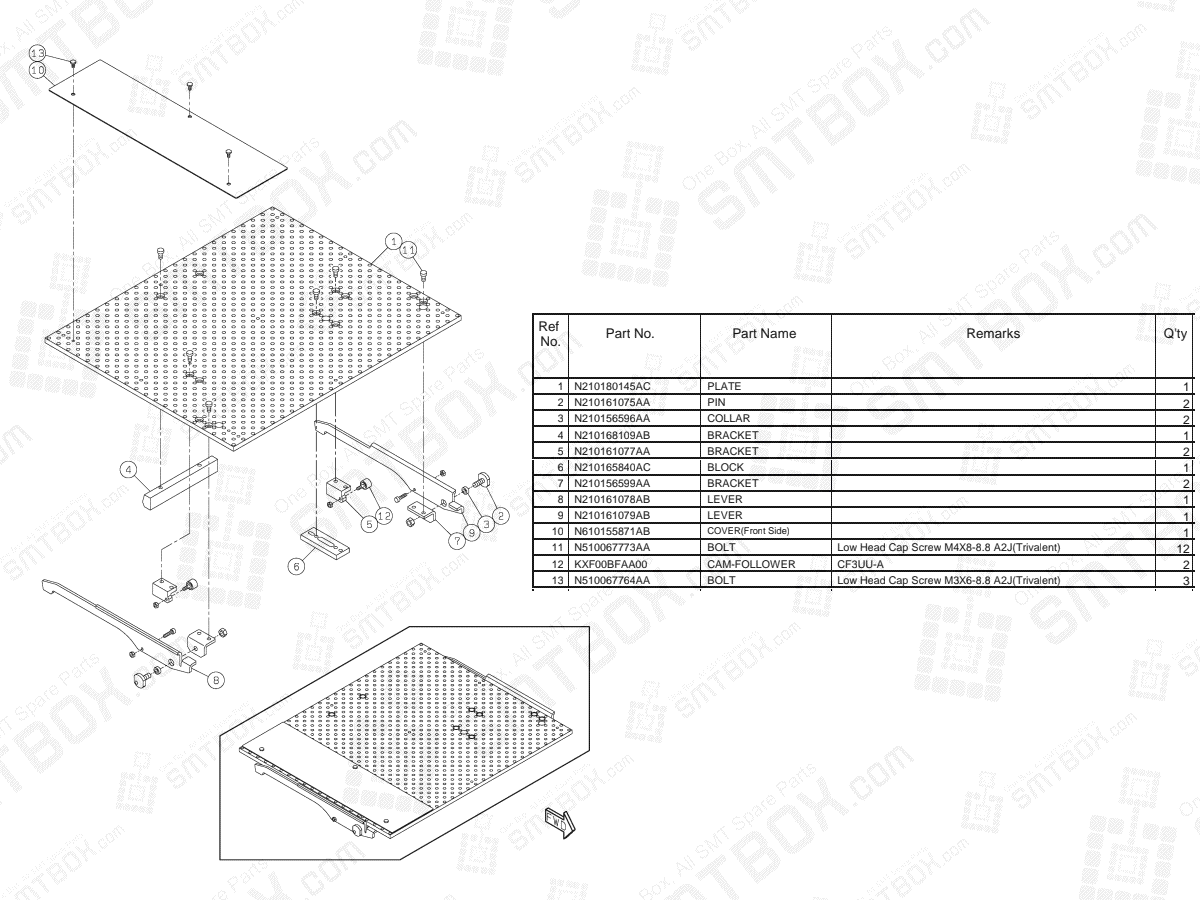

Panasonic NPM-D3 Batch Exchange Unit For Board Support Block (Front Side) N N610150726AC KN610150726AC-03

#1. P/N: N210180145AC | Part name: Plate | Qty: 1

#2. P/N: N210161075AA | Part name: Pin | Qty: 2

#3. P/N: N210156596AA | Part name: Collar | Qty: 2

#4. P/N: N210168109AB | Part name: Bracket | Qty: 1

#5. P/N: N210161077AA | Part name: Bracket | Qty: 2

#6. P/N: N210165840AC | Part name: Block | Qty: 1

#7. P/N: N210156599AA | Part name: Bracket | Qty: 2

#8. P/N: N210161078AB | Part name: Lever | Qty: 1

#9. P/N: N210161079AB | Part name: Lever | Qty: 1

#10. P/N: N610155871AB | Part name: Cover(Front Side) | Qty: 1

#11. P/N: N510067773AA | Part name: Bolt | Remarks: Low Head Cap Screw M4X8-8.8 A2J(Trivalent) | Qty: 12

#12. P/N: KXF00BFAA00 | Part name: Cam Follower | Remarks: CF3UU-A | Qty: 2

#13. P/N: N510067764AA | Part name: Bolt | Remarks: Low Head Cap Screw M3X6-8.8 A2J(Trivalent) | Qty: 3
