Having issues with Vision Type 153 (158) White Bodied Connectors For NXT Vision Types Of Part Data Settings On Fuji NXT? Read our step-by-step SMT maintenance solution below. If you require replacement feeders, nozzles, or sensors, contact SMTBOX for OEM-compatible parts.

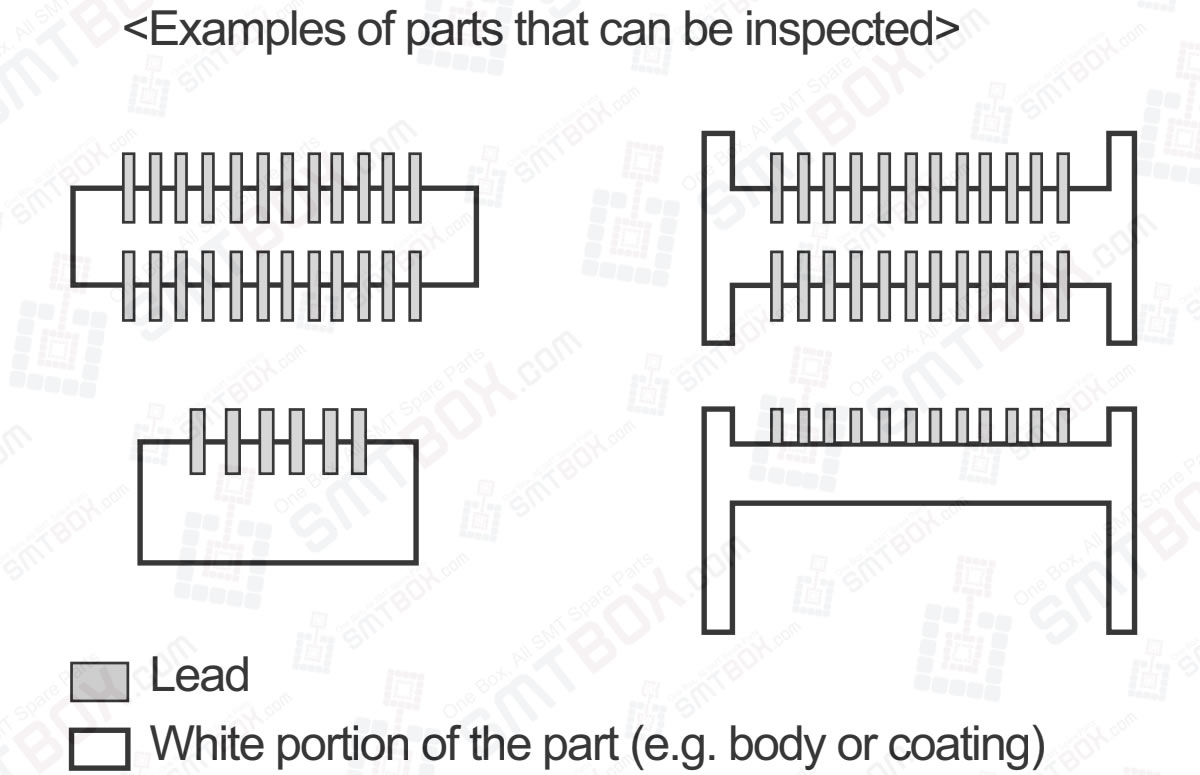

Enter the body size and element information in part data.
It is necessary to create separate element information for leads of different width and length.
Vision type 153 uses the body center while vision type 158 uses the part center.

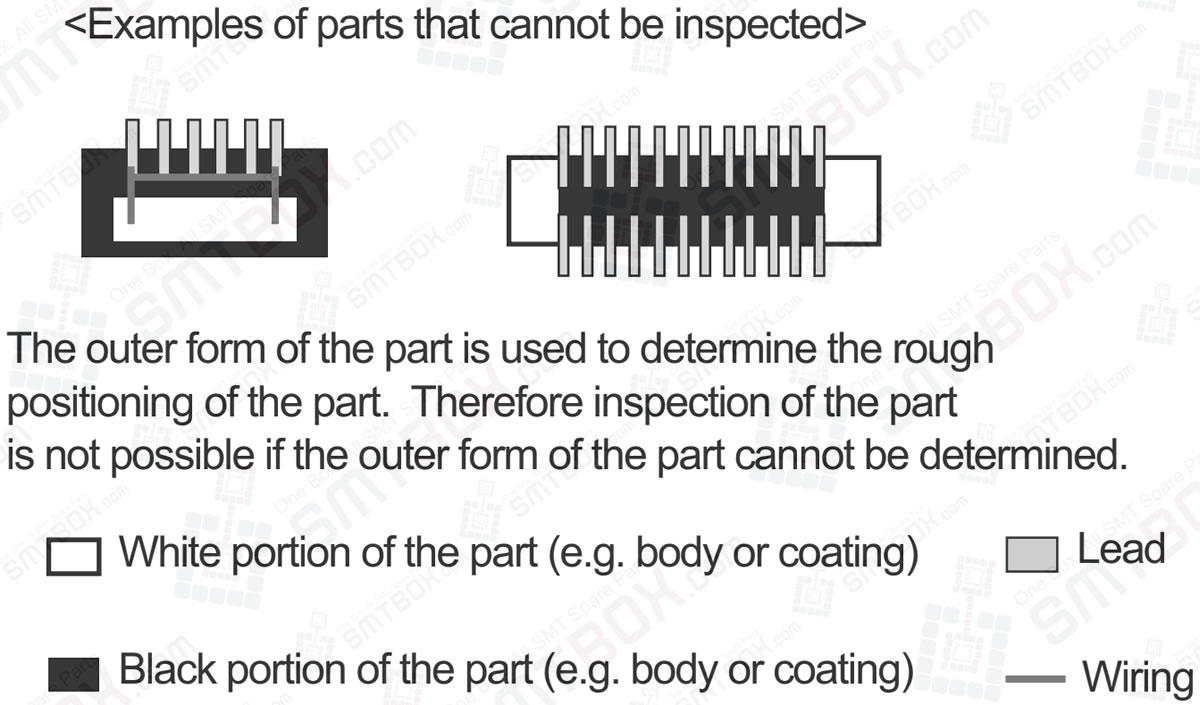

The outer form of the part is used to determine the rough positioning of the part. Therefore inspection of the part is not possible if the outer form of the part cannot be determined.
