Notes:

a. If incorrect orientation is detected, a vision error is issued and the part is rejected.
This function can be used on the condition that bump arrangements are not perfectly
symmetric, all bumps are registered in the part settings, and the bump detection rate is
set to 100%.
b. Detection of missing bumps does not include flattened or deformed bumps.
c. The pitch of at least three bumps in each outer row must be the same.
d. Contact Fuji for information regarding components not listed.
Also contact Fuji if a component body coating (CSP etc.) causes some thickness variation at the component edges. Such variations may complicate the component inspection process.

1. Types of parts

CP-842E 140 types (two tables each loaded with seventy 8 mm feeders)

CP-842ME 80 types (two tables each loaded with forty 8 mm feeders)

2. Table drive method Two motor/two independent drive mechanisms.

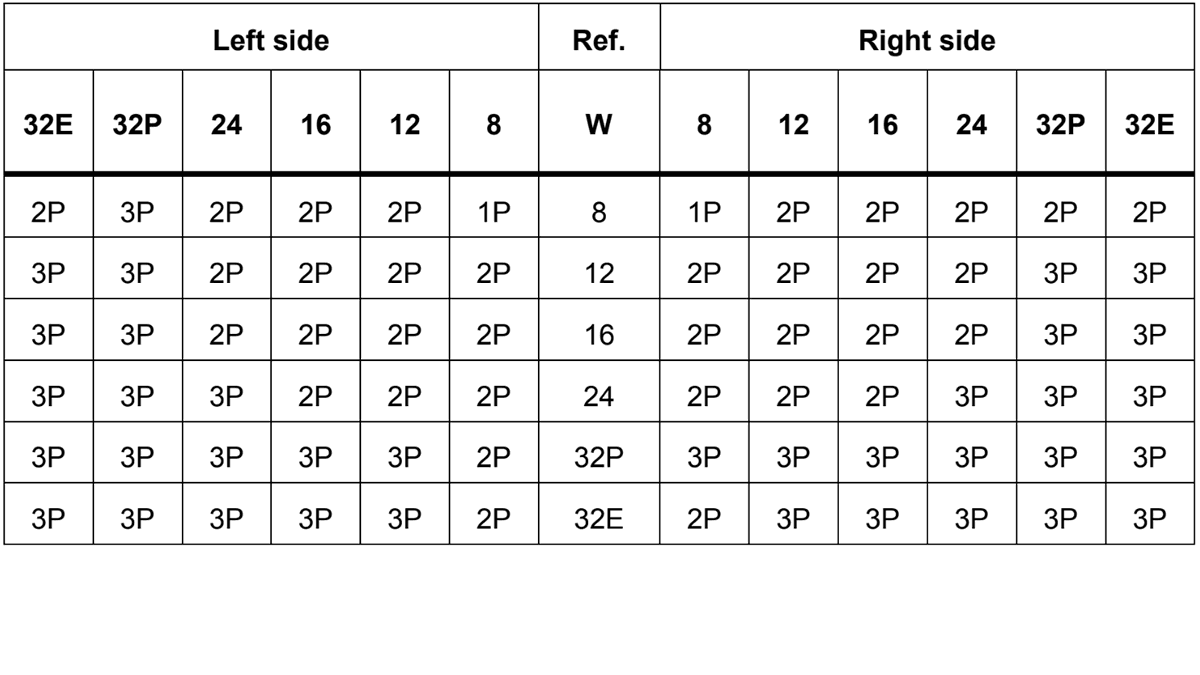

3. Feeder Pitch

Left side Ref. Right side 32E 32P 24 16 12 8 W 8 12 16 24 32P 32E 2P 3P 2P 2P 2P 1P 8 1P 2P 2P 2P 2P 2P 3P 3P 2P 2P 2P 2P 12 2P 2P 2P 2P 3P 3P 3P 3P 2P 2P 2P 2P 16 2P 2P 2P 2P 3P 3P 3P 3P 3P 2P 2P 2P 24 2P 2P 2P 3P 3P 3P 3P 3P 3P 3P 3P 2P 32P 3P 3P 3P 3P 3P 3P 3P 3P 3P 3P 3P 2P 32E 2P 3P 3P 3P 3P 3P

Note: The terms “left side” and “right side” refer to the feeder mounting positions when viewed from the rear of the machine.

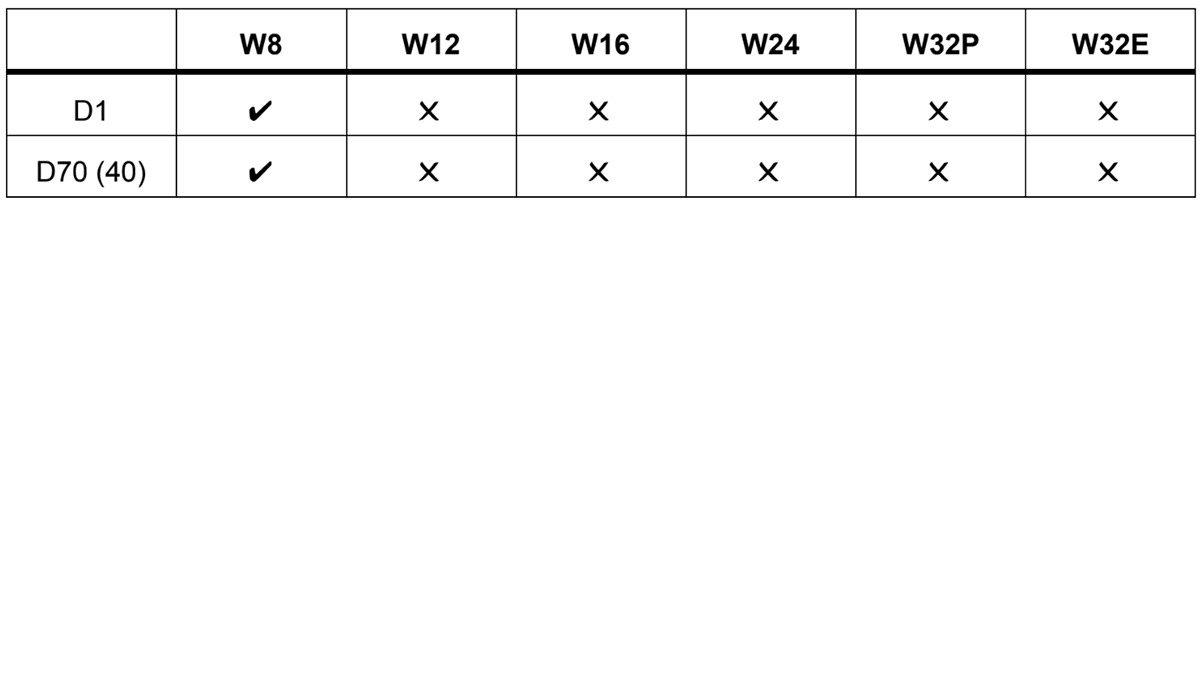

4. Feeder Types (which can be placed at the ends of the device tables)

W8 W12 W16 W24 W32P W32E D1 70 (40)
