Having issues with Part 2 of How to Replace X-Axis Motor of FUJI QP-242E Machine? Read our step-by-step SMT maintenance solution below. If you require replacement feeders, nozzles, or sensors, contact SMTBOX for OEM-compatible parts.
Preparation
1. Receive the current Proper data to the host computer.
2. Change the Proper Data Max Limit Position X to 5000, for rear load machines change the Proper Data Min Limit Position X to -5000.
Removal
1. Power OFF the machine and disconnect the two (2) electrical connections from the motor.

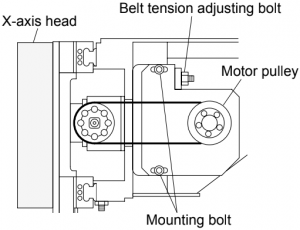

2. Loosen the timing belt tension adjustment screw and remove the belt.
3. Remove the two (2) mounting bolts holding the motor mounting plate in place.
4. Remove the motor from the machine.
