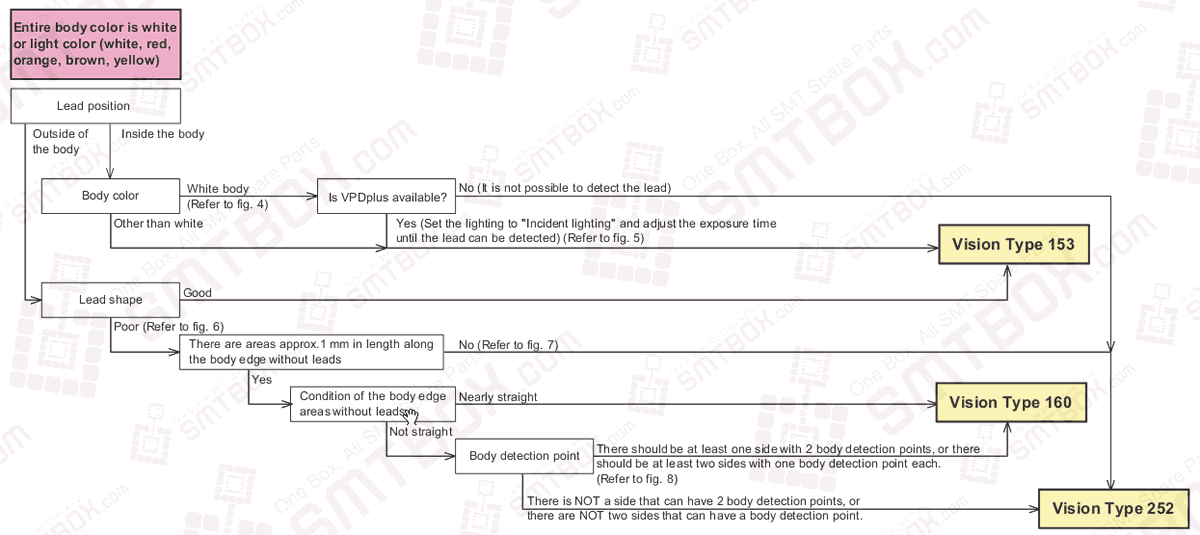

Case 2 for 4.6.3 Selecting A Vision Type Flowcharts (Leaded Parts) of Part Data Settings

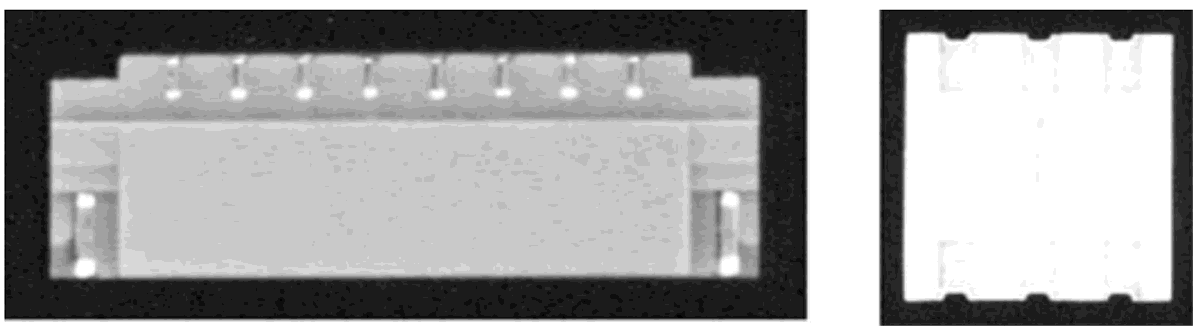

Figure 4 Parts That Have Leads In The White Body Area.

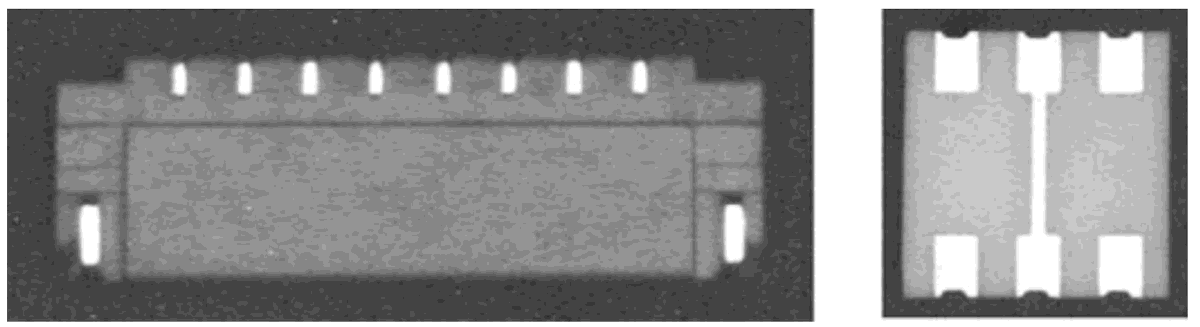

Figure 5 Used The Parts From #4. Used Vpdplus And Set The Lighting To “Incident” And Exposure Time To “170MS”.

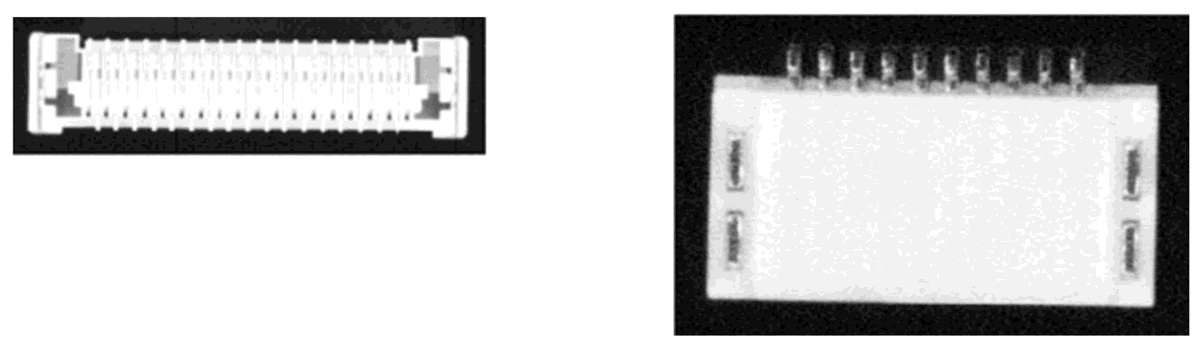

Figure 6 Poor Lead Shape (The Leads Are Too Short) And Including Parts With Leads That Have Poor Lead Image Definition.

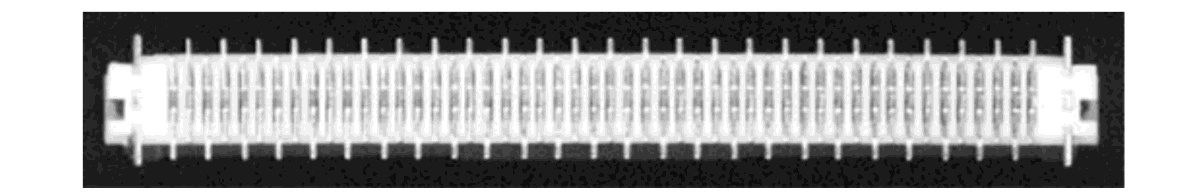

Figure 7 There Is No More Than 1Mm Of Body Edge With No Leads Or Other Items

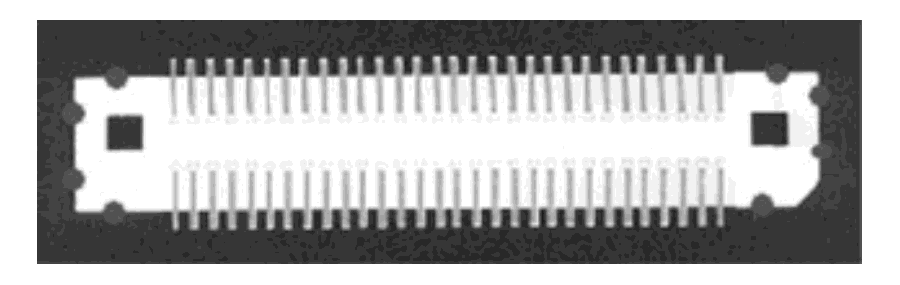

Figure 8 There Should Be At Least One Side With 2 Body Detection Points, Or There Should Be At Least Two Sides With One Body Detection Point Each.
(This part has 4 sides with 2 detection points each.)
