Looking for Panasonic KME Panasert CM401 CM402 CM400 CM602 CM212 DT401 DT400 Special Nozzle for Multi-functional head? This SMT spare part (SKU: head-dup-194, Brand: Panasonic) is a high-precision component for SMT pick-and-place machines. Contact SMTBOX for competitive bulk prices, global delivery options, and fast RFQ turnaround.
Panasonic Special Nozzle for Multi-functional head CM401-M CM401-L CM402-M CM402-L CM400-M CM602-L CM212-M DT401-M DT401-F DT400-M MODULE NUMBER A0000088
| NO | PART NUMBER | PART NAME | TYPE | Q’TY | RANK | REMARKS |
|---|---|---|---|---|---|---|
| 1 | KXFX05GHA00 | NOZZLE No.1518 | dedicated orifice | 1 | N/A | N/A |
| 2 | KXFX05GZA00 | NOZZLE No.1528 | dedicated orifice | 1 | N/A | N/A |
| 3 | KXFX05G9A00 | NOZZLE No.1514 | dedicated orifice | 1 | N/A | N/A |
| 4 | KXFX05L9A00 | NOZZLE No.1604 | dedicated orifice | 1 | N/A | N/A |
| 5 | KXFX05KRA00 | NOZZLE No.1580 | dedicated orifice | 1 | N/A | N/A |
Panasonic Special Nozzle for Multi-functional head CM401-M CM401-L CM402-M CM402-L CM400-M CM602-L CM212-M DT401-M DT401-F DT400-M MODULE NUMBER A0000088
| NO | PART NUMBER | PART NAME | TYPE | Q’TY | RANK | REMARKS |
|---|---|---|---|---|---|---|
| 1 | KXFX05ASA00 | NOZZLE No.1479 | dedicated orifice | 1 | N/A | N/A |
| 2 | KXFX0556A00 | NOZZLE No.1403 | dedicated orifice | 1 | N/A | N/A |
| 3 | KXFX04U4A00 | NOZZLE No.1191 | dedicated orifice | 1 | N/A | N/A |
| 4 | KXFX04YKA00 | NOZZLE No.1272 | dedicated orifice | 1 | N/A | N/A |
| 5 | KXFX04PQA00 | NOZZLE No.1118 | dedicated orifice | 1 | N/A | N/A |
| 6 | KXFX04NBA00 | NOZZLE No.1101 | dedicated orifice | 1 | N/A | N/A |
Panasonic Special Nozzle for Multi-functional head CM401-M CM401-L CM402-M CM402-L CM400-M CM602-L CM212-M DT401-M DT401-F DT400-M MODULE NUMBER A0000088
| NO | PART NUMBER | PART NAME | TYPE | Q’TY | RANK | REMARKS |
|---|---|---|---|---|---|---|

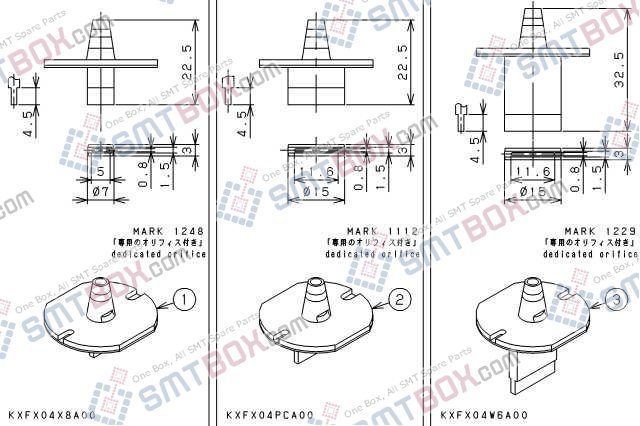

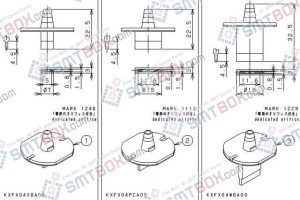

| 1 | KXFX04X8A00 | NOZZLE No.1248 | dedicated orifice | 1 | N/A | N/A |
| 2 | KXFX04PCA00 | NOZZLE No.1112 | dedicated orifice | 1 | N/A | N/A |
| 3 | KXFX04W6A00 | NOZZLE No.1229 | dedicated orifice | 1 | N/A | N/A |

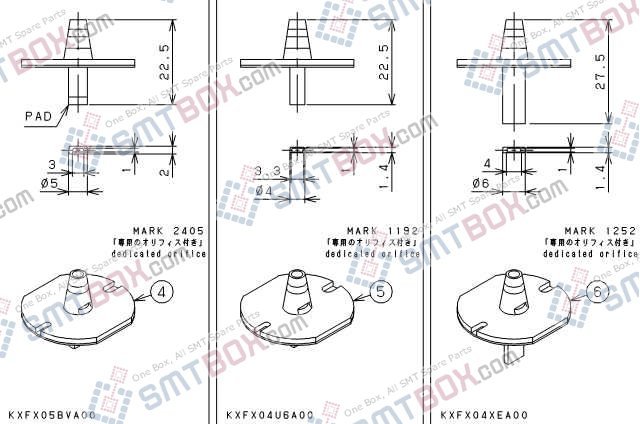

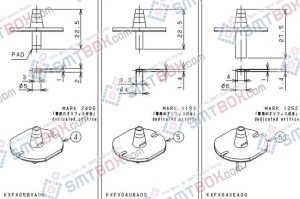

| 4 | KXFX05BVA00 | NOZZLE No.2405 | dedicated orifice | 1 | N/A | N/A |
| 5 | KXFX04U6A00 | NOZZLE No.1192 | dedicated orifice | 1 | N/A | N/A |
| 6 | KXFX04XEA00 | NOZZLE No.1252 | dedicated orifice | 1 | N/A | N/A |
Panasonic Special Nozzle for Multi-functional head CM401-M CM401-L CM402-M CM402-L CM400-M CM602-L CM212-M DT401-M DT401-F DT400-M MODULE NUMBER A0000088
| NO | PART NUMBER | PART NAME | TYPE | Q’TY | RANK | REMARKS |
|---|---|---|---|---|---|---|

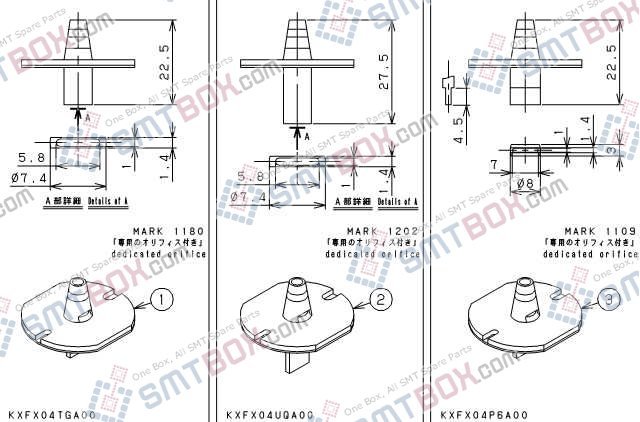

| 1 | KXFX04TGA00 | NOZZLE No.1180 | dedicated orifice | 1 | N/A | N/A |
| 2 | KXFX04UQA00 | NOZZLE No.1202 | dedicated orifice | 1 | N/A | N/A |
| 3 | KXFX04P6A00 | NOZZLE No.1109 | dedicated orifice | 1 | N/A | N/A |

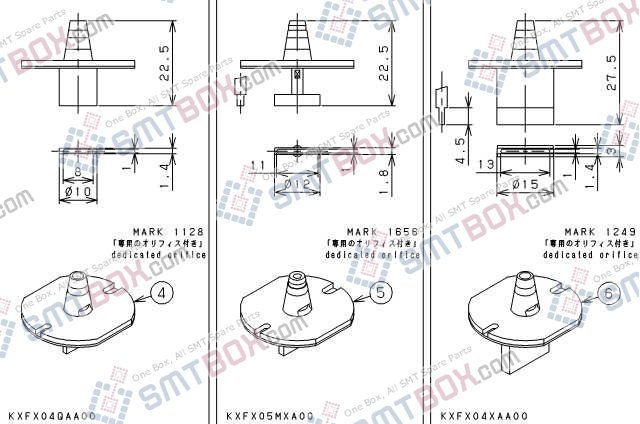

| 4 | KXFX04QAA00 | NOZZLE No.1128 | dedicated orifice | 1 | N/A | N/A |
| 5 | KXFX05MXA00 | NOZZLE No.1656 | dedicated orifice | 1 | N/A | N/A |
| 6 | KXFX04XAA00 | NOZZLE No.1249 | dedicated orifice | 1 | N/A | N/A |
Panasonic Special Nozzle for Multi-functional head CM401-M CM401-L CM402-M CM402-L CM400-M CM602-L CM212-M DT401-M DT401-F DT400-M MODULE NUMBER A0000088
| NO | PART NUMBER | PART NAME | TYPE | Q’TY | RANK | REMARKS |
|---|---|---|---|---|---|---|

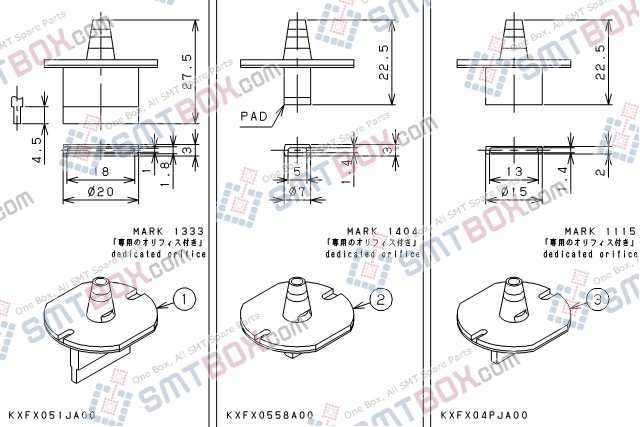

| 1 | KXFX051JA00 | NOZZLE No.1333 | dedicated orifice | 1 | N/A | N/A |
| 2 | KXFX0558A00 | NOZZLE No.1404 | dedicated orifice | 1 | N/A | N/A |
| 3 | KXFX04PJA00 | NOZZLE No.1115 | dedicated orifice | 1 | N/A | N/A |

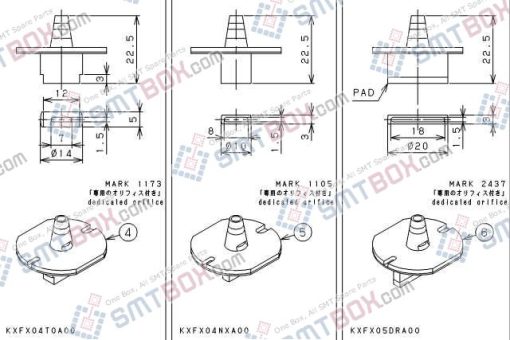

| 4 | KXFX04T0A00 | NOZZLE No.1173 | dedicated orifice | 1 | N/A | N/A |
| 5 | KXFX04NXA00 | NOZZLE No.1105 | dedicated orifice | 1 | N/A | N/A |
| 6 | KXFX05DRA00 | NOZZLE No.2437 | dedicated orifice | 1 | N/A | N/A |
Panasonic Special Nozzle for Multi-functional head CM401-M CM401-L CM402-M CM402-L CM400-M CM602-L CM212-M DT401-M DT401-F DT400-M MODULE NUMBER A0000088
| NO | PART NUMBER | PART NAME | TYPE | Q’TY | RANK | REMARKS |
|---|---|---|---|---|---|---|

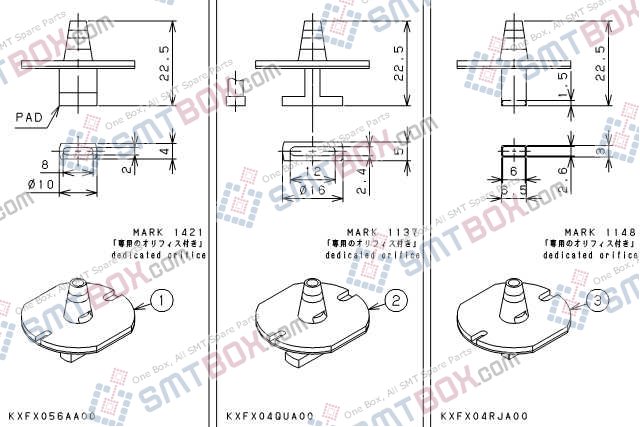

| 1 | KXFX056AA00 | NOZZLE No.1421 | dedicated orifice | 1 | N/A | N/A |
| 2 | KXFX04QUA00 | NOZZLE No.1137 | dedicated orifice | 1 | N/A | N/A |
| 3 | KXFX04RJA00 | NOZZLE No.1148 | dedicated orifice | 1 | N/A | N/A |

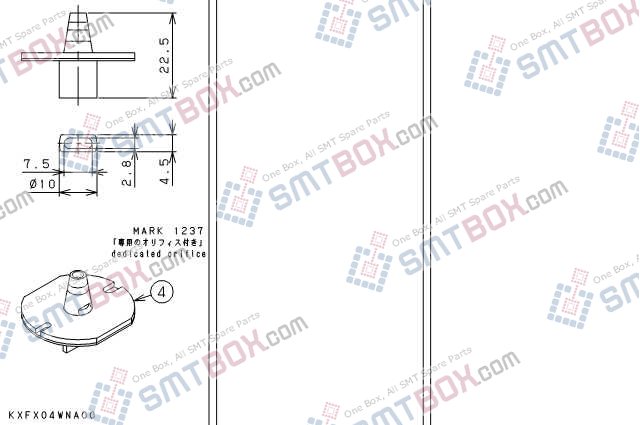

| 4 | KXFX04WNA00 | NOZZLE No.1237 | dedicated orifice | 1 | N/A | N/A |
What is Panasonic KME Panasert CM401 CM402 CM400 CM602 CM212 DT401 DT400 Special Nozzle for Multi-functional head?
The Panasonic KME Panasert CM401 CM402 CM400 CM602 CM212 DT401 DT400 Special Nozzle for Multi-functional head (SKU: head-dup-194) is a premium-grade SMT spare component manufactured for high-speed pick and place machines. Designed for maximum durability and precision, this part is part of our extensive Panasonic SMT Nozzle, Panasonic SMT Spare Parts, Thru-hole Parts inventory. It ensures seamless integration and high efficiency on active PCB assembly lines.
How to use or replace the Panasonic KME Panasert CM401 CM402 CM400 CM602 CM212 DT401 DT400 Special Nozzle for Multi-functional head?
To install or replace the Panasonic KME Panasert CM401 CM402 CM400 CM602 CM212 DT401 DT400 Special Nozzle for Multi-functional head, first power down your SMT placement system. Consult the OEM manual for exact torque settings and calibration parameters. Regular cleaning with ESD-safe materials is highly recommended to extend service life and maintain optimal pick-and-place accuracy.
