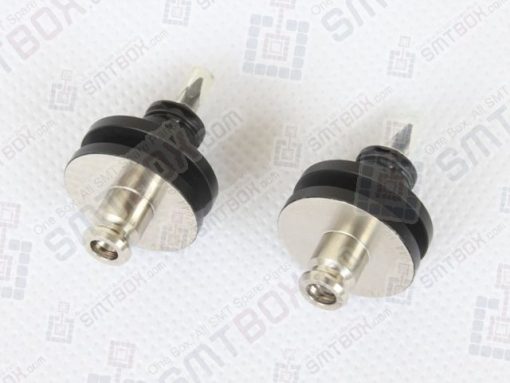

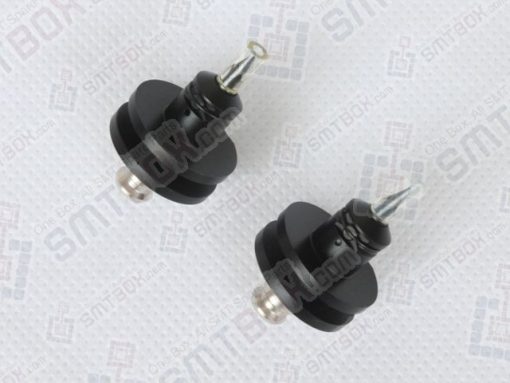

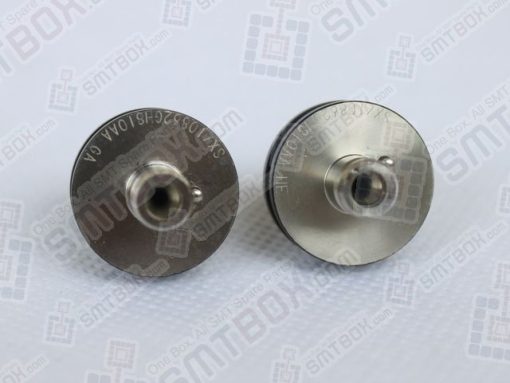

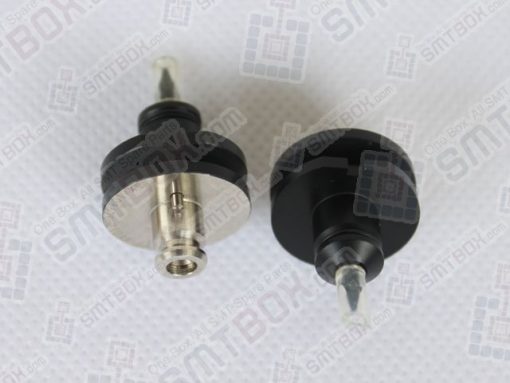

What is Panasonic KME Panasert BM221 BM123 BM231 10862GH810AA Nozzle (SX)?
Looking for Panasonic KME Panasert BM221 BM123 BM231 10862GH810AA Nozzle (SX)? This SMT spare part (SKU: 10862GH810AA., Brand: Panasonic) is a high-precision component for SMT pick-and-place machines. Contact SMTBOX for competitive bulk prices, global delivery options, and fast RFQ turnaround.
We offer Panasonic KME Panasert BM221 BM123 BM231 10862GH810AA Nozzle (SX) , please contact: sales@smtbox.com
| Ref. No. | Nozzle Type | Part Number |
| NOZZLE Section | ||
| 1 | SX | 10862GH810AA |
| 2 | SA | 10807GH811AG |
| 3 | S | 10807GH812AG |
| 4 | M | 10807GH813AF |
| 5 | ML | 10807GH814AF |
| 6 | MG | 10807GC007 |
| 7 | MG-P | 10807GC008AA |
| 8 | LA | 10807GH815AF |
| 9 | L(SHORT) | 10817GC800AG |
| 10 | M | 10817GC834AF |
| 11 | MELF | 10807GJ813AL |
| CNT NOZZLE Section | ||
| 1 | S | 10807GH817AF |
| 2 | M | 10807GH818AF |
| 3 | M(SHORT) | 10817GC802AG |
| 4 | CN-R1 | 10817GA822AG |
| 5 | CN-R2 | 10817GA844AG |
| 6 | CN-R3 | 10817GH819AF |
| 7 | CN-R4 | 10807GH820AF |
| 8 | CN-R5 | 10807GH821AF |
| 9 | CN-R6 | 10807GH822AF |
| 10 | CN-R7 | 10817GA861AG |
| 11 | CN-R8 | 10807GH823AF |
| 12 | CN-R9 | 10817GA862AG |
| 13 | CN-R10 | 10817GJ829AG |
| 14 | CN-R11 | 10807GH824AF |
| 15 | CN-R12 | 10807GH825AF |
The Panasonic KME Panasert BM221 BM123 BM231 10862GH810AA Nozzle (SX) (SKU: 10862GH810AA.) is a premium-grade SMT spare component manufactured for high-speed pick and place machines. Designed for maximum durability and precision, this part is part of our extensive Panasonic SMT Nozzle, Panasonic SMT Spare Parts, Thru-hole Parts inventory. It ensures seamless integration and high efficiency on active PCB assembly lines.
How to use Panasonic KME Panasert BM221 BM123 BM231 10862GH810AA Nozzle (SX)?
For optimal performance and durability, this component should be installed and calibrated by a certified SMT maintenance engineer. Regularly check the alignment, wear patterns, and vacuum suction parameters (for nozzles) to prevent component mispicks and ensure high assembly yields.
- Power down your mounter and disconnect the vacuum line.
- Clean the nozzle shaft or feeder mounting slot with ESD-safe cleaning alcohol.
- Carefully align the new component and tighten to the manufacturer's torque specifications.
- Perform a test cycle and verify the component alignment using mounter diagnostics before resuming full production.
