What is Hitachi/Sanyo TCM-X100 TCM-X200 Universal/UIC HSP4797 TF0812 8*4mm Paper Feeder?
Direct Answer / Quick Facts:
Looking for Hitachi/Sanyo TCM-X100 TCM-X200 Universal/UIC HSP4797 TF0812 8*4mm Paper Feeder? This SMT spare part (SKU: TF-0812, Brand: Hitachi) is a high-precision component for SMT pick-and-place machines. Contact SMTBOX for competitive bulk prices, global delivery options, and fast RFQ turnaround.

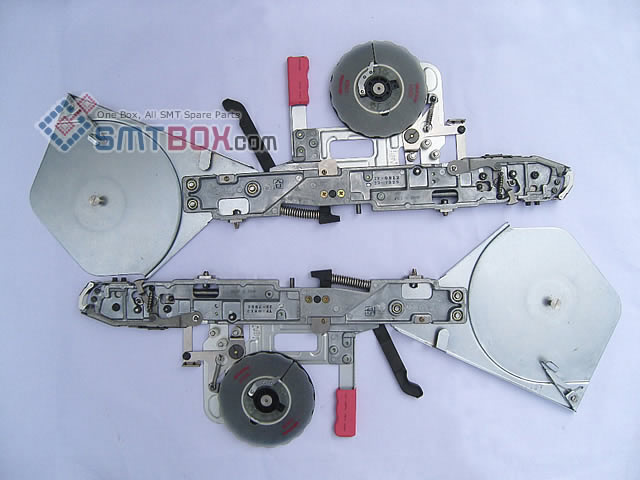

Hitachi/Sanyo TCM-X100 TCM-X200 Universal/UIC HSP4797 SMT TF Tape Feeder
Hitachi Sanyo TF Tape Feeder Model List 8X2mm Paper(0603)
Model Checking List
| Universal | Hitachi/Sanyo |
| 4795 HSP | TCM-3000 |
| 4795S HSP | TCM-3000S |
| 4795Z HSP | TCM-3100 |
| 4796 HSP | TCM-3500 |
| 4796L HSP | TCM-3700 |
| 4796R HSP | TCM-3600J |
| 4797 HSP | TCM-X200 |
| 4797B HSP | TCM-X210 |
| 4797L HSP | TCM-X300 |
| 4797R HSP | TCM-X300S |
| 4797S HSP | TCM-X100J |
| 4797X HSP | TCM-X110J |
| 5588A | GXH-1 |
| 5588B | GXH-1S |
| Part List | FEEDER | REEL HOLDER | TAG ASSY |
|---|---|---|---|
| TF-0809S | TF-0809 | RL-0810S | – |
| TF-0809L | TF-0809 | RL-0810L | – |
| TF-0809TS | TF-0809 | RL-0810S | TX-0809 |
| TF-0809TL | TF-0809 | RL-0810L | TX-0809 |
| TF-0809YS | TF-0809 | RL-0810S | TY-0809 |
| TF-0809YL | TF-0809 | RL-0810L | TY-0809 |
Hitachi Sanyo TF Tape Feeder Model List 8X2mm Paper
| Part List | FEEDER | REEL HOLDER | TAG ASSY |
|---|---|---|---|
| TF-0810S | TF-0810 | RL-0810S | – |
| TF-0810L | TF-0810 | RL-0810L | – |
| TF-0810TS | TF-0810 | RL-0810S | TX-0810 |
| TF-0810TL | TF-0810 | RL-0810L | TX-0810 |
| TF-0810YS | TF-0810 | RL-0810S | TY-0810 |
| TF-0810YL | TF-0810 | RL-0810L | TY-0810 |
Hitachi Sanyo TF Tape Feeder Model List 8X2 Embossed
| Part List | FEEDER | REEL HOLDER | TAG ASSY |
|---|---|---|---|
| TF-0811S | TF-0811 | RL-0810S | – |
| TF-0811L | TF-0811 | RL-0810L | – |
| TF-0811TS | TF-0811 | RL-0810S | TX-0811 |
| TF-0811TL | TF-0811 | RL-0810L | TX-0811 |
| TF-0811YS | TF-0811 | RL-0810S | TY-0811 |
| TF-0811YL | TF-0811 | RL-0810L | TY-0811 |
Hitachi Sanyo TF Tape Feeder Model List 8X2 Paper(0603)
| Part List | FEEDER | REEL HOLDER | TAG ASSY |
|---|---|---|---|
| TF-0829S | TF-0829 | RL-0810S | – |
| TF-0829L | TF-0829 | RL-0810L | – |
| TF-0829YS | TF-0829 | RL-0810S | TY-0829 |
| TF-0829YL | TF-0829 | RL-0810L | TY-0829 |
Hitachi Sanyo TF Tape Feeder Model List 8X2 Paper
| Part List | FEEDER | REEL HOLDER | TAG ASSY |
|---|---|---|---|
| TF-0830S | TF-0830 | RL-0810S | – |
| TF-0830L | TF-0830 | RL-0810L | – |
| TF-0830YS | TF-0830 | RL-0810S | TY-0830 |
| TF-0830YL | TF-0830 | RL-0810L | TY-0830 |
Hitachi Sanyo TF Tape Feeder Model List 8X2 Embossed
| Part List | FEEDER | REEL HOLDER | TAG ASSY |
|---|---|---|---|
| TF-0831S | TF-0831 | RL-0810S | – |
| TF-0831L | TF-0831 | RL-0810L | – |
| TF-0831YS | TF-0831 | RL-0810S | TY-0831 |
| TF-0831YL | TF-0831 | RL-0810L | TY-0831 |
Hitachi Sanyo TF Tape Feeder Model List 8X4 Paper
| Part List | FEEDER | REEL HOLDER | TAG ASSY |
|---|---|---|---|
| TF-0812S | TF-0812 | RL-0810S | – |
| TF-0812L | TF-0812 | RL-0810L | – |
| TF-0812TS | TF-0812 | RL-0810S | TX-0812 |
| TF-0812TL | TF-0812 | RL-0810L | TX-0812 |
| TF-0812YS | TF-0812 | RL-0810S | TY-0812 |
| TF-0812YL | TF-0812 | RL-0810L | TY-0812 |
Hitachi Sanyo TF Tape Feeder Model List 8X4 Embossed
| Part List | FEEDER | REEL HOLDER | TAG ASSY |
|---|---|---|---|
| TF-0813S | TF-0813 | RL-0810S | – |
| TF-0813L | TF-0813 | RL-0810L | – |
| TF-0813TS | TF-0813 | RL-0810S | TX-0813 |
| TF-0813TL | TF-0813 | RL-0810L | TX-0813 |
| TF-0813YS | TF-0813 | RL-0810S | TY-0813 |
| TF-0813YL | TF-0813 | RL-0810L | TY-0813 |
Hitachi Sanyo TF Tape Feeder Model List 8X4 Paper
| Part List | FEEDER | REEL HOLDER | TAG ASSY |
|---|---|---|---|
| TF-0832S | TF-0832 | RL-0810S | – |
| TF-0832L | TF-0832 | RL-0810L | – |
| TF-0832YS | TF-0832 | RL-0810S | TY-0832 |
| TF-0832YL | TF-0832 | RL-0810L | TY-0832 |
Hitachi Sanyo TF Tape Feeder Model List 8X4 Embossed
| Part List | FEEDER | REEL HOLDER | TAG ASSY |
|---|---|---|---|
| TF-0833S | TF-0833 | RL-0810S | – |
| TF-0833L | TF-0833 | RL-0810L | – |
| TF-0833YS | TF-0833 | RL-0810S | TY-0833 |
| TF-0833YL | TF-0833 | RL-0810L | TY-0833 |
Hitachi Sanyo TF Tape Feeder Model List 8X8 Embossed
| Part List | FEEDER | REEL HOLDER | TAG ASSY |
|---|---|---|---|
| TF-0814S | TF-0814 | RL-0810S | – |
| TF-0814L | TF-0814 | RL-0810L | – |
| TF-0814TS | TF-0814 | RL-0810S | TX-0814 |
| TF-0814TL | TF-0814 | RL-0810L | TX-0814 |
| TF-0814YS | TF-0814 | RL-0810S | TY-0814 |
| TF-0814YL | TF-0814 | RL-0810L | TY-0814 |
Hitachi Sanyo TF Tape Feeder Model List 12X4 Embossed
| Part List | FEEDER | REEL HOLDER | TAG ASSY |
|---|---|---|---|
| TF-1210S | TF-1210 | RL-1210S | – |
| TF-1210L | TF-1210 | RL-1210L | – |
| TF-1210TS | TF-1210 | RL-1210S | TX-1210 |
| TF-1210TL | TF-1210 | RL-1210L | TX-1210 |
| TF-1210YS | TF-1210 | RL-1210S | TY-1210 |
| TF-1210YL | TF-1210 | RL-1210L | TY-1210 |
Hitachi Sanyo TF Tape Feeder Model List 12X8 Embossed
| Part List | FEEDER | REEL HOLDER | TAG ASSY |
|---|---|---|---|
| TF-1211S | TF-1211 | RL-1210S | – |
| TF-1211L | TF-1211 | RL-1210L | – |
| TF-1211TS | TF-1211 | RL-1210S | TX-1211 |
| TF-1211TL | TF-1211 | RL-1210L | TX-1211 |
| TF-1211YS | TF-1211 | RL-1210S | TY-1211 |
| TF-1211YL | TF-1211 | RL-1210L | TY-1211 |
Hitachi Sanyo TF Tape Feeder Model List 12X12 Embossed
| Part List | FEEDER | REEL HOLDER | TAG ASSY |
|---|---|---|---|
| TF-1212S | TF-1212 | RL-1210S | – |
| TF-1212L | TF-1212 | RL-1210L | – |
| TF-1212TS | TF-1212 | RL-1210S | TX-1212 |
| TF-1212TL | TF-1212 | RL-1210L | TX-1212 |
| TF-1212YS | TF-1212 | RL-1210S | TY-1212 |
| TF-1212YL | TF-1212 | RL-1210L | TY-1212 |
Hitachi Sanyo TF Tape Feeder Model List 16X4,8,12,16 Embossed
| Part List | FEEDER | REEL HOLDER | TAG ASSY |
|---|---|---|---|
| TF-1610L | TF-1610 | RL-1610L | – |
| TF-1610TL | TF-1610 | RL-1610L | TX-1610 |
| TF-1610YL | TF-1610 | RL-1610L | TY-1610 |
Hitachi Sanyo TF Tape Feeder Model List 24X8,12,16 Embossed
| Part List | FEEDER | REEL HOLDER | TAG ASSY |
|---|---|---|---|
| TF-2410L | TF-2410 | RL-2410L | – |
| TF-2410TL | TF-2410 | RL-2410L | TX-2410 |
| TF-2410YL | TF-2410 | RL-2410L | TY-2410 |
Hitachi Sanyo TF Tape Feeder Model List 24X24 Embossed(twiceshift)
| Part List | FEEDER | REEL HOLDER | TAG ASSY |
|---|---|---|---|
| TF-2411L | TF-2411 | RL-2410L | |
| TF-2411TL | TF-2411 | RL-2410L | TX-2411 |
| TF-2411YL | TF-2411 | RL-2410L | TY-2411 |
Hitachi Sanyo TF Tape Feeder Model List 32X12,16 Embossed
| Part List | FEEDER | REEL HOLDER | TAG ASSY |
|---|---|---|---|
| TF-3210L | TF-3210 | RL-3210L | – |
| TF-3210TL | TF-3210 | RL-3210L | TX-3210 |
| TF-3210YL | TF-3210 | RL-3210L | TY-3210 |
Hitachi Sanyo TF Tape Feeder Model List 32X24 Embossed(twiceshift)
| Part List | FEEDER | REEL HOLDER | TAG ASSY |
|---|---|---|---|
| TF-3211L | TF-3211 | RL-3210L | – |
| TF-3211TL | TF-3211 | RL-3210L | TX-3211 |
| TF-3211YL | TF-3211 | RL-3210L | TY-3211 |
Hitachi Sanyo TF Tape Feeder Model List 44X12,16 Embossed
| Part List | FEEDER | REEL HOLDER | TAG ASSY |
|---|---|---|---|
| TF-4410L | TF-4410 | RL-4410L | – |
| TF-4410TL | TF-4410 | RL-4410L | TX-4410 |
| TF-4410YL | TF-4410 | RL-4410L | TY-4410 |
Hitachi Sanyo TF Tape Feeder Model List 44X24,32 Embossed(twiceshift)
| Part List | FEEDER | REEL HOLDER | TAG ASSY |
|---|---|---|---|
| TF-4411L | TF-4411 | RL-4410L | – |
| TF-4411TL | TF-4411 | RL-4410L | TX-4411 |
| TF-4411YL | TF-4411 | RL-4410L | TY-4411 |
The Hitachi/Sanyo TCM-X100 TCM-X200 Universal/UIC HSP4797 TF0812 8*4mm Paper Feeder (SKU: TF-0812) is a premium-grade SMT spare component manufactured for high-speed pick and place machines. Designed for maximum durability and precision, this part is part of our extensive Hitachi SMD Feeders, Hitachi SMT Spare Parts, Sanyo SMD Spare Parts, Sanyo SMT Feeders, SMD Feeders Sort by Size, SMD Paper Feeders, SMT Feeders – 8x4mm W8P4, SMT Feeders Sort by Type, Universal Instrument SMD Feeders, Universal SMT Spares,UIC THT Parts inventory. It ensures seamless integration and high efficiency on active PCB assembly lines.
How to use Hitachi/Sanyo TCM-X100 TCM-X200 Universal/UIC HSP4797 TF0812 8*4mm Paper Feeder?
For optimal performance and durability, this component should be installed and calibrated by a certified SMT maintenance engineer. Regularly check the alignment, wear patterns, and vacuum suction parameters (for nozzles) to prevent component mispicks and ensure high assembly yields.
- Power down your mounter and disconnect the vacuum line.
- Clean the nozzle shaft or feeder mounting slot with ESD-safe cleaning alcohol.
- Carefully align the new component and tighten to the manufacturer's torque specifications.
- Perform a test cycle and verify the component alignment using mounter diagnostics before resuming full production.
