Yamaha YS YG series Mounter Adjustment Tools KHY-M88C0-00

SMT Machines: YS12 YS12F YS12P YS24 YS24X YS100 YS88 YG12 YG12F and others.

Part No: KHY-M88C0-00.

Parts list designation: ADJUST TOOL KIT YS.

Quantity: 1 set.

Purpose: Used for periodic inspection and adjustment of the machine’s mounting accuracies.

To use: Applicable also for previous YG and Xg series machines.

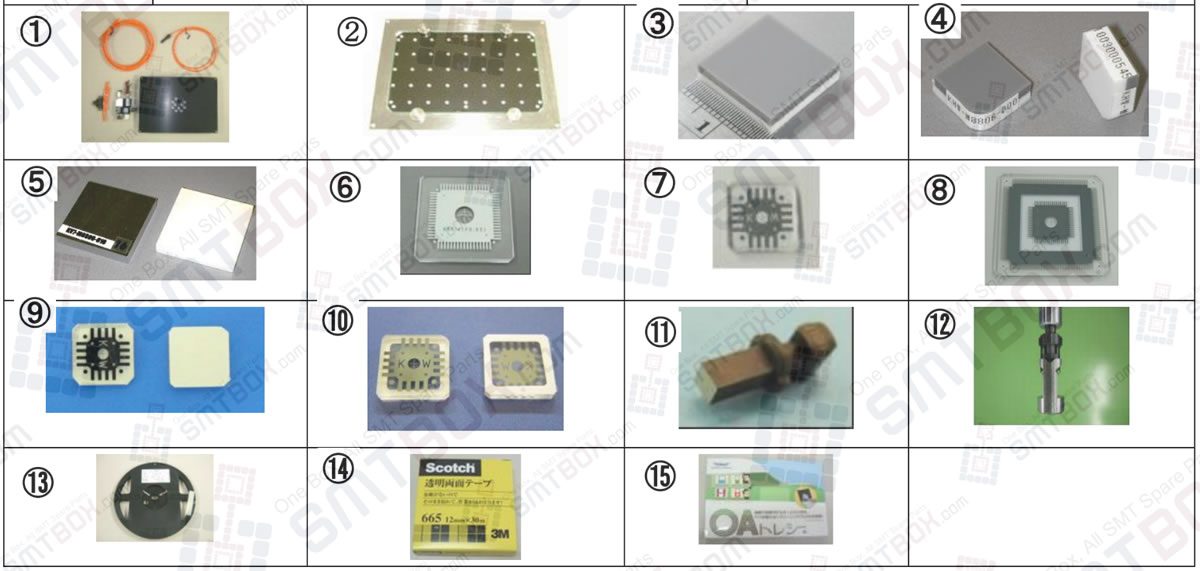

Set ADJUST TOOL KIT YS KHY-M88C0-00 1 set Tool set in an exclusive case

#1. Part Name: Famf Station Assebly | P/N: KGA-M88F0-A0 | Qty: 1 | FAMF station

#2. Part Name: Glass Pcb Assebly 4 | P/N: KM0-M8810-41 | Qty: 1 | ACP glass board

#3. Part Name: Light Adj. S Assy | P/N: KHW-M8806-B0 | Qty: 1 | 17mm diameter light adjustment jig

#4. Part Name: Light Adj.4 Assy | P/N: KHW-M8806-D0 | Qty: 1 | 11mm diameter light adjustment jig

#5. Part Name: Light Aduuster 2 | P/N: KHW-M8807-00 | Qty: 1 | 32mm diameter opaque white light adjustment jig

#6. Part Name: Glass Qfp 68P | P/N: KW8-M880A-10 | Qty: 5 | Glass QFP 68 pin

#7. Part Name: Glass Qfp 16P | P/N: KW8-M880A-00 | Qty: 5 | Glass QFP 16 pin (without sticker)

#8. Part Name: Glass Qfp 2S | P/N: KM0-M880A-20 | Qty: 5 | Glass QFP 208 pin (with sticker)

#9. Part Name: Glass Qfp 16 Assy | P/N: KHY-M880A-00 | Qty: 5 | Glass QFP 16 pin (with full-size sticker)

#10. Part Name: Glass Qfp 16 Assy | P/N: KHY-M880A-10 | Qty: 2 | Glass QFP 16 pin (with peripheral sticker)

#11. Part Name: Jig Nozzle R | P/N: KHN-M88N1-00 | Qty: 1 | 4mm diameter nozzle jig R

#12. Part Name: Tool Leaf Spring | P/N: KGS-M8810-00 | Qty: 1 | Nozzle spring leaf positioning jig

#13. Part Name: Reel Ceramic 1005 | P/N: KGA-M880C-10 | Qty: 1 | 1005 ceramic chip reel (5000)

#14. Part Name: Doublesidetape | P/N: KGK-M88B5-00 | Qty: 2 | Double-sided adhesive tape

#15. Part Name: Oa Toraysee | P/N: KGK-M88B4-00 | Qty: 2 | Glass cleaning cloth
