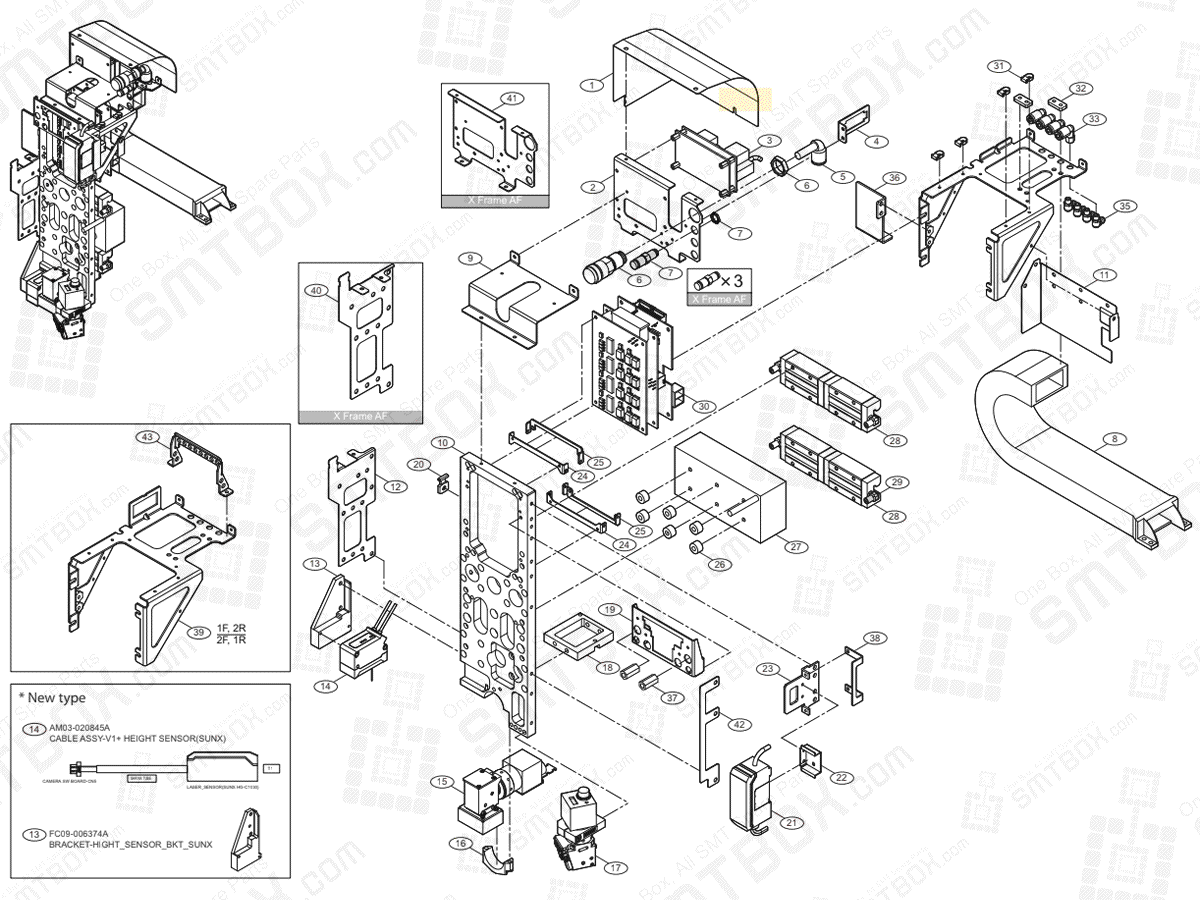

#1. P/N: FC15-001045A | Part name: Cover Sw Board Cover B | Qty: 1
#2. P/N: FC09-001832A | Part name: Bracket Sw Board Bkt B | Qty: 1
#3. P/N: AM03-004534B | Part name: Head Switching Board | Qty: 1 | Remarks: AM03-004534A
#4. P/N: FC09-001827A | Part name: Bracket X Motor Cn Bkt | Qty: 1
#5. P/N: HP06-000239 | Part name: Fitting Kq2L08 99 Elbow One Touch 08 10 | Qty: 1
#6. P/N: FC14-000258 | Part name: Coupler Coupler Kk3S 08E Kk3S 08E | Qty: 1
#7. P/N: FC14-000257 | Part name: Coupler Coupler Kk2S 04E Kk2S 04E | Qty: 1
#8. P/N: EP03-000066 | Part name: Cableveyor X Cableveyor | Qty: 1
#9. P/N: FC15-001043B | Part name: Cover H Amp Top Cover | Qty: 1 | Remarks: FC15-001043A
#10. P/N: FC11-000007A | Part name: Carrier Head Carrier | Qty: 1
#11. P/N: FC15-001047A | Part name: Cover H Amp Cover B | Qty: 1
#12. P/N: FC09-001824A | Part name: Bracket X Scale Cn Bkt B | Qty: 1
#13. P/N: FC09-001878A | Part name: Bracket R Sensor Bkt | Qty: 1
#13. P/N: FC09-006374A | Part name: Bracket Hight Sensor Bkt Sunx | Qty: 1 | Remarks: EXCEN PRO(D)
#14. P/N: AM03-014264A | Part name: Harness V1+ Height Sensor Head Cable | Qty: 1
#14. P/N: AM03-020845A | Part name: Cable Assy V1+ Height Sensor(Sunx) Cable | Qty: 1 | Remarks: EXCEN PRO(D)
#15. P/N: AM03-008136B | Part name: Assy Optics V1P Fiducial Camera Assy | Qty: 1 | Remarks: AM03-008136A
#16. P/N: FC09-001818A | Part name: Bracket Head Camera Fixer | Qty: 1
#17. P/N: AM03-000548B | Part name: Assy Optics V1P Svs Assy | Qty: 1 | Remarks: AM03-000548A
#17. P/N: AM06-002353A | Part name: Assy Pcb Smd Svs Side Led Pcb | Qty: 1
#18. P/N: FC09-001820B | Part name: Bracket X Scale Head Bkt | Qty: 1 | Remarks: FC09-001820A(~#98, ~JULY 2015)
#19. P/N: FC09-004011A | Part name: Bracket Head Drawer Bkt Base | Qty: 1 | Remarks: FC09-001833A
#20. P/N: FC18-903199 | Part name: Anchor Mount Ctam1 M4 | Qty: 2
#21. P/N: AM16-001225A | Part name: Harness V1+ Heght Sensor Amp Cable | Qty: 1 | Remarks: EP06-000208
#22. P/N: FC09-000040 | Part name: Amp Op 76877 Keyence 1 Rm01 000557A
#23. P/N: FC07-000440C | Part name: Sensor Amp Block | Qty: 1 | Remarks: FC07-000440A
#24. P/N: FC09-001834A | Part name: Bracket Head Amp Bkt A | Qty: 2
#25. P/N: FC09-001835A | Part name: Bracket Head Amp Bkt B | Qty: 2
#26. P/N: FC18-003126A | Part name: Washer Flat Washer Fwasa D12.0 V5.0 T7.4 | Qty: 6 | Remarks: FC18-001072
#27. P/N: EP08-000050 | Part name: Motor Electric Linear Motor Core | Qty: 1
#28. P/N: MC13-000142 | Part name: X Lm Guide | Qty: 4
#29. P/N: HP06-900088 | Part name: Fitting M 5Hl 4 | Qty: 4
#30. P/N: AM03-001690E | Part name: Assy Board V1P Head Amp | Qty: 1 | Remarks: AM03-001690C / AM03-001690D
#31. P/N: FC18-903190 | Part name: Profile Mount Dia4.0 | Qty: 4
#32. P/N: FC30-000905A | Part name: Nut Plt | Qty: 2
#33. P/N: HP06-900079 | Part name: Elbow Union Female Kq2Lf04 M6 | Qty: 4
#35. P/N: FC28-000108 | Part name: Nipple Grease Nipple A Mt6X1 | Qty: 4
#36. P/N: FC09-000032A | Part name: Transport Bkt B | Qty: 1
#37. P/N: FC18-003134A | Part name: Drawer Con Fix Spacer | Qty: 2 | Remarks: FC18-001200A
#38. P/N: FC15-004345A | Part name: Sensor Amp Latch | Qty: 1
#39. P/N: FC09-001821B | Part name: Bracket C Veyor Bkt A | Qty: 1 | Remarks: 1F, 2R
#39. P/N: FC09-001822B | Part name: Bracket C Veyor Bkt B | Qty: 1 | Remarks: 2F, 1R
#40. P/N: FC09-001823A | Part name: Bracket X Scale Cn Bkt A | Qty: 1
#41. P/N: FC09-001831A | Part name: Bracket Sw Board Bkt A | Qty: 1
#42. P/N: FC09-004280A | Part name: Bracket X Tube Guide | Qty: 1
#43. P/N: FC09-004279A | Part name: Bracket X Cable Guide | Qty: 1
