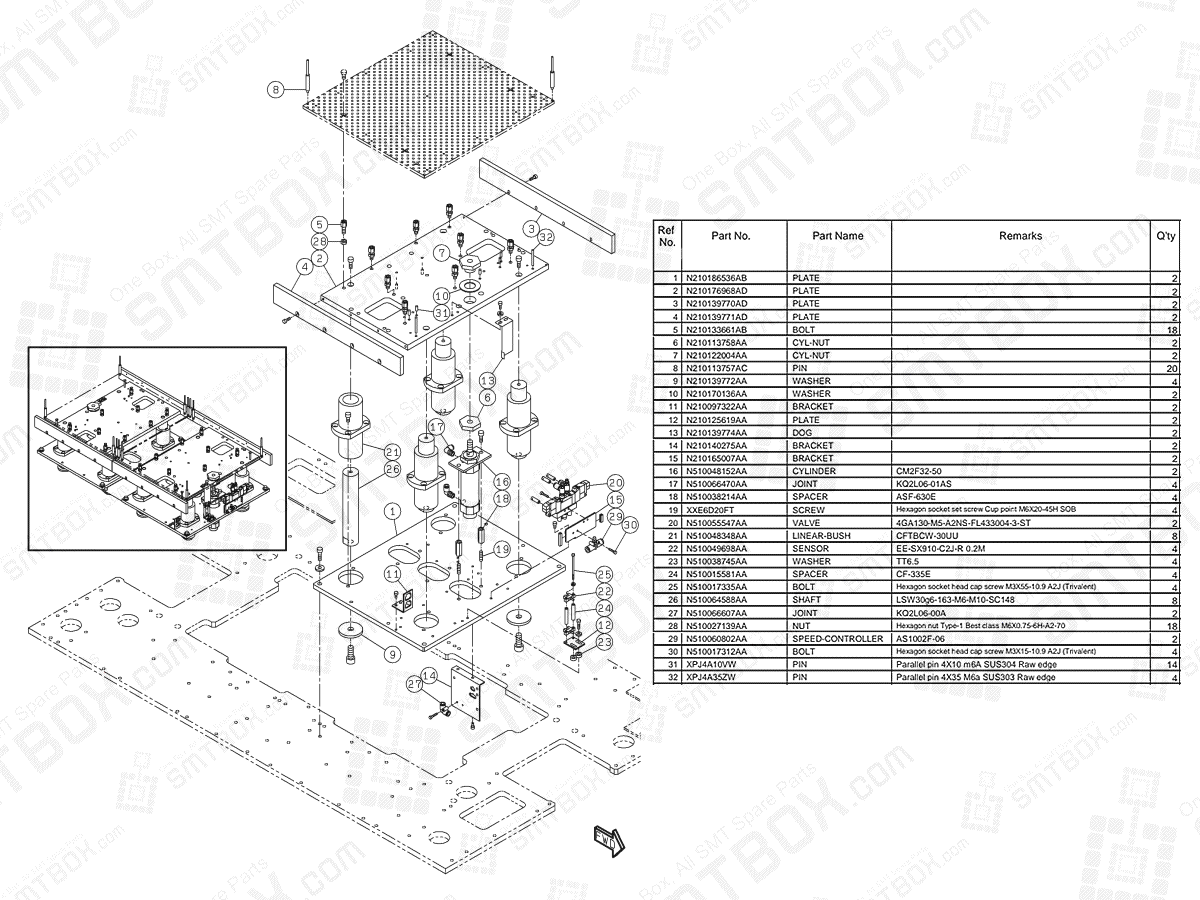

#1. P/N: N210186536AB | Part name: Plate | Qty: 2
#2. P/N: N210176968AD | Part name: Plate | Qty: 2
#3. P/N: N210139770AD | Part name: Plate | Qty: 2
#4. P/N: N210139771AD | Part name: Plate | Qty: 2
#5. P/N: N210133661AB | Part name: Bolt | Qty: 18
#6. P/N: N210113758AA | Part name: Cylindar Nut | Qty: 2
#7. P/N: N210122004AA | Part name: Cylindar Nut | Qty: 2
#8. P/N: N210113757AC | Part name: Pin | Qty: 20
#9. P/N: N210139772AA | Part name: Washer | Qty: 4
#10. P/N: N210170136AA | Part name: Washer | Qty: 2
#11. P/N: N210097322AA | Part name: Bracket | Qty: 2
#12. P/N: N210125619AA | Part name: Plate | Qty: 2
#13. P/N: N210139774AA | Part name: Dog | Qty: 2
#14. P/N: N210140275AA | Part name: Bracket | Qty: 2
#15. P/N: N210165007AA | Part name: Bracket | Qty: 2
#16. P/N: N510048152AA | Part name: Cylinder Remarks: CM2F32-50 | Qty: 2
#17. P/N: N510066470AA | Part name: Joint Remarks: KQ2L06-01AS | Qty: 4
#18. P/N: N510038214AA | Part name: Spacer Remarks: ASF-630E | Qty: 4
#19. P/N: XXE6D20FT | Part name: Screw Remarks: Hexagon socket set screw Cup point M6X20-45H SOB | Qty: 4
#20. P/N: N510055547AA | Part name: Valve Remarks: 4GA130-M5-A2NS-FL433004-3-ST | Qty: 2
#21. P/N: N510048348AA | Part name: Linear Bush Remarks: CFTBCW-30UU | Qty: 8
#22. P/N: N510049698AA | Part name: Sensor Remarks: EE-SX910-C2J-R 0.2M | Qty: 4
#23. P/N: N510038745AA | Part name: Washer Remarks: TT6.5 | Qty: 4
#24. P/N: N510015581AA | Part name: Spacer Remarks: CF-335E | Qty: 4
#25. P/N: N510017335AA | Part name: Bolt Remarks: Hexagon socket head cap screw M3X55-10.9 A2J (Trivalent) | Qty: 4
#26. P/N: N510064588AA | Part name: Shaft Remarks: LSW30g6-163-M6-M10-SC148 | Qty: 8
#27. P/N: N510066607AA | Part name: Joint Remarks: KQ2L06-00A | Qty: 2
#28. P/N: N510027139AA | Part name: Nut Remarks: Hexagon nut Type-1 Best class M6X0.75-6H-A2-70 | Qty: 18
#29. P/N: N510060802AA | Part name: Speed Controller Remarks: AS1002F-06 | Qty: 2
#30. P/N: N510017312AA | Part name: Bolt Remarks: Hexagon socket head cap screw M3X15-10.9 A2J (Trivalent) | Qty: 4
#31. P/N: XPJ4A10VW | Part name: Pin Remarks: Parallel pin 4X10 m6A SUS304 Raw edge | Qty: 14
#32. P/N: XPJ4A35ZW | Part name: Pin Remarks: Parallel pin 4X35 M6a SUS303 Raw edge | Qty: 4
#1. P/N: N210139775AA | Part name: Cover | Qty: 1
