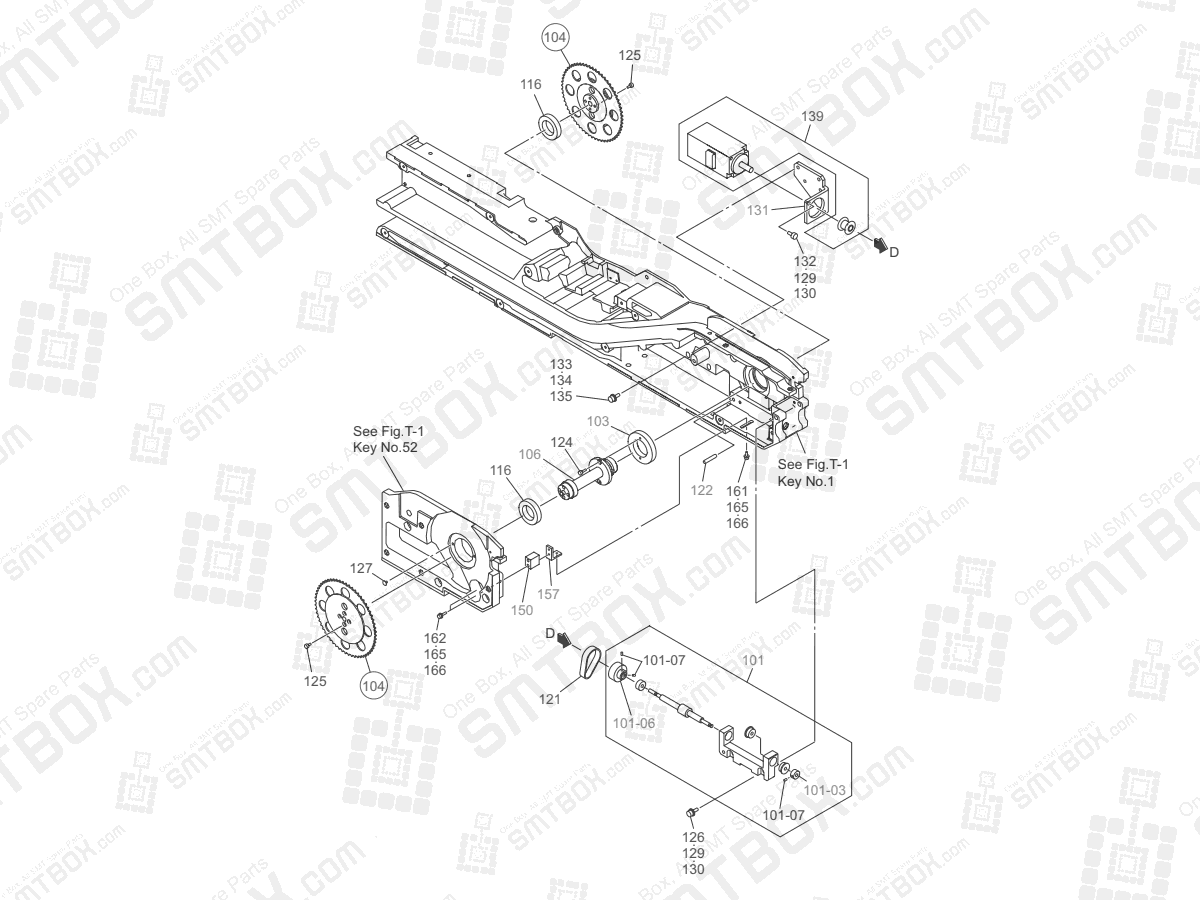

Tape Driving Section on Hitachi Yamaha SMT Tape Feeder 72mm GT-72001B GD-72001B

#101 P/N: 630 155 5652 | Assy Gear((Worm))

#101-03 P/N: 630 144 3935 | Collar(Bearing)

#101-06 P/N: 630 144 3942 | Pulley Timing

#101-07 P/N: 630 126 8248 | Set Screw(Set Screw) M2X3 Set

#103. P/N: 630 148 4556 | Gear

#104. P/N: 630 155 6246 | Assy Sprocket

#106. P/N: 630 149 0823 | Pin Hinge

#116. P/N: 630 130 2508 | Bearing Radial 6802Zz

#121. P/N: 630 127 9190 | Belt Timing

#122. P/N: 630 126 5988 | Pin Locate

#124. P/N: 630 000 7503 | Bolt Hex-Sct M3X6

#125. P/N: 630 000 7510 | Bolt Hex-Sct M3X8

#126. P/N: 630 000 7527 | Bolt Hex-Sct M3X10

#127. P/N: 630 133 0310 | Machine Screw

#129. P/N: 411 141 2806 | Washer Spr

#130. P/N: 411 141 3902 | Washer V 3X7X0.5

#131. P/N: 630 127 9244 | Bracket

#132. P/N: 630 070 1906 | Bolt Hex-Sct(Button Head) M3X8 Bottan

#133. P/N: 630 000 7619 | Bolt Hex-Sct M4X8

#134. P/N: 411 141 2905 | Washer Spr

#135. P/N: 411 141 4008 | Washer V 4X9X0.8

#139. P/N: 630 154 9798 | Assy Motor Ac-Servo

#150. P/N: 630 134 0319 | Spacer

#157. P/N: 630 130 4892 | Bracket

#161. P/N: 630 000 7510 | Bolt Hex-Sct M3X8

#162. P/N: 630 000 7572 | Bolt Hex-Sct M3X25

#165. P/N: 411 141 2806 | Washer Spr

#166. P/N: 411 141 3902 | Washer V 3X7X0.5
