EXPLODED ILLUSTRATION Hanwha Samsung Techwin SM DECAN Series V Feeder F.A.S.T. 8mm Auto Loading Auto Splicing Smart Electric Feeder PN MF2-1205/CO is below:

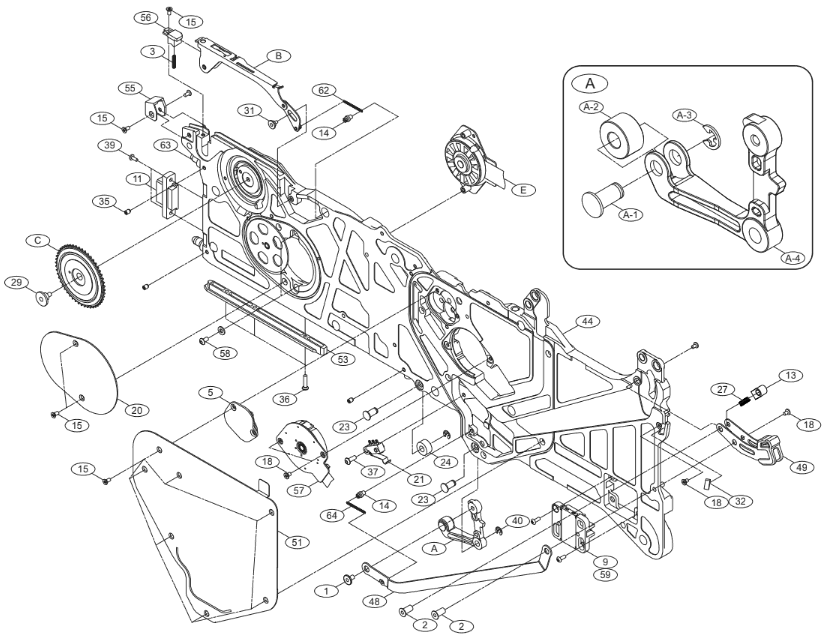

EXPLODED ILLUSTRATION Hanwha Samsung Techwin SM DECAN Series V Feeder F.A.S.T. 8mm Auto Loading Auto Splicing Smart Electric Feeder PN MF2-1205/CO-part1

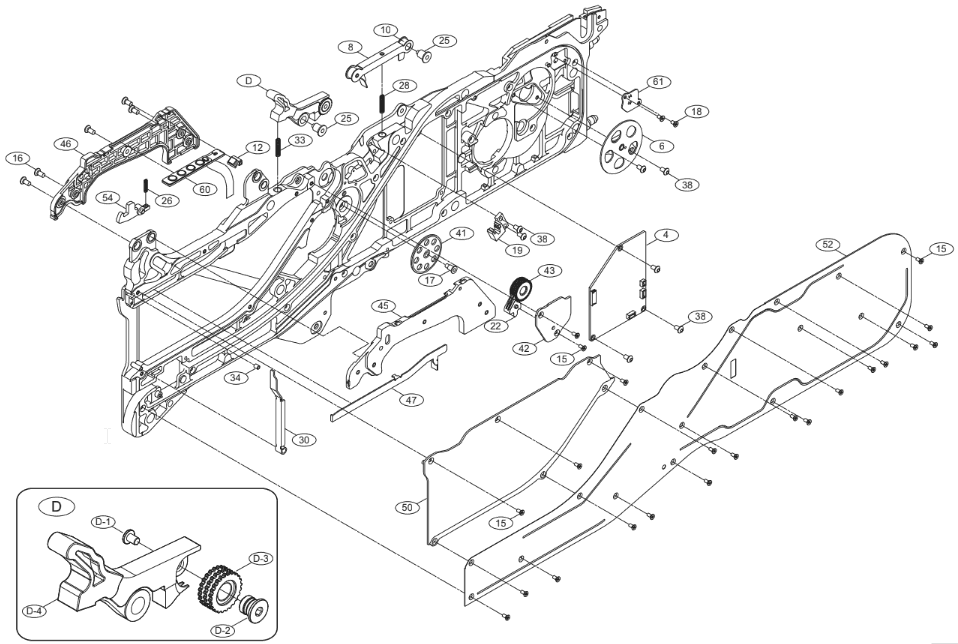

EXPLODED ILLUSTRATION Hanwha Samsung Techwin SM DECAN Series V Feeder F.A.S.T. 8mm Auto Loading Auto Splicing Smart Electric Feeder PN MF2-1205/CO part2

#A P/N: AM03-001557A | Part Name: CLAMP V ASSY | Qty: 1

#A-1 P/N: J70653554A | Part Name: CLAMP BLOCK SHAFT | Qty: 1

#A-2 P/N: J70653553A | Part Name: CLAMPING ROLLER | Qty: 1

#A-3 P/N: J1301023 | Part Name: E RING(3) | Qty: 1

#A-4 P/N: FC07-000294A | Part Name: CLAMP BLOCK | Qty: 1

#B P/N: AM03-001556A | Part Name: TAPE GUIDE V 08 ASSY | Qty: 1

#C P/N: AM03-001559A | Part Name: SPROCKET V 08 ASSY | Qty: 1

#D P/N: AM03-001558A | Part Name: DRAIN HANDLE V 08 ASSY | Qty: 1

#D-1 P/N: J70653926A | Part Name: PAN CAP SCREW M25L35 | Qty: 1

#D-2 P/N: J70653564A | Part Name: DRAIN F GEAR SHAFT | Qty: 1

#D-3 P/N: GD03-000036A | Part Name: DRAIN GEAR | Qty: 1

#D-4 P/N: FC24-000012A | Part Name: DRAIN HANDLE | Qty: 1

#E P/N: AM03-001569A | Part Name: INDEX MOTOR ASSY V8 | Qty: 1

#1 P/N: MC19-000174A | Part Name: CLAMP LINK SHAFT1 | Qty: 1

#2 P/N: MC19-000155A | Part Name: CLAMP LEVER SHAFT | Qty: 2

#3 P/N: FC38-000025A | Part Name: TAPE GUIDE FRONT SPRING | Qty: 1

#4 P/N: J91741316A | Part Name: SMV FEEDER MAIN BOARD 1

#5 P/N: J90652111A | Part Name: D-GEARTRAIN M 08 ASSY | Qty: 1

#6 P/N: J90652102A | Part Name: SECOND GEAR M 08 ASSY 1

#7 P/N: FC38-000026A | Part Name: TAPE GUIDE REAR SPRING | Qty: 2

#8 P/N: J90652099A | Part Name: D-TENSIONER M 08 ASSY | Qty: 1

#9 P/N: AM03-001563A | Part Name: V 8MM SPLICING OPTION | Qty: 1

#10 P/N: J72651198A | Part Name: D-TENSIONER ROLLER | Qty: 1

#11 P/N: AM03-000618A | Part Name: MAIN CONNECTOR HARNESS ASSY V8 | Qty: 1

#12 P/N: J71651465A | Part Name: MAIN LED LIGHT | Qty: 1

#13 P/N: J70661257A | Part Name: SPRING HOLDER | Qty: 1

#14 P/N: J70661204A | Part Name: LOCKER SPG SHAFT | Qty: 2

#15 P/N: J7066047A | Part Name: FLAT HEAD CAP SCREW H4.4 | Qty: 34

#16 P/N: J70653940A | Part Name: FLAT TAPPING SCREW 3X7-2 | Qty: 5

#17 P/N: J70653933A | Part Name: D-STAGE GEAR SHAFT | Qty: 1

#18 P/N: J70653926A | Part Name: PAN CAP SCREW M25L35 | Qty: 7

#19 P/N: AM03-000621A | Part Name: DRAIN SENSOR HARNESS ASSY V8 | Qty: 1

#20 P/N: J70653699A | Part Name: MOTOR COVER M 08 | Qty: 1

#21 P/N: AM03-000622A | Part Name: CLAMP SWITCH HARNESS ASSY V8 | Qty: 1

#22 P/N: J70653565A | Part Name: DRAIN GEAR FORK | Qty: 1

#23 P/N: J70653554A | Part Name: CLAMP BLOCK SHAFT | Qty: 2

#24 P/N: J70653553A | Part Name: CLAMPING ROLLER | Qty: 1

#25 P/N: J70653552A | Part Name: D-TENSIONER HINGE | Qty: 2

#26 P/N: J70661295A | Part Name: CLAMP HOOK SPRING | Qty: 1

#27 P/N: J70661293A | Part Name: CLAMPING SPRING | Qty: 1

#28 P/N: J70653761A | Part Name: D-TENSIONER SPRING | Qty: 1

#29 P/N: J70653541A | Part Name: SPROCKET SHAFT 1

#30 P/N: J70652840A | Part Name: D-BOX DOOR | Qty: 1

#31 P/N: J70652830A | Part Name: FLANGED SHAFT | Qty: 1

#32 P/N: J70652749A | Part Name: VINYL CUTTER | Qty: 1

#33 P/N: GD03-000046A | Part Name: D-FOLLOWER SPRING | Qty: 1

#34 P/N: J64091017A | Part Name: MAGNET | Qty: 1

#35 P/N: J6010300438 | Part Name: SOCKET SET SCREW | Qty: 3

#36 P/N: FC18-000693 | Part Name: FLAT HEAD CAP SCREW | Qty: 3

#37 P/N: J6005300838 | Part Name: BUTTON HEAD SOCKET SCREW | Qty: 1

#38 P/N: J6005300538 | Part Name: BUTTON HEAD SOCKET SCREW | Qty: 7

#39 P/N: J6004250650 | Part Name: BUTTON HEAD CAP SCREW | Qty: 4

#40 P/N: J1301023 | Part Name: E RING(3) | Qty: 2

#41 P/N: GD03-000049A | Part Name: D-STAGE GEAR1 | Qty: 1

#42 P/N: GD03-000041A | Part Name: DRAIN COVER 08 | Qty: 1

#43 P/N: GD03-000037A | Part Name: DRAIN GEAR-1 | Qty: 1

#44 P/N: FC39-000311A | Part Name: MAIN BODY 08 | Qty: 1

#45 P/N: FC29-000680A | Part Name: HANDLE RIGHT | Qty: 1

#46 P/N: FC29-000679A | Part Name: HANDLE LEFT | Qty: 1

#47 P/N: FC28-000205A | Part Name: D-BOX LEVER | Qty: 1

#48 P/N: FC28-000204A | Part Name: CLAMP LINK | Qty: 1

#49 P/N: FC24-000011A | Part Name: CLAMP LEVER | Qty: 1

#50 P/N: FC15-000535A | Part Name: DRAIN BOX COVER | Qty: 1

#51 P/N: FC15-000534A | Part Name: LEFT COVER | Qty: 1

#52 P/N: FC15-000533A | Part Name: RIGHT COVER | Qty: 1

#53 P/N: FC09-000866A | Part Name: INSTALL GUIDE | Qty: 1

#54 P/N: FC09-000865A | Part Name: CLAMP HOOK | Qty: 1

#55 P/N: FC09-000864A | Part Name: TAPE GUIDE P COVER | Qty: 1

#56 P/N: FC07-000293A | Part Name: T-GUIDE F BLOCK | Qty: 1

#57 P/N: EP08-000052A | Part Name: DRAIN MOTOR | Qty: 1

#58 P/N: FC18-000694 | Part Name: TRUSS HEAD SRCREW | Qty: 2

#59 P/N: AM03-001562A | Part Name: V 8MM NON SPLICING OPTION | Qty: 1

#60 P/N: AM03-001567A | Part Name: UI ASSY V8 | Qty: 1

#61 P/N: AM03-001565A | Part Name: INDEX SENSOR ASSY V8 1

#62 P/N: MC19-000102B | Part Name: V LOC ECCENTRIC PIN | Qty: 1

#63 P/N: FC38-000026B | Part Name: TAPE GUIDE REAR SPRING | Qty: 1

#64 P/N: FC38-000065A | Part Name: CLAMP RETURA SPRING | Qty: 1
