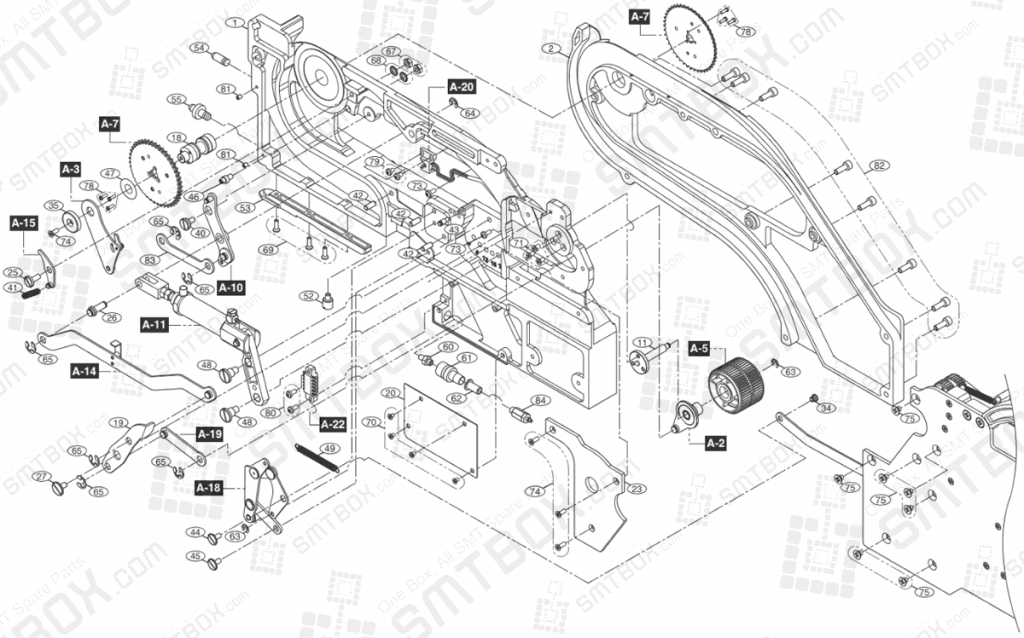

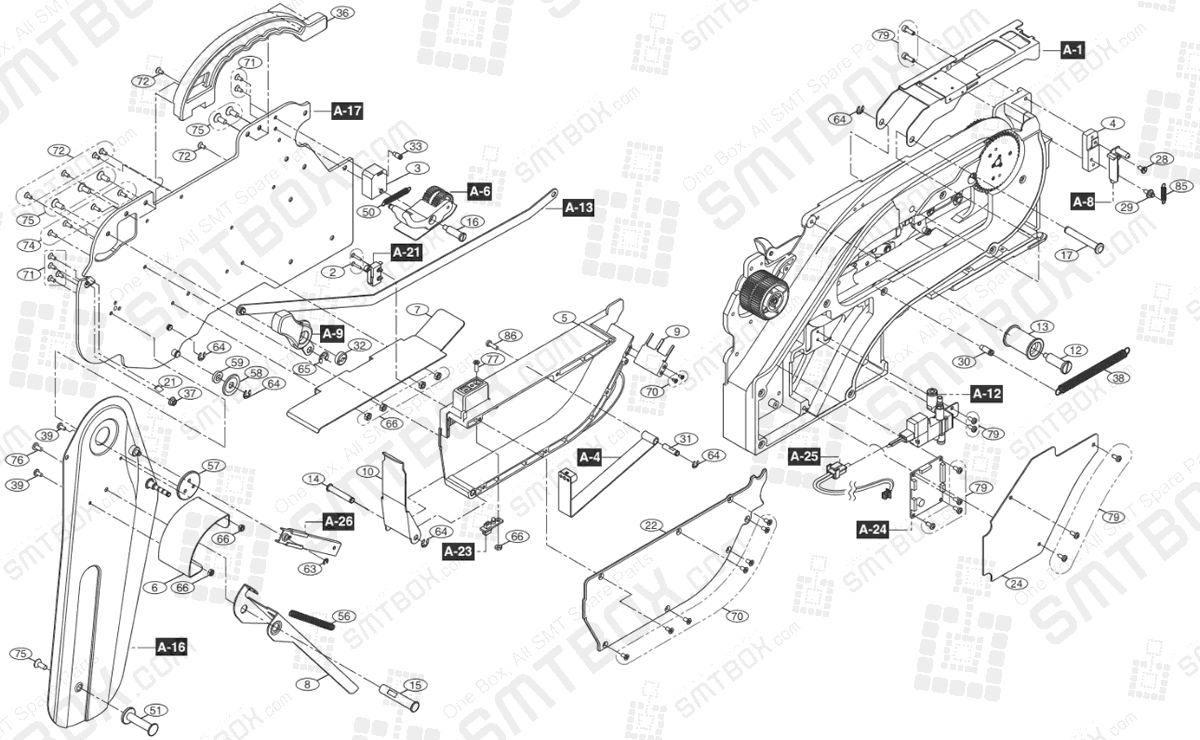

SMN 32mm Pneumatic Tape Feeder For SM/Decan Series
#1. P/N: J71651417A | Main Frame-3288
#2. P/N: J71651418A | Sub Frame-32
#3. P/N: J71651421A | Pressing Gear Mount-32
#4. P/N: J71651426A | Locker Block-32
#5. P/N: J72651164A | Vinyl Box-32
#6. P/N: J70652626A | Round Guide-3244
#7. P/N: J70652648A | Flat Guide-3244
#8. P/N: J70652631A | Reel Brake-3244
#9. P/N: J70652636A | Drain Gear Fork-32
10. P/N: J70652653A | Vinyl Door-32
11. P/N: J70652666A | Drain Gear Post-32
12. P/N: J70652678A | Roller Shaft-2432
13. P/N: J72651176A | Vinyl Rollor-32
14. P/N: J70652682A | Vinyl Door Shaft-32
15. P/N: J70652688A | Reel Brake Shaft-3244
16. P/N: J70652696A | Pressing Lever Shaft-2432
17. P/N: J70652700A | Tape Guide Shaft-32
18. P/N: J70652705A | Sprocket Shaft-32
19. P/N: J70652734A | Manual Lever
20. P/N: J70652739A | Prober Cover
21. P/N: J70652749A | Vinyl Cutter
22. P/N: J72651182A | Vinyl Box Cover
23. P/N: J71651439A | Section Cover
24. P/N: J71651440A | Pcb Cover
25. P/N: J70652710A | Y Eccentric Pin
26. P/N: J70652711A | Cylinder Joint
27. P/N: J70652713A | Manual Lever Shaft
28. P/N: J70652728A | Locker Link Post
29. P/N: J70652717A | Locker Slot Pin
30. P/N: J70652721A | Cylinder Return Spring Post
31. P/N: J70652722A | Magnet Link Shaft
32. P/N: J70652725A | Grip Nut
33. P/N: J70652726A | Pressing Gear Spring Post
34. P/N: J70652727A | T-Link4 Pin
35. P/N: J70652767A | Sprocket Shaft Ring
36. P/N: J72651184A | Handle
37. P/N: J6039300050 | Flange Nut Frsnut3
38. P/N: J61071065A | Feeding Spring Awu8-65
39. P/N: J6119061A | Flat Bolt Cbss 3-6
40. P/N: J70652593A | Lever Shaft 1
41. P/N: J61071054A | Stop Pawl Spring
42. P/N: J70650994B | Toggle Stopper 3
43. P/N: J70650995B | Toggle Spring Pin
44. P/N: J70660001B | T Link4 Shaft1
45. P/N: J70660008B | T Link 1 Shaft
46. P/N: J7066159A | Limit Shaft
47. P/N: J7265159A | Sp Washer
48. P/N: J70652273A | Lever Shaft 2
49. P/N: J7066040A | Toggle Spring
50. P/N: J7066039A | D Lever Spring
51. P/N: J7066176A | Reel Post-32
52. P/N: J7065992B | Bottom Lo Pin
53. P/N: J70650978C | Install Guide
54. P/N: J7065944A | V Loc Pin
55. P/N: J7065948A | Location Flange
56. P/N: J70691006A | Reel Brake Spring
57. P/N: J7066079A | Reel Plate Shaft
58. P/N: J7066315A | Damper Washer
59. P/N: J7265131A | Damper
60. P/N: J6711249A | Coupler Plug
61. P/N: J7066024B | Coupler Bkt1
62. P/N: J7066025A | Coupler Bkt2
63. P/N: J1301023 | E-Ring Dia3 (Sus)
64. P/N: J1301149 | E-Ring Dia4 (Sus)
65. P/N: J1301303 | E-Ring Dia5 (Sus)
66. P/N: J1301266 | Hex Nut M3 (Sus)
67. P/N: J1301304 | Hex Nut M4 (Sus)
68. P/N: J6044400050 | Star Washer M4 (Sus)
69. P/N: J6007301238 | Flat Head Socket Screw M3*12 (Bl/Zn)
70. P/N: J6006254050 | Flat Head Cap Screw M2.5*4 (Sus)
71. P/N: J1301448 | Flat Head Cap Screw M3*6 (Sus)
72. P/N: J2101083 | Flat Head Tapping Screw M3*8
73. P/N: J6012300650 | Truss Screw M3*6 (Sus)
74. P/N: J6006300850 | Flat Head Cap Screw M3*8 (Sus)
75. P/N: J6006400850 | Flat Head Cap Screw M4*8 (Sus)
76. P/N: J6009401250A | Semus Nabe Screw M4*12 (Sus)
77. P/N: J6007300838 | Flat Head Socket Screw M3*8 (Bl/Zn)
78. P/N: J6004200450 | Button Head Cap Screw M2*5 (Sus)
79. P/N: J6004300650 | Button Head Cap Screw M3*6(Sus)
80. P/N: J6004300850 | Button Head Cap Screw M3*8(Sus)
81. P/N: J6010300438 | Socket Set Screw M3*4 (Bl/Zn)
82. P/N: J6004300650 | Button Head Cap Screw M3*6 (Sus)
83. P/N: J70652192A | Link2
84. P/N: J90651490A | Filter Assy
85. P/N: J7066140A | Locker Spring
86. P/N: J6004300850 | Button Head Cap Screw M3*8(Sus)
87. P/N: J6006201050 | Flat Head Cap Screw M2*10
