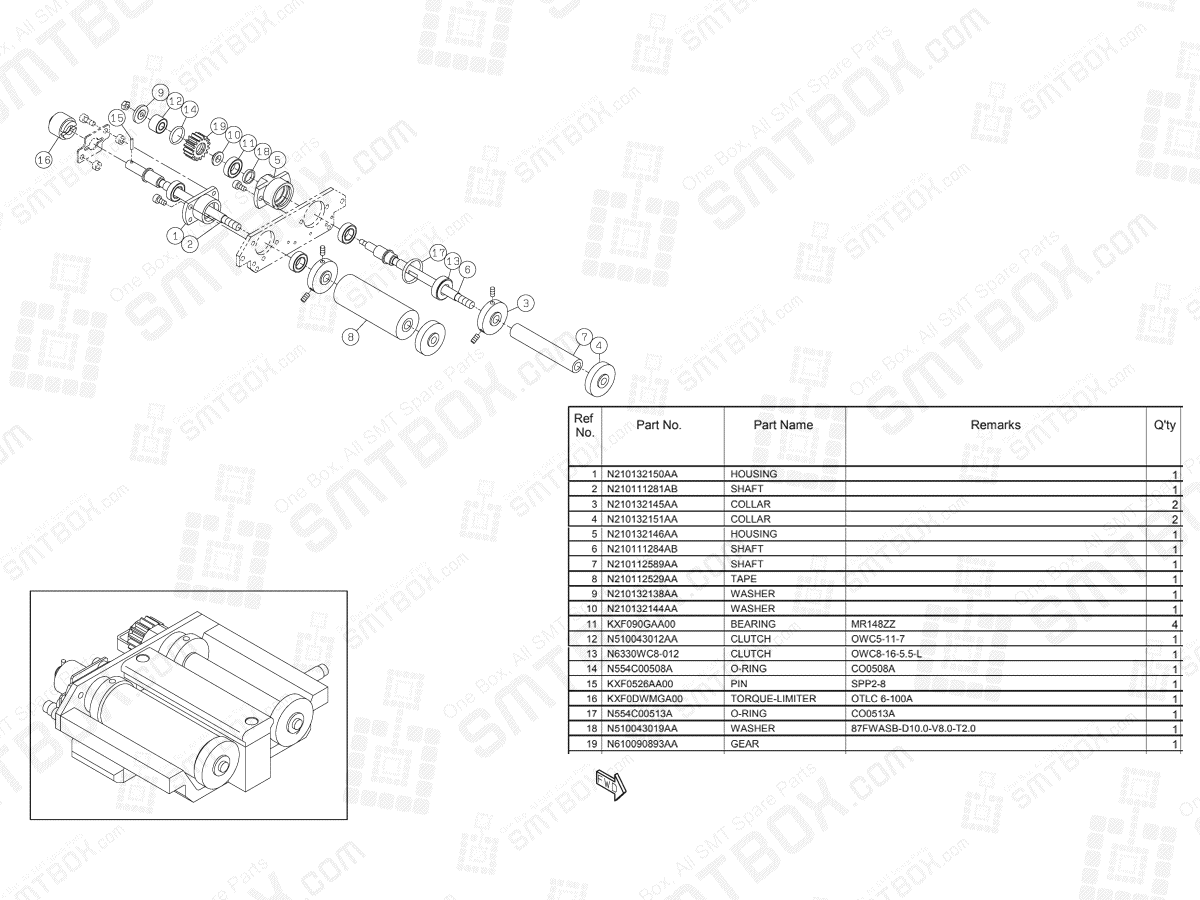

Panasonic NPM Test Dispense Unit (Dispenser Head) N610092665AA KN610092665AA-08-2

Panasonic NPM Test Dispense Unit (Dispenser Head) N610092665AA KN610092665AA-08-2

#1. P/N: N210132150AA | Part name: Housing | Qty: 1

#2. P/N: N210111281AB | Part name: Shaft | Qty: 1

#3. P/N: N210132145AA | Part name: Collar | Qty: 2

#4. P/N: N210132151AA | Part name: Collar | Qty: 2

#5. P/N: N210132146AA | Part name: Housing | Qty: 1

#6. P/N: N210111284AB | Part name: Shaft | Qty: 1

#7. P/N: N210112589AA | Part name: Shaft | Qty: 1

#8. P/N: N210112529AA | Part name: Tape 1

#9. P/N: N210132138AA | Part name: Washer | Qty: 1

#10. P/N: N210132144AA | Part name: Washer | Qty: 1

#11. P/N: KXF090GAA00 | Part name: Bearing | Remarks: MR148ZZ | Qty: 4

#12. P/N: N510043012AA | Part name: Clutch | Remarks: OWC5-11-7 | Qty: 1

#13. P/N: N6330WC8-012 | Part name: Clutch | Remarks: OWC8-16-5.5-L | Qty: 1

#14. P/N: N554C00508A | Part name: O-Ring | Remarks: CO0508A | Qty: 1

#15. P/N: KXF0526AA00 | Part name: Pin | Remarks: SPP2-8 | Qty: 1

#16. P/N: KXF0DWMGA00 | Part name: Torque Limiter | Remarks: OTLC 6-100A | Qty: 1

#17. P/N: N554C00513A | Part name: O-Ring | Remarks: CO0513A | Qty: 1

#18. P/N: N510043019AA | Part name: Washer | Remarks: 87FWASB-D10.0-V8.0-T2.0 | Qty: 1

#19. P/N: N610090893AA | Part name: Gear | Qty: 1
